Represents a Annotations::OrdinateDimension builder
To create a new instance of this class, use Annotations::DimensionCollection::CreateOrdinateDimensionBuilder
Created in NX9.0.0.
More...

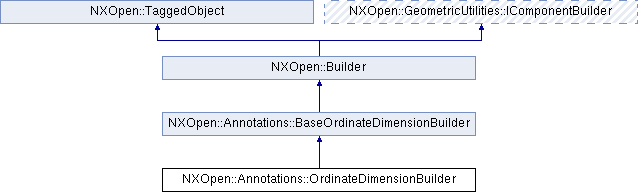

Inheritance diagram for NXOpen::Annotations::OrdinateDimensionBuilder:
Public Member Functions | |
| NXOpen::Annotations::DrivingValueBuilder * | Driving () |
| Returns the driving Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::BaseOrdinateDimensionBuilder | |
| NXOpen::Annotations::OrdinateMargin * | ActiveHorizontalMargin () |
| Returns the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed. | |
| NXOpen::Annotations::OrdinateMargin * | ActiveVerticalMargin () |
| Returns the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed. | |
| bool | AllowDuplicates () |
| Returns the allow duplicates Created in NX9.0.0. | |
| NXOpen::Annotations::AppendedTextBuilder * | AppendedText () |
| Returns the appended text Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObjectList * | AutoAssociativities () |
| Returns the auto ordinate associativities Created in NX9.0.0. | |
| NXOpen::Annotations::OrdinateBaselineBuilder * | Baseline () |
| Returns the baseline Created in NX9.0.0. | |
| NXOpen::Point3d | HorizontalInferredMarginLocation () |
| Returns the horizontal inferred margin location Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | Inherit () |
| Returns the inherit Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | OrdinateOrigin () |
| Returns the ordinate origin Created in NX9.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the origin Created in NX9.0.0. | |
| bool | RespositionExisting () |
| Returns the resposition existing Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | SecondAssociativities () |
| Returns the second associativities Created in NX9.0.0. | |
| void | SetActiveHorizontalMargin (NXOpen::Annotations::OrdinateMargin *margin) |
| Sets the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed. | |
| void | SetActiveVerticalMargin (NXOpen::Annotations::OrdinateMargin *margin) |
| Sets the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed. | |
| void | SetAllowDuplicates (bool allowDuplicates) |
| Sets the allow duplicates Created in NX9.0.0. | |
| void | SetHorizontalInferredMarginLocation (const NXOpen::Point3d &location) |
| Sets the horizontal inferred margin location Created in NX9.0.0. | |
| void | SetRespositionExisting (bool respositionExisting) |
| Sets the resposition existing Created in NX9.0.0. | |
| void | SetType (NXOpen::Annotations::BaseOrdinateDimensionBuilder::Types type) |
| Sets the type Created in NX9.0.0. | |
| void | SetVerticalInferredMarginLocation (const NXOpen::Point3d &location) |
| Sets the vertical inferred margin location Created in NX9.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the style Created in NX9.0.0. | |
| NXOpen::Annotations::BaseOrdinateDimensionBuilder::Types | Type () |
| Returns the type Created in NX9.0.0. | |
| NXOpen::Point3d | VerticalInferredMarginLocation () |
| Returns the vertical inferred margin location Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::Annotations::BaseOrdinateDimensionBuilder | |
| enum | Types { TypesSingleDimension, TypesMultipleDimension } |
| the type of dimension being created More... | |
Detailed Description
Represents a Annotations::OrdinateDimension builder
To create a new instance of this class, use Annotations::DimensionCollection::CreateOrdinateDimensionBuilder
Created in NX9.0.0.
Member Function Documentation
| NXOpen::Annotations::DrivingValueBuilder* NXOpen::Annotations::OrdinateDimensionBuilder::Driving | ( | ) |
Returns the driving
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_OrdinateDimensionBuilder.hxx
