NX Open C++ Reference Guide: NXOpen::Annotations::DraftingDatumFeatureSymbolBuilder Class Reference

datum feature symbol builder
To create a new instance of this class, use Annotations::GdtDatumCollection::CreateDraftingDatumFeatureSymbolBuilder

Created in NX6.0.0. More...

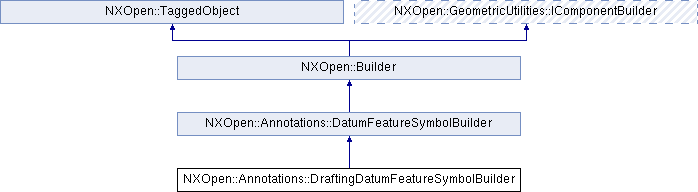

Inheritance diagram for NXOpen::Annotations::DraftingDatumFeatureSymbolBuilder:

Additional Inherited Members
Public Member Functions inherited from NXOpen::Annotations::DatumFeatureSymbolBuilder
void	InheritFrom (NXOpen::Annotations::BaseDatum *inheritTag)
	The datum feature symbol is inherited form the given datum feature symbol.

NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.

NXString	Letter ()
	Returns the datum feature string Created in NX6.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the datum feature symbol origin Created in NX6.0.0.

void	SetLetter (const NXString &datumFeatureLetter)
	Sets the datum feature string Created in NX6.0.0.

void	SetLetter (const char *datumFeatureLetter)
	Sets the datum feature string Created in NX6.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the datum feature style Created in NX6.0.0.

Detailed Description

datum feature symbol builder
To create a new instance of this class, use Annotations::GdtDatumCollection::CreateDraftingDatumFeatureSymbolBuilder

Created in NX6.0.0.
