NXOpen::Annotations::DatumFeatureSymbolBuilder Class Reference

Represents a Base Datum Feature Symbol Builder for all types of datum feature symbols
This is an abstract class, and cannot be instantiated. More...

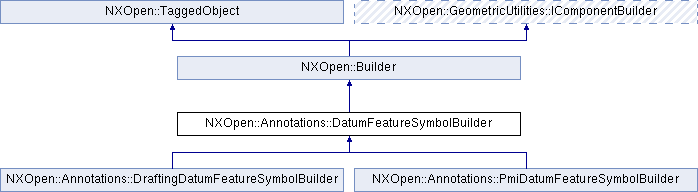

Inheritance diagram for NXOpen::Annotations::DatumFeatureSymbolBuilder:

Public Member Functions
void	InheritFrom (NXOpen::Annotations::BaseDatum *inheritTag)
	The datum feature symbol is inherited form the given datum feature symbol.
NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.
NXString	Letter ()
	Returns the datum feature string Created in NX6.0.0.
NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the datum feature symbol origin Created in NX6.0.0.
void	SetLetter (const NXString &datumFeatureLetter)
	Sets the datum feature string Created in NX6.0.0.
void	SetLetter (const char *datumFeatureLetter)
	Sets the datum feature string Created in NX6.0.0.
NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the datum feature style Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Base Datum Feature Symbol Builder for all types of datum feature symbols
This is an abstract class, and cannot be instantiated.

Created in NX6.0.0.

Member Function Documentation

void NXOpen::Annotations::DatumFeatureSymbolBuilder::InheritFrom

(

NXOpen::Annotations::BaseDatum *

inheritTag

)

The datum feature symbol is inherited form the given datum feature symbol.

Created in NX8.5.0.

License requirements : None

Parameters

inheritTag

inherittag

NXOpen::Annotations::LeaderBuilder* NXOpen::Annotations::DatumFeatureSymbolBuilder::Leader

(

)

Returns the Annotations::LeaderBuilder for the annotation
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::DatumFeatureSymbolBuilder::Letter

(

)

Returns the datum feature string
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::DatumFeatureSymbolBuilder::Origin

(

)

Returns the datum feature symbol origin
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::DatumFeatureSymbolBuilder::SetLetter

(

const NXString &

datumFeatureLetter

)

Sets the datum feature string
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

datumFeatureLetter

datumfeatureletter

void NXOpen::Annotations::DatumFeatureSymbolBuilder::SetLetter

(

const char *

datumFeatureLetter

)

Sets the datum feature string
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

datumFeatureLetter

datumfeatureletter

NXOpen::Annotations::StyleBuilder* NXOpen::Annotations::DatumFeatureSymbolBuilder::Style

(

)

Returns the datum feature style
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Annotations_DatumFeatureSymbolBuilder.hxx
