Builder for creating 2D Centerline. More...

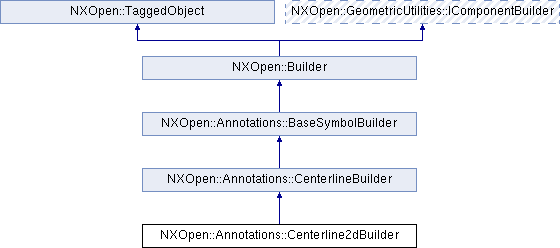

Inheritance diagram for NXOpen::Annotations::Centerline2dBuilder:

Public Types
enum	Offset { OffsetNone, OffsetDistanceMethod, OffsetObjectMethod }
	the valid types of 2D Centerline offset method More...

enum	Types { TypesFromCurves, TypesByPoints }
	the valid types of 2D Centerline, applicable only for creation More...

Public Member Functions
NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit object Created in NX6.0.0.

double	OffsetDistance ()
	Returns the offset distance for centerline by points Created in NX6.0.0.

NXOpen::Annotations::Centerline2dBuilder::Offset	OffsetMethod ()
	Returns the offset method for centerline by points Created in NX6.0.0.

NXOpen::SelectNXObject *	OffsetObject ()
	Returns the offset object for centerline by points Created in NX6.0.0.

NXOpen::SelectNXObject *	Point1 ()
	Returns the point 1 of 2D Centerline for centerline by points Created in NX6.0.0.

NXOpen::SelectNXObject *	Point2 ()
	Returns the point 2 of 2D Centerline for centerline by points Created in NX6.0.0.

void	SetOffsetDistance (double offsetDistance)
	Sets the offset distance for centerline by points Created in NX6.0.0.

void	SetOffsetMethod (NXOpen::Annotations::Centerline2dBuilder::Offset offsetMethod)
	Sets the offset method for centerline by points Created in NX6.0.0.

NXOpen::Annotations::Centerline2dSettingsBuilder *	Settings ()
	Returns the settings builder Created in NX6.0.0.

void	SetType (NXOpen::Annotations::Centerline2dBuilder::Types type)
	Sets the type Created in NX6.0.0.

NXOpen::SelectNXObject *	Side1 ()
	Returns the side 1 of 2D Centerline for centerline from curves Created in NX6.0.0.

NXOpen::SelectNXObject *	Side2 ()
	Returns the side 2 of 2D Centerline for centerline from curves Created in NX6.0.0.

NXOpen::Annotations::Centerline2dBuilder::Types	Type ()
	Returns the type Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.

void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.

std::vector< double >	GetAllExtensions ()
	Returns all extensions.

std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.

std::vector< double >	GetEndExtensions ()
	Returns end extensions only.

void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.

void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.

void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.

void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.

void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.

void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Builder for creating 2D Centerline.

It creates or edits 2D Centerlines
To create a new instance of this class, use Annotations::CenterlineCollection::CreateCenterline2dBuilder
Default values.

Property

Value

OffsetDistance

0

OffsetMethod

None

Settings.Extension

6.35 (millimeters part), 0.25 (inches part)

Settings.Gap

1.5875 (millimeters part), 0.0625 (inches part)

Settings.IndividualDistance

0

Settings.Size

3.175 (millimeters part), 0.125 (inches part)

Settings.Width

Thin

Type

FromCurves

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::Centerline2dBuilder::Offset

the valid types of 2D Centerline offset method

Enumerator:

OffsetNone	no offset
OffsetDistanceMethod	offset distance method
OffsetObjectMethod	offset object method

enum NXOpen::Annotations::Centerline2dBuilder::Types

the valid types of 2D Centerline, applicable only for creation

Enumerator:

TypesFromCurves	centerline from curves
TypesByPoints	centerline by points

Member Function Documentation

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::Inherit ( )

Returns the inherit object
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::Centerline2dBuilder::OffsetDistance ( )

Returns the offset distance for centerline by points
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::Centerline2dBuilder::Offset NXOpen::Annotations::Centerline2dBuilder::OffsetMethod ( )

Returns the offset method for centerline by points
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::OffsetObject ( )

Returns the offset object for centerline by points
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::Point1 ( )

Returns the point 1 of 2D Centerline for centerline by points
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::Point2 ( )

Returns the point 2 of 2D Centerline for centerline by points
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::Centerline2dBuilder::SetOffsetDistance ( double offsetDistance )

Sets the offset distance for centerline by points
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

offsetDistance offsetdistance

void NXOpen::Annotations::Centerline2dBuilder::SetOffsetMethod ( NXOpen::Annotations::Centerline2dBuilder::Offset offsetMethod )

Sets the offset method for centerline by points
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

offsetMethod offsetmethod

NXOpen::Annotations::Centerline2dSettingsBuilder* NXOpen::Annotations::Centerline2dBuilder::Settings ( )

Returns the settings builder
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Annotations::Centerline2dBuilder::SetType ( NXOpen::Annotations::Centerline2dBuilder::Types type )

Sets the type
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

type type

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::Side1 ( )

Returns the side 1 of 2D Centerline for centerline from curves
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline2dBuilder::Side2 ( )

Returns the side 2 of 2D Centerline for centerline from curves
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::Centerline2dBuilder::Types NXOpen::Annotations::Centerline2dBuilder::Type ( )

Returns the type
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_Centerline2dBuilder.hxx
