Represents a ExportWeldBuilder class  <br> To create a new instance of this class, use @link Weld::WeldManager::CreateExportWeldBuilder  Weld::WeldManager::CreateExportWeldBuilder @endlink  <br>

Default values. More...

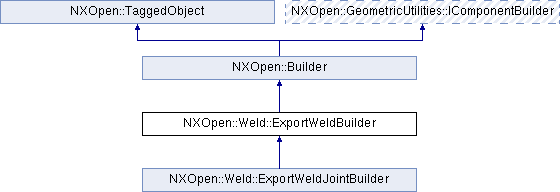

Inheritance diagram for NXOpen::Weld::ExportWeldBuilder:

Public Types
enum	OutputType { OutputTypeIntermediateFile, OutputTypeInformationWindow }
	the Output Type enum More...

Public Member Functions
bool	ConnectedPartAttrToggle ()
	Returns the connected part attribute toggle to control if read connected part attributes from weld points Created in NX6.0.0.

NXString	CsvFileName ()
	Returns the CSV file name Created in NX6.0.0.

std::vector< NXString >	GetConnectedPartAttributes ()
	Get the connected part attributes of weld points.

std::vector< NXString >	GetExportedAttributes ()
	Get the attributes of weld points to be exported to CSV file.

void	OpenFromFile ()
	Open a template file to update exported attributes.

NXOpen::Weld::ExportWeldBuilder::OutputType	Output ()
	Returns the option defining where to write the output data.

void	ReadAttributesFromWelds ()
	Read attributes from selected welds and save to exported attributes and connected part attributes Created in NX6.0.0.

void	RestoreDefault ()
	Restore default template to update exported attributes.

void	SaveAsDefault ()
	Save exported attributes as default template.

void	SaveToFile ()
	Save exported attributes to a template file.

void	SetConnectedPartAttributes (std::vector< NXString > &connectedPartAttributes)
	Set the connected part attributes of weld points Created in NX6.0.0.

void	SetConnectedPartAttrToggle (bool connectedPartAttrToggle)
	Sets the connected part attribute toggle to control if read connected part attributes from weld points Created in NX6.0.0.

void	SetCsvFileName (const NXString &csvFileName)
	Sets the CSV file name Created in NX6.0.0.

void	SetCsvFileName (const char *csvFileName)
	Sets the CSV file name Created in NX6.0.0.

void	SetExportedAttributes (std::vector< NXString > &exportedAttributes)
	Set the attributes of weld points to be exported to CSV file Created in NX6.0.0.

void	SetOutput (NXOpen::Weld::ExportWeldBuilder::OutputType outputType)
	Sets the option defining where to write the output data.

void	SetTemplateFileName (const NXString &templateFileName)
	Sets the template file name Created in NX6.0.0.

void	SetTemplateFileName (const char *templateFileName)
	Sets the template file name Created in NX6.0.0.

NXString	TemplateFileName ()
	Returns the template file name Created in NX6.0.0.

NXOpen::SelectNXObjectList *	WeldPoints ()
	Returns the weld points to be exported to CSV file Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a ExportWeldBuilder class  <br> To create a new instance of this class, use @link Weld::WeldManager::CreateExportWeldBuilder  Weld::WeldManager::CreateExportWeldBuilder @endlink  <br>

Default values.

Property

Value

Output

IntermediateFile

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Weld::ExportWeldBuilder::OutputType

the Output Type enum

Enumerator:

OutputTypeIntermediateFile	intermediate file
OutputTypeInformationWindow	information window

Member Function Documentation

bool NXOpen::Weld::ExportWeldBuilder::ConnectedPartAttrToggle ( )

Returns the connected part attribute toggle to control if read connected part attributes from weld points
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

NXString NXOpen::Weld::ExportWeldBuilder::CsvFileName ( )

Returns the CSV file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

std::vector<NXString> NXOpen::Weld::ExportWeldBuilder::GetConnectedPartAttributes ( )

Get the connected part attributes of weld points.

Returns: Connected part attributes string
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

std::vector<NXString> NXOpen::Weld::ExportWeldBuilder::GetExportedAttributes ( )

Get the attributes of weld points to be exported to CSV file.

Returns: Exported attributes string
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::OpenFromFile ( )

Open a template file to update exported attributes.

Before use it, you must set template file name.
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

NXOpen::Weld::ExportWeldBuilder::OutputType NXOpen::Weld::ExportWeldBuilder::Output ( )

Returns the option defining where to write the output data.

Data will be written to either a comma seperated value file or the output window.
Created in NX9.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::ReadAttributesFromWelds ( )

Read attributes from selected welds and save to exported attributes and connected part attributes
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::RestoreDefault ( )

Restore default template to update exported attributes.

Before use it, you must set template file name.
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::SaveAsDefault ( )

Save exported attributes as default template.

Before use it, you must set template file name.
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::SaveToFile ( )

Save exported attributes to a template file.

Before use it, you must set template file name.
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

void NXOpen::Weld::ExportWeldBuilder::SetConnectedPartAttributes ( std::vector< NXString > & connectedPartAttributes )

Set the connected part attributes of weld points
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

connectedPartAttributes Connected part attributes string
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Weld::ExportWeldBuilder::SetConnectedPartAttrToggle ( bool connectedPartAttrToggle )

Sets the connected part attribute toggle to control if read connected part attributes from weld points
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

connectedPartAttrToggle Connected part attribute toggle value

void NXOpen::Weld::ExportWeldBuilder::SetCsvFileName ( const NXString & csvFileName )

Sets the CSV file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

csvFileName CSV file name

void NXOpen::Weld::ExportWeldBuilder::SetCsvFileName ( const char * csvFileName )

Sets the CSV file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

csvFileName CSV file name

void NXOpen::Weld::ExportWeldBuilder::SetExportedAttributes ( std::vector< NXString > & exportedAttributes )

Set the attributes of weld points to be exported to CSV file
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

exportedAttributes Exported attributes string
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Weld::ExportWeldBuilder::SetOutput ( NXOpen::Weld::ExportWeldBuilder::OutputType outputType )

Sets the option defining where to write the output data.

Data will be written to either a comma seperated value file or the output window.
Created in NX9.0.0.

License requirements : ugweld ("UG WELD")

Parameters

outputType outputtype

void NXOpen::Weld::ExportWeldBuilder::SetTemplateFileName ( const NXString & templateFileName )

Sets the template file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

templateFileName Template file name

void NXOpen::Weld::ExportWeldBuilder::SetTemplateFileName ( const char * templateFileName )

Sets the template file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

Parameters

templateFileName Template file name

NXString NXOpen::Weld::ExportWeldBuilder::TemplateFileName ( )

Returns the template file name
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

NXOpen::SelectNXObjectList* NXOpen::Weld::ExportWeldBuilder::WeldPoints ( )

Returns the weld points to be exported to CSV file
Created in NX6.0.0.

License requirements : ugweld ("UG WELD")

The documentation for this class was generated from the following file:

Weld_ExportWeldBuilder.hxx
