A property within either a VisualReporting::Rule or a VisualReporting::Condition , or used as referenced property information for the report. More...

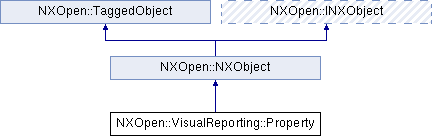

Inheritance diagram for NXOpen::VisualReporting::Property:

Public Types
enum	DatatypeOption { DatatypeOptionString, DatatypeOptionInteger, DatatypeOptionReal, DatatypeOptionBoolean, DatatypeOptionUnknown, DatatypeOptionNull, DatatypeOptionDate }
	Represents the possible VisualReporting::Property::SystemDatatype options for a property. More...

enum	TypeOption { TypeOptionArrangementSpecificPositionProperty, TypeOptionAttributeProperty, TypeOptionComponentGroupProperty, TypeOptionComponentNameProperty, TypeOptionDescriptivePartNameProperty, TypeOptionLoadStateProperty, TypeOptionMassKgProperty, TypeOptionMassLbProperty, TypeOptionModifiedProperty, TypeOptionMultiCadProperty, TypeOptionPartNameProperty, TypeOptionPartUnitsProperty, TypeOptionPiecePartProperty, TypeOptionPositionProperty, TypeOptionPositionControlProperty, TypeOptionReadOnlyProperty, TypeOptionReferenceSetProperty, TypeOptionRootPartProperty, TypeOptionSuppressionControlProperty, TypeOptionWeightStatusProperty, TypeOptionTeamcenterProperty, TypeOptionServerProperty, TypeOptionDegreesOfFreedomProperty, TypeOptionRuleEvaluationResultProperty, TypeOptionCheckMateResultProperty, TypeOptionLastModifiedDateProperty, TypeOptionRequirementsValidationStatusProperty, TypeOptionRepresentationProperty, TypeOptionLastModifiedUserProperty, TypeOptionComponentProperty, TypeOptionMassGmProperty, TypeOptionPartFamilyMemberProperty, TypeOptionLinkedPartProperty, TypeOptionProductTemplateProperty, TypeOptionBodyDensityProperty, TypeOptionBodyMassProperty, TypeOptionBodyRadiusGyrationProperty, TypeOptionBodySurfaceAreaProperty, TypeOptionBodyTypeProperty, TypeOptionBodyVolumeProperty, TypeOptionBodyWeightProperty, TypeOptionFaceAreaProperty, TypeOptionFaceTypeProperty, TypeOptionFaceMinRadiusProperty, TypeOptionFacePerimeterProperty, TypeOptionFacePMIFCFProperty, TypeOptionFacePMIFCFCharacteristicsProperty, TypeOptionFacePMIFCFCharFormTolProperty, TypeOptionFacePMIFCFCharLocationTolProperty, TypeOptionFacePMIFCFCharOrientationTolProperty, TypeOptionFacePMIFCFCharProfileTolProperty, TypeOptionFacePMIFCFCharRunoutTolProperty, TypeOptionFacePMIDatumFeatureProperty, TypeOptionFacePMIDatumTargetProperty, TypeOptionObjectAttributeProperty, TypeOptionObjectCreatedByUserProperty, TypeOptionObjectCreatedDateProperty, TypeOptionObjectCreatedVersionProperty, TypeOptionObjectRefByWaveLinkProperty, TypeOptionObjectWaveLinkedProperty, TypeOptionObjectModifiedByUserProperty, TypeOptionObjectModifiedDateProperty, TypeOptionObjectModifiedVersionProperty, TypeOptionPartitionMembershipProperty, TypeOptionComponentAddedDateProperty, TypeOptionTeamcenterObjectProperty }
	Represents the possible VisualReporting::Property::PropertyType options for a property. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
NXString	BitmapName ()
	Returns the bitmap name of this property.

NXString	CustomMessage ()
	Returns the custom message of this property.

NXOpen::VisualReporting::Property::TypeOption	PropertyType ()
	Returns the VisualReporting::Property::TypeOption of this VisualReporting::Property .

void	SetBitmapName (const NXString &bitmapName)
	Sets the bitmap name of this property.

void	SetBitmapName (const char *bitmapName)
	Sets the bitmap name of this property.

void	SetCustomMessage (const NXString &customMessage)
	Sets the custom message of this property.

void	SetCustomMessage (const char *customMessage)
	Sets the custom message of this property.

NXOpen::VisualReporting::Property::DatatypeOption	SystemDatatype ()
	Returns the preferred VisualReporting::Property::DatatypeOption that should be used for the owning VisualReporting::Condition or VisualReporting::Classifier .

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

A property within either a VisualReporting::Rule or a VisualReporting::Condition , or used as referenced property information for the report.

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::VisualReporting::Property::DatatypeOption

Represents the possible VisualReporting::Property::SystemDatatype options for a property.

Enumerator:

DatatypeOptionString	String datatype.
DatatypeOptionInteger	Integer datatype.
DatatypeOptionReal	Floating-point datatype.
DatatypeOptionBoolean	Boolean datatype.
DatatypeOptionUnknown	The datatype is unknown.
DatatypeOptionNull	Null data type.
DatatypeOptionDate	Date datatype.

enum NXOpen::VisualReporting::Property::TypeOption

Represents the possible VisualReporting::Property::PropertyType options for a property.

Enumerator:

TypeOptionArrangementSpecificPositionProperty	Arrengement specific positioning.
TypeOptionAttributeProperty	Part attribute property.
TypeOptionComponentGroupProperty	Component group name.
TypeOptionComponentNameProperty	Component name.
TypeOptionDescriptivePartNameProperty	Descriptive part name.
TypeOptionLoadStateProperty	The load-state of the component.
TypeOptionMassKgProperty	The mass of the component in pounds.
TypeOptionMassLbProperty	The mass of the component in kilograms.
TypeOptionModifiedProperty	Whether the component is modified.
TypeOptionMultiCadProperty	Parts mastered in a CAD system other than NX.
TypeOptionPartNameProperty	Part name.
TypeOptionPartUnitsProperty	Part units.
TypeOptionPiecePartProperty	Piece part.
TypeOptionPositionProperty	The position of the component.
TypeOptionPositionControlProperty	The position control of the component.
TypeOptionReadOnlyProperty	Whether the component is read-only.
TypeOptionReferenceSetProperty	The reference-set used by the component.
TypeOptionRootPartProperty	Root part occurrence.
TypeOptionSuppressionControlProperty	The suppression control of the component.
TypeOptionWeightStatusProperty	The weight status of the component.
TypeOptionTeamcenterProperty	Teamcenter property.
TypeOptionServerProperty	Server Property defined in server side report.
TypeOptionDegreesOfFreedomProperty	The freedom degree of the component.
TypeOptionRuleEvaluationResultProperty	Rule Evaluation for results in part.
TypeOptionCheckMateResultProperty	Check-Mate result.
TypeOptionLastModifiedDateProperty	last modify date property
TypeOptionRequirementsValidationStatusProperty	Requirement validate result.
TypeOptionRepresentationProperty	Representation Status.
TypeOptionLastModifiedUserProperty	last modify user property
TypeOptionComponentProperty	Assembly Navigator column property.
TypeOptionMassGmProperty	The mass of the component in grams.
TypeOptionPartFamilyMemberProperty	Part family member.
TypeOptionLinkedPartProperty	Linked part.
TypeOptionProductTemplateProperty	Product Template.
TypeOptionBodyDensityProperty	Body density property.
TypeOptionBodyMassProperty	Body mass property.
TypeOptionBodyRadiusGyrationProperty	Body radius gyration property.
TypeOptionBodySurfaceAreaProperty	Body surface area property.
TypeOptionBodyTypeProperty	Body type property.
TypeOptionBodyVolumeProperty	Body volume property.
TypeOptionBodyWeightProperty	Body weight property.
TypeOptionFaceAreaProperty	Face area property.
TypeOptionFaceTypeProperty	Face type property.
TypeOptionFaceMinRadiusProperty	Face minimum radius property.
TypeOptionFacePerimeterProperty	Face perimeter property.
TypeOptionFacePMIFCFProperty	Face PMI FCF property.
TypeOptionFacePMIFCFCharacteristicsProperty	Face PMI FCF characteristics property.
TypeOptionFacePMIFCFCharFormTolProperty	Face PMI FCF form characteristics property.
TypeOptionFacePMIFCFCharLocationTolProperty	Face PMI FCF location characteristics property.
TypeOptionFacePMIFCFCharOrientationTolProperty	Face PMI FCF orientation characteristics property.
TypeOptionFacePMIFCFCharProfileTolProperty	Face PMI FCF profile characteristics property.
TypeOptionFacePMIFCFCharRunoutTolProperty	Face PMI FCF runout characteristics property.
TypeOptionFacePMIDatumFeatureProperty	Face PMI datum feature property.
TypeOptionFacePMIDatumTargetProperty	Face PMI datum target property.
TypeOptionObjectAttributeProperty	Sub-part object attribute property.
TypeOptionObjectCreatedByUserProperty	Sub-part object created by user property.
TypeOptionObjectCreatedDateProperty	Sub-part object created date property.
TypeOptionObjectCreatedVersionProperty	Sub-part object created version property.
TypeOptionObjectRefByWaveLinkProperty	Sub-part object referenced by Wave link property.
TypeOptionObjectWaveLinkedProperty	Sub-part object Wave linked property.
TypeOptionObjectModifiedByUserProperty	Sub-part object modified by user property.
TypeOptionObjectModifiedDateProperty	Sub-part object modified date property.
TypeOptionObjectModifiedVersionProperty	Sub-part object modified version property.
TypeOptionPartitionMembershipProperty	Partition Membership property.
TypeOptionComponentAddedDateProperty	Component Added Date.
TypeOptionTeamcenterObjectProperty	Teamcenter Object property.

Member Function Documentation

NXString NXOpen::VisualReporting::Property::BitmapName ( )

Returns the bitmap name of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

NXString NXOpen::VisualReporting::Property::CustomMessage ( )

Returns the custom message of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

NXOpen::VisualReporting::Property::TypeOption NXOpen::VisualReporting::Property::PropertyType ( )

Returns the VisualReporting::Property::TypeOption of this VisualReporting::Property .

       Note that this @link VisualReporting::Property::PropertyType VisualReporting::Property::PropertyType@endlink  cannot be modified.
       Instead it is specified when creating this @link VisualReporting::Property VisualReporting::Property@endlink  by using the appropriate function:
        - @link VisualReporting::VisualReportBuilder::CreateProperty VisualReporting::VisualReportBuilder::CreateProperty@endlink

Created in NX7.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

void NXOpen::VisualReporting::Property::SetBitmapName ( const NXString & bitmapName )

Sets the bitmap name of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

Parameters

bitmapName bitmapname

void NXOpen::VisualReporting::Property::SetBitmapName ( const char * bitmapName )

Sets the bitmap name of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

Parameters

bitmapName bitmapname

void NXOpen::VisualReporting::Property::SetCustomMessage ( const NXString & customMessage )

Sets the custom message of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

Parameters

customMessage custommessage

void NXOpen::VisualReporting::Property::SetCustomMessage ( const char * customMessage )

Sets the custom message of this property.

Created in NX8.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

Parameters

customMessage custommessage

NXOpen::VisualReporting::Property::DatatypeOption NXOpen::VisualReporting::Property::SystemDatatype ( )

Returns the preferred VisualReporting::Property::DatatypeOption that should be used for the owning VisualReporting::Condition or VisualReporting::Classifier .

       This function will return a data type of
       @link VisualReporting::Property::DatatypeOptionUnknown VisualReporting::Property::DatatypeOptionUnknown@endlink
       for properies whose @link VisualReporting::Property::PropertyType VisualReporting::Property::PropertyType@endlink  is
       @link VisualReporting::Property::TypeOptionTeamcenterProperty VisualReporting::Property::TypeOptionTeamcenterProperty@endlink ,
       @link VisualReporting::Property::TypeOptionServerProperty VisualReporting::Property::TypeOptionServerProperty@endlink ,
       or @link VisualReporting::Property::TypeOptionAttributeProperty VisualReporting::Property::TypeOptionAttributeProperty@endlink
       where the preferred datatype cannot be determined.

       Note that this @link VisualReporting::Property::SystemDatatype VisualReporting::Property::SystemDatatype@endlink  cannot be modified.
       Instead it is determined when creating this @link VisualReporting::Property VisualReporting::Property@endlink  by using the appropriate function:
        - @link VisualReporting::VisualReportBuilder::CreateProperty VisualReporting::VisualReportBuilder::CreateProperty@endlink

Created in NX7.0.0.

License requirements : nx_visual_reporting ("Visual Reporting")

The documentation for this class was generated from the following file:

VisualReporting_Property.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
