Represents a @link Validate::Override Validate::Override@endlink  builder  <br> To create a new instance of this class, use @link Validate::ResultObject::CreateOverrideBuilder  Validate::ResultObject::CreateOverrideBuilder @endlink  <br>

Default values. More...

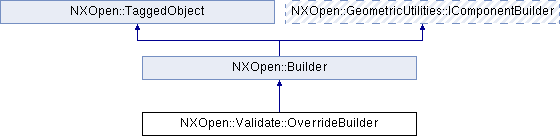

Inheritance diagram for NXOpen::Validate::OverrideBuilder:

Public Types
enum	DecisionActions { DecisionActionsApproved, DecisionActionsRejected, DecisionActionsPending }
	Represents the override request decision action. More...

enum	RequestTypes { RequestTypesPermanent, RequestTypesTemporary }
	Represents the override request type. More...

enum	ToStates { ToStatesPassed, ToStatesFailed }
	Represents the override request to state. More...

Public Member Functions
NXString	Category ()
	Returns the category of override request.

NXOpen::Validate::OverrideBuilder::DecisionActions	DecisionAction ()
	Returns the decision action of override request The decision action is automatically pending while override request is created.

NXString	DecisionUser ()
	Returns the decision user The decision user is a Teamcenter user in the Validation Administration group.

std::vector< NXString >	GetDecisionComments ()
	Returns the decision comments.

std::vector< NXString >	GetDetailReason ()
	Returns the detail reason.

NXString	Reason ()
	Returns the reason of override request.

NXOpen::Validate::OverrideBuilder::RequestTypes	RequestType ()
	Returns the type of override request Created in NX8.5.0.

void	SetCategory (const NXString &category)
	Sets the category of override request.

void	SetCategory (const char *category)
	Sets the category of override request.

void	SetDecisionAction (NXOpen::Validate::OverrideBuilder::DecisionActions decisionAction)
	Sets the decision action of override request The decision action is automatically pending while override request is created.

void	SetDecisionComments (const std::vector< NXString > &decisionComments)
	Sets the decision comments The decision comments is optional.

void	SetDecisionUser (const NXString &decisionUser)
	Sets the decision user The decision user is a Teamcenter user in the Validation Administration group.

void	SetDecisionUser (const char *decisionUser)
	Sets the decision user The decision user is a Teamcenter user in the Validation Administration group.

void	SetDetailReason (const std::vector< NXString > &detailReason)
	Sets the detail reason The detail reason is optional unless override reason configuration is mandatory in Teamcenter.

void	SetReason (const NXString &reason)
	Sets the reason of override request.

void	SetReason (const char *reason)
	Sets the reason of override request.

void	SetRequestType (NXOpen::Validate::OverrideBuilder::RequestTypes requestType)
	Sets the type of override request Created in NX8.5.0.

void	SetToState (NXOpen::Validate::OverrideBuilder::ToStates toState)
	Sets the to state of override request Created in NX8.5.0.

NXOpen::Validate::OverrideBuilder::ToStates	ToState ()
	Returns the to state of override request Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Validate::Override Validate::Override@endlink  builder  <br> To create a new instance of this class, use @link Validate::ResultObject::CreateOverrideBuilder  Validate::ResultObject::CreateOverrideBuilder @endlink  <br>

Default values.

Property

Value

RequestType

Permanent

ToState

Passed

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Validate::OverrideBuilder::DecisionActions

Represents the override request decision action.

Enumerator:

DecisionActionsApproved	approved
DecisionActionsRejected	rejected
DecisionActionsPending	pending

enum NXOpen::Validate::OverrideBuilder::RequestTypes

Represents the override request type.

Enumerator:

RequestTypesPermanent	permanent
RequestTypesTemporary	temporary

enum NXOpen::Validate::OverrideBuilder::ToStates

Represents the override request to state.

Enumerator:

ToStatesPassed	passed
ToStatesFailed	failed

Member Function Documentation

NXString NXOpen::Validate::OverrideBuilder::Category ( )

Returns the category of override request.

       The category is optional unless override reason configuration is mandatory in Teamcenter.

Created in NX8.5.0.

License requirements : None

NXOpen::Validate::OverrideBuilder::DecisionActions NXOpen::Validate::OverrideBuilder::DecisionAction ( )

Returns the decision action of override request The decision action is automatically pending while override request is created.

If any property of override request is changed, the decision action will be pending.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Validate::OverrideBuilder::DecisionUser ( )

Returns the decision user The decision user is a Teamcenter user in the Validation Administration group.

If the decision user is empty, it means thant any user in the group can review override request.

Created in NX8.5.0.

License requirements : None

std::vector<NXString> NXOpen::Validate::OverrideBuilder::GetDecisionComments ( )

Returns the decision comments.

Returns: Created in NX8.5.0.

License requirements : None

std::vector<NXString> NXOpen::Validate::OverrideBuilder::GetDetailReason ( )

Returns the detail reason.

Returns: Created in NX8.5.0.

License requirements : None

NXString NXOpen::Validate::OverrideBuilder::Reason ( )

Returns the reason of override request.

       The reason is optional unless override reason configuration is mandatory in Teamcenter.

Created in NX8.5.0.

License requirements : None

NXOpen::Validate::OverrideBuilder::RequestTypes NXOpen::Validate::OverrideBuilder::RequestType ( )

Returns the type of override request
Created in NX8.5.0.

License requirements : None

void NXOpen::Validate::OverrideBuilder::SetCategory ( const NXString & category )

Sets the category of override request.

       The category is optional unless override reason configuration is mandatory in Teamcenter.
