Represents a Ly-Dyna Formability Analysis - Result Display builder  <br> To create a new instance of this class, use @link Tooling::AutoDieCollection::CreateLsdynaFormAnalysisResultDisplayBuilder  Tooling::AutoDieCollection::CreateLsdynaFormAnalysisResultDisplayBuilder @endlink  <br>

Default values. More...

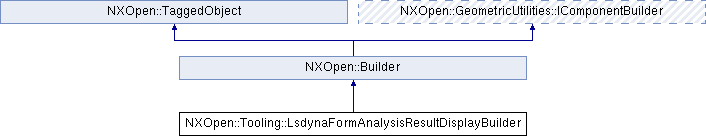

Inheritance diagram for NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder:

Public Types
enum	FormabilityStrainTypeName { FormabilityStrainTypeNameTopPrincipalStrain, FormabilityStrainTypeNameBottomPrincipalStrain }
	Options to set strain type to display for formability analysis result. More...

enum	StrainTypeName { StrainTypeNameTopMajorPrincipalStrain, StrainTypeNameTopMinorPrincipalStrain, StrainTypeNameBottomMajorPrincipalStrain, StrainTypeNameBottomMinorPrincipalStrain }
	Options to set strain type to display for strain analysis result. More...

enum	StressTypeName { StressTypeNameMaximumInplaneStress, StressTypeNameMinimumInplaneStress }
	Options to set stress type to display for stress analysis result. More...

Public Member Functions
double	AllowableThickening ()
	Returns the allowable thickening Created in NX9.0.0.

double	AllowableThinning ()
	Returns the allowable thinning Created in NX9.0.0.

void	DisplayFormability ()
	Display formability analysis result.

void	DisplayStrain ()
	Display strain analysis result.

void	DisplayStress ()
	Display stress analysis result.

void	DisplayThickness ()
	Display thickness analysis result.

void	DisplayThinning ()
	Display thinning analysis result.

double	EssentialThinning ()
	Returns the essential thinning Created in NX9.0.0.

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainTypeName	FormabilityStrainType ()
	Returns the formability strain type Created in NX9.0.0.

void	ImportGeometries ()
	Import geometries from analysis result files.

double	LimitOfFlc ()
	Returns the limit of formability limit curve Created in NX9.0.0.

NXString	ResultFileFolder ()
	Returns the result file folder Created in NX9.0.0.

double	RValue ()
	Returns the R-value Created in NX9.0.0.

double	SafetyMarginFromFlc ()
	Returns the safety margin from flc Created in NX9.0.0.

void	SetAllowableThickening (double allowableThickening)
	Sets the allowable thickening Created in NX9.0.0.

void	SetAllowableThinning (double allowableThinning)
	Sets the allowable thinning Created in NX9.0.0.

void	SetEssentialThinning (double essentialThinning)
	Sets the essential thinning Created in NX9.0.0.

void	SetFormabilityStrainType (NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainTypeName formabilityStrainType)
	Sets the formability strain type Created in NX9.0.0.

void	SetLimitOfFlc (double limitOfFlc)
	Sets the limit of formability limit curve Created in NX9.0.0.

void	SetResultFileFolder (const NXString &folderName)
	Sets the result file folder Created in NX9.0.0.

void	SetResultFileFolder (const char *folderName)
	Sets the result file folder Created in NX9.0.0.

void	SetResultFileNames (std::vector< NXString > &resultFileNames)
	Set all the result files of the analysis result.

void	SetRValue (double rValue)
	Sets the R-value Created in NX9.0.0.

void	SetSafetyMarginFromFlc (double safetyMarginFromFlc)
	Sets the safety margin from flc Created in NX9.0.0.

void	SetShowCracks (bool showCracks)
	Sets the option to indicate whether to show crack region or not Created in NX9.0.0.

void	SetShowInadequateStretch (bool showInadequateStretch)
	Sets the option to indicate whether to show lack of stretching region or not Created in NX9.0.0.

void	SetShowRiskOfCracks (bool showRiskOfCracks)
	Sets the option to indicate whether to show risk of cracks region or not Created in NX9.0.0.

void	SetShowSevereThinning (bool showSevereThinning)
	Sets the option to indicate whether to show excessive thinning region or not Created in NX9.0.0.

void	SetShowWrinkles (bool showWrinkles)
	Sets the option to indicate whether to show wrinkled region or not Created in NX9.0.0.

void	SetShowWrinklingTendency (bool showWrinklingTendency)
	Sets the option to indicate whether to show tendency to wrinkle region or not Created in NX9.0.0.

void	SetState (int state)
	Sets the index of the state which is currently displayed in graphic window Created in NX9.0.0.

void	SetStrainType (NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainTypeName strainType)
	Sets the strain type Created in NX9.0.0.

void	SetStressType (NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressTypeName stressType)
	Sets the stress type Created in NX9.0.0.

bool	ShowCracks ()
	Returns the option to indicate whether to show crack region or not Created in NX9.0.0.

bool	ShowInadequateStretch ()
	Returns the option to indicate whether to show lack of stretching region or not Created in NX9.0.0.

bool	ShowRiskOfCracks ()
	Returns the option to indicate whether to show risk of cracks region or not Created in NX9.0.0.

bool	ShowSevereThinning ()
	Returns the option to indicate whether to show excessive thinning region or not Created in NX9.0.0.

bool	ShowWrinkles ()
	Returns the option to indicate whether to show wrinkled region or not Created in NX9.0.0.

bool	ShowWrinklingTendency ()
	Returns the option to indicate whether to show tendency to wrinkle region or not Created in NX9.0.0.

int	State ()
	Returns the index of the state which is currently displayed in graphic window Created in NX9.0.0.

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainTypeName	StrainType ()
	Returns the strain type Created in NX9.0.0.

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressTypeName	StressType ()
	Returns the stress type Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Ly-Dyna Formability Analysis - Result Display builder  <br> To create a new instance of this class, use @link Tooling::AutoDieCollection::CreateLsdynaFormAnalysisResultDisplayBuilder  Tooling::AutoDieCollection::CreateLsdynaFormAnalysisResultDisplayBuilder @endlink  <br>

Default values.

Property

Value

AllowableThickening

0.01

AllowableThinning

0.15

EssentialThinning

0.05

FormabilityStrainType

TopPrincipalStrain

LimitOfFlc

0

RValue

1.82

SafetyMarginFromFlc

20

ShowCracks

1

ShowInadequateStretch

1

ShowRiskOfCracks

1

ShowSevereThinning

1

ShowWrinkles

1

ShowWrinklingTendency

1

State

0

StrainType

TopMajorPrincipalStrain

StressType

MaximumInplaneStress

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainTypeName

Options to set strain type to display for formability analysis result.

Enumerator:

FormabilityStrainTypeNameTopPrincipalStrain	Display top principal strain.
FormabilityStrainTypeNameBottomPrincipalStrain	Display bottom principal strain.

enum NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainTypeName

Options to set strain type to display for strain analysis result.

Enumerator:

StrainTypeNameTopMajorPrincipalStrain	Display top major principal strain.
StrainTypeNameTopMinorPrincipalStrain	Display top minor principal strain.
StrainTypeNameBottomMajorPrincipalStrain	Display bottom major principal strain.
StrainTypeNameBottomMinorPrincipalStrain	Display bottom minor principal strain.

enum NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressTypeName

Options to set stress type to display for stress analysis result.

Enumerator:

StressTypeNameMaximumInplaneStress	Display maximum in-plane stress.
StressTypeNameMinimumInplaneStress	Display minimum in-plane stress.

Member Function Documentation

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::AllowableThickening ( )

Returns the allowable thickening
Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::AllowableThinning ( )

Returns the allowable thinning
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::DisplayFormability ( )

Display formability analysis result.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::DisplayStrain ( )

Display strain analysis result.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::DisplayStress ( )

Display stress analysis result.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::DisplayThickness ( )

Display thickness analysis result.

It shows the thicknesses of all elements.
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::DisplayThinning ( )

Display thinning analysis result.

It shows the thinning rates of all elements.
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::EssentialThinning ( )

Returns the essential thinning
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainTypeName NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainType ( )

Returns the formability strain type
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ImportGeometries ( )

Import geometries from analysis result files.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::LimitOfFlc ( )

Returns the limit of formability limit curve
Created in NX9.0.0.

License requirements : None

NXString NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ResultFileFolder ( )

Returns the result file folder
Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::RValue ( )

Returns the R-value
Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SafetyMarginFromFlc ( )

Returns the safety margin from flc
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetAllowableThickening ( double allowableThickening )

Sets the allowable thickening
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

allowableThickening allowablethickening

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetAllowableThinning ( double allowableThinning )

Sets the allowable thinning
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

allowableThinning allowablethinning

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetEssentialThinning ( double essentialThinning )

Sets the essential thinning
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

essentialThinning essentialthinning

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetFormabilityStrainType ( NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::FormabilityStrainTypeName formabilityStrainType )

Sets the formability strain type
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

formabilityStrainType formabilitystraintype

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetLimitOfFlc ( double limitOfFlc )

Sets the limit of formability limit curve
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

limitOfFlc limitofflc

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetResultFileFolder ( const NXString & folderName )

Sets the result file folder
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

folderName foldername

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetResultFileFolder ( const char * folderName )

Sets the result file folder
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

folderName foldername

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetResultFileNames ( std::vector< NXString > & resultFileNames )

Set all the result files of the analysis result.

If d3plot and its subsequent files is added, the subsequent root files with a two letter appendage(d3plotaa, d3plotab, etc.) and their subsequent files(d3plotaa01, d3plotaa02, etc.) should also be added. Otherwise, only the root file with a two letter appendage and its subsequent files should be added. Only add subsequent files is not allowed.
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

resultFileNames NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetRValue ( double rValue )

Sets the R-value
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

rValue rvalue

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetSafetyMarginFromFlc ( double safetyMarginFromFlc )

Sets the safety margin from flc
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

safetyMarginFromFlc safetymarginfromflc

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowCracks ( bool showCracks )

Sets the option to indicate whether to show crack region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showCracks showcracks

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowInadequateStretch ( bool showInadequateStretch )

Sets the option to indicate whether to show lack of stretching region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showInadequateStretch showinadequatestretch

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowRiskOfCracks ( bool showRiskOfCracks )

Sets the option to indicate whether to show risk of cracks region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showRiskOfCracks showriskofcracks

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowSevereThinning ( bool showSevereThinning )

Sets the option to indicate whether to show excessive thinning region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showSevereThinning showseverethinning

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowWrinkles ( bool showWrinkles )

Sets the option to indicate whether to show wrinkled region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showWrinkles showwrinkles

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetShowWrinklingTendency ( bool showWrinklingTendency )

Sets the option to indicate whether to show tendency to wrinkle region or not
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showWrinklingTendency showwrinklingtendency

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetState ( int state )

Sets the index of the state which is currently displayed in graphic window
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

state state

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetStrainType ( NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainTypeName strainType )

Sets the strain type
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

strainType straintype

void NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::SetStressType ( NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressTypeName stressType )

Sets the stress type
Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

stressType stresstype

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowCracks ( )

Returns the option to indicate whether to show crack region or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowInadequateStretch ( )

Returns the option to indicate whether to show lack of stretching region or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowRiskOfCracks ( )

Returns the option to indicate whether to show risk of cracks region or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowSevereThinning ( )

Returns the option to indicate whether to show excessive thinning region or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowWrinkles ( )

Returns the option to indicate whether to show wrinkled region or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::ShowWrinklingTendency ( )

Returns the option to indicate whether to show tendency to wrinkle region or not
Created in NX9.0.0.

License requirements : None

int NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::State ( )

Returns the index of the state which is currently displayed in graphic window
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainTypeName NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StrainType ( )

Returns the strain type
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressTypeName NXOpen::Tooling::LsdynaFormAnalysisResultDisplayBuilder::StressType ( )

Returns the stress type
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Tooling_LsdynaFormAnalysisResultDisplayBuilder.hxx
