Mold Wizard initialize project builder  <br> To create a new instance of this class, use @link Tooling::InitProjectCollection::CreateBuilder  Tooling::InitProjectCollection::CreateBuilder @endlink  <br>

Default values. More...

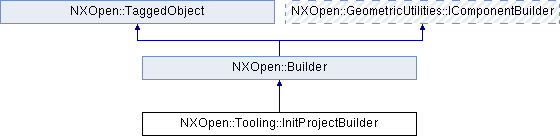

Inheritance diagram for NXOpen::Tooling::InitProjectBuilder:

Public Types
enum	ConfigurationId { ConfigurationIdDefault, ConfigurationIdOrig }
	the configuration type includes default and orig More...

enum	MaterialId { MaterialIdNone, MaterialIdNylon }
	the material type includes None and Nylon More...

enum	UnitId { UnitIdMillimeter, UnitIdInch }
	the unit type includes metric and inch project type More...

Public Member Functions
NXOpen::SelectBodyList *	BodySelect ()
	Returns the body will be used as product to create Mold Wizard project Created in NX6.0.0.

NXOpen::Tooling::InitProjectBuilder::ConfigurationId	Configuration ()
	Returns the configuration access functions Created in NX6.0.0.

NXOpen::Tooling::InitProjectBuilder::MaterialId	Material ()
	Returns the material access functions Created in NX6.0.0.

NXString	PathName ()
	Returns the project path access functions Created in NX6.0.0.

NXString	ProjectName ()
	Returns the project name access functions Created in NX6.0.0.

bool	Rename ()
	Returns the rename dialog allows users to define rename rules Created in NX6.0.0.

void	SetConfiguration (NXOpen::Tooling::InitProjectBuilder::ConfigurationId configuration)
	Sets the configuration access functions Created in NX6.0.0.

void	SetMaterial (NXOpen::Tooling::InitProjectBuilder::MaterialId material)
	Sets the material access functions Created in NX6.0.0.

void	SetPathName (const NXString &pathName)
	Sets the project path access functions Created in NX6.0.0.

void	SetPathName (const char *pathName)
	Sets the project path access functions Created in NX6.0.0.

void	SetProjectName (const NXString &projectName)
	Sets the project name access functions Created in NX6.0.0.

void	SetProjectName (const char *projectName)
	Sets the project name access functions Created in NX6.0.0.

void	SetRename (bool rename)
	Sets the rename dialog allows users to define rename rules Created in NX6.0.0.

void	SetShrinkage (const NXString &shrinkage)
	Sets the shrinkage access functions Created in NX6.0.0.

void	SetShrinkage (const char *shrinkage)
	Sets the shrinkage access functions Created in NX6.0.0.

void	SetUnit (NXOpen::Tooling::InitProjectBuilder::UnitId unit)
	Sets the project unit access functions Created in NX6.0.0.

NXString	Shrinkage ()
	Returns the shrinkage access functions Created in NX6.0.0.

NXOpen::Tooling::InitProjectBuilder::UnitId	Unit ()
	Returns the project unit access functions Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Mold Wizard initialize project builder  <br> To create a new instance of this class, use @link Tooling::InitProjectCollection::CreateBuilder  Tooling::InitProjectCollection::CreateBuilder @endlink  <br>

Default values.

Property

Value

Configuration

Default

Material

None

Rename

0

Unit

Millimeter

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::InitProjectBuilder::ConfigurationId

the configuration type includes default and orig

Enumerator:

ConfigurationIdDefault	Default configuration.
ConfigurationIdOrig	Original configuration.

enum NXOpen::Tooling::InitProjectBuilder::MaterialId

the material type includes None and Nylon

Enumerator:

MaterialIdNone	None material is set.
MaterialIdNylon	Nylon material type.

enum NXOpen::Tooling::InitProjectBuilder::UnitId

the unit type includes metric and inch project type

Enumerator:

UnitIdMillimeter	metric project
UnitIdInch	english project

Member Function Documentation

NXOpen::SelectBodyList* NXOpen::Tooling::InitProjectBuilder::BodySelect ( )

Returns the body will be used as product to create Mold Wizard project
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::InitProjectBuilder::ConfigurationId NXOpen::Tooling::InitProjectBuilder::Configuration ( )

Returns the configuration access functions
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::InitProjectBuilder::MaterialId NXOpen::Tooling::InitProjectBuilder::Material ( )

Returns the material access functions
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Tooling::InitProjectBuilder::PathName ( )

Returns the project path access functions
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Tooling::InitProjectBuilder::ProjectName ( )

Returns the project name access functions
Created in NX6.0.0.

License requirements : None

bool NXOpen::Tooling::InitProjectBuilder::Rename ( )

Returns the rename dialog allows users to define rename rules
Created in NX6.0.0.

License requirements : None

void NXOpen::Tooling::InitProjectBuilder::SetConfiguration ( NXOpen::Tooling::InitProjectBuilder::ConfigurationId configuration )

Sets the configuration access functions
Created in NX6.0.0.

License requirements : None

Parameters

configuration configuration

void NXOpen::Tooling::InitProjectBuilder::SetMaterial ( NXOpen::Tooling::InitProjectBuilder::MaterialId material )

Sets the material access functions
Created in NX6.0.0.

License requirements : None

Parameters

material material

void NXOpen::Tooling::InitProjectBuilder::SetPathName ( const NXString & pathName )

Sets the project path access functions
Created in NX6.0.0.

License requirements : None

Parameters

pathName pathname

void NXOpen::Tooling::InitProjectBuilder::SetPathName ( const char * pathName )

Sets the project path access functions
Created in NX6.0.0.

License requirements : None

Parameters

pathName pathname

void NXOpen::Tooling::InitProjectBuilder::SetProjectName ( const NXString & projectName )

Sets the project name access functions
Created in NX6.0.0.

License requirements : None

Parameters

projectName projectname

void NXOpen::Tooling::InitProjectBuilder::SetProjectName ( const char * projectName )

Sets the project name access functions
Created in NX6.0.0.

License requirements : None

Parameters

projectName projectname

void NXOpen::Tooling::InitProjectBuilder::SetRename ( bool rename )

Sets the rename dialog allows users to define rename rules
Created in NX6.0.0.

License requirements : None

Parameters

rename rename

void NXOpen::Tooling::InitProjectBuilder::SetShrinkage ( const NXString & shrinkage )

Sets the shrinkage access functions
Created in NX6.0.0.

License requirements : None

Parameters

shrinkage shrinkage

void NXOpen::Tooling::InitProjectBuilder::SetShrinkage ( const char * shrinkage )

Sets the shrinkage access functions
Created in NX6.0.0.

License requirements : None

Parameters

shrinkage shrinkage

void NXOpen::Tooling::InitProjectBuilder::SetUnit ( NXOpen::Tooling::InitProjectBuilder::UnitId unit )

Sets the project unit access functions
Created in NX6.0.0.

License requirements : None

Parameters

unit unit

NXString NXOpen::Tooling::InitProjectBuilder::Shrinkage ( )

Returns the shrinkage access functions
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::InitProjectBuilder::UnitId NXOpen::Tooling::InitProjectBuilder::Unit ( )

Returns the project unit access functions
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Tooling_InitProjectBuilder.hxx
