NXOpen::Tooling::FastenerAssy Class Reference

Represents a Tooling::FastenerAssy
To create a new instance of this class, use Tooling::FastenerAssyCollection::CreateBuilder

Created in NX5.0.0. More...

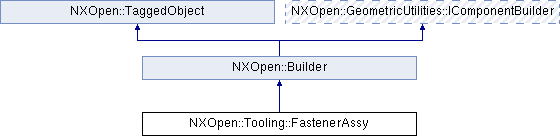

Inheritance diagram for NXOpen::Tooling::FastenerAssy:

Public Types
enum	ModeMethod { ModeMethodAdd = 1, ModeMethodEdit }
	Represents adding and editing modes for the fastener assembly. More...
enum	SelectionObjectMethod { SelectionObjectMethodTop, SelectionObjectMethodBottom }
	Represents selection object type. More...
enum	SelectionTypeMethod { SelectionTypeMethodHole, SelectionTypeMethodPosition }
	Represents selection type for position and hole. More...
enum	StackTypeMethod {   StackTypeMethodScrew, StackTypeMethodTopStack, StackTypeMethodBottomStack, StackTypeMethodRootNode,   StackTypeMethodTopNode, StackTypeMethodBottomNode }
	Represents screw_array type. More...

Public Member Functions
void	AddParentNewPart (const NXString &fileName, int index, bool parentNode)
	Adds new part for the parent node Created in NX9.0.0.
void	AddParentNewPart (const char *fileName, int index, bool parentNode)
	Adds new part for the parent node Created in NX9.0.0.
void	AddRemovalHoleIndex (int index)
	Add the removal hole index in the fastener setup data Created in NX9.0.0.
void	AddScrewArray (const NXString &krxFile, const NXString &lengthMatch, const NXString &libPath, const NXString &libName, const NXString &fullPath, int index, NXOpen::Tooling::FastenerAssy::StackTypeMethod type)
	Adds stack array Created in NX9.0.0.
void	AddScrewArray (const char *krxFile, const char *lengthMatch, const char *libPath, const char *libName, const char *fullPath, int index, NXOpen::Tooling::FastenerAssy::StackTypeMethod type)
	Adds stack array Created in NX9.0.0.
NXOpen::NXObject *	AddTopNode (const NXOpen::Point3d &point, const NXOpen::Point3d &direction, NXOpen::NXObject *selObject, int index)
	Adds top node for the fastener assembly.
void	AdjustFastenerLength (int parentIndex, int childIndex, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType)
	Adjusts the fastener assembly length Created in NX9.0.0.
void	CreateArrayHole (int index)
	Creates array hole data for the fastener assembly Created in NX9.0.0.
void	CreateFastenerConstraints (int index)
	Creates fastener assembly constraint Created in NX9.0.0.
NXOpen::Tooling::AddReusablePart *	CreateReusableBuilder (int parentIndex, int childIndex, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType)
	Creates new reusable builder.
void	CreateReusablePocket (bool commit)
	Creates reusable pocket Created in NX9.0.0.
void	CreateSameAssemblyData (int addedIndex, int index)
	Creates the same assembly data type Created in NX9.0.0.
void	DeleteArrayHole (int index)
	Deletes array hole data for the fastener assembly Created in NX9.0.0.
void	DeleteReusablePocket ()
	Deletes reusable pocket Created in NX9.0.0.
void	EraseAssemblyData (int parentIndex)
	Erases the assembly data Created in NX9.0.0.
void	EraseFastenerAssembly (int parentInx, bool removeParent, bool removeScrew, bool removeStack, bool removeArray, bool removeBuilder, bool initscrewBuilder, bool initstackBuilder, bool removeData)
	Erases fastener assembly Created in NX9.0.0.
void	EraseFastenerAssemblyData (int index)
	Erases the fastener assembly data, including the hole data and assembly data in the fastener setup data Created in NX9.0.0.
void	EraseFastenerSetupData ()
	Erases the data (hole and assembly data) in fastener assembly Created in NX9.0.0.
void	EraseStackArray (int parentIndex, int inx, NXOpen::Tooling::FastenerAssy::StackTypeMethod type)
	Erases stack array Created in NX9.0.0.
NXOpen::Tooling::FastenerAssy::ModeMethod	GetFastenerMode ()
	Gets the fastener mode.
NXOpen::Tooling::FastenerAssy::SelectionTypeMethod	GetFastenerSelectionType ()
	Gets the selection type for the hole in the fastener assembly.
NXOpen::Tooling::ReusablePocketBuilder *	GetReusablePocketBuilder ()
	Gets the reusable pocket builder.
void	InitPocketBuilder ()
	Inits pocket builder Created in NX9.0.0.
void	ReadAssemblyConfigure (int holeNum, NXOpen::Assemblies::Component *partOcc)
	Reads fastener assembly configuration data from the hole data Created in NX9.0.0.
void	RemoveFastenerConstraints (int index)
	Removes fastener assembly constraint Created in NX9.0.0.
void	RemoveSelectedHole ()
	Removes the selected hole from the fastener setup data Created in NX9.0.0.
void	RenameParentNode (int index, const NXString &newname)
	Renames the parent node Created in NX9.0.0.
void	RenameParentNode (int index, const char *newname)
	Renames the parent node Created in NX9.0.0.
void	SaveUdoData ()
	Saves UDO data for fastener assembly Created in NX9.0.0.
void	SelectScrewSize (int inx, double diameter, double origindiameter, bool selDiameter)
	Selects the screw size Created in NX9.0.0.
void	SetAssemblyExtentLength (int index, double extentLength)
	Sets the extent length for the fastener assembly data Created in NX9.0.0.
void	SetDefaultPlanarFaces (NXOpen::NXObject *defaultPlanarFace, int inx)
	Sets the default planar face for the hole in the fastener assembly Created in NX9.0.0.
void	SetFastenerExtentLength (double extentLength)
	Sets the extent length for the hole in the fastener assembly Created in NX9.0.0.
void	SetFastenerMode (NXOpen::Tooling::FastenerAssy::ModeMethod modeMethod)
	Sets the fastener mode Created in NX9.0.0.
void	SetFastenerSelectionType (NXOpen::Tooling::FastenerAssy::SelectionTypeMethod selectionType)
	Sets the selection type for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleDefaultCylindricalFace (NXOpen::NXObject *defaultCylFaces, int index)
	Sets the default cylindrical face for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleDiameter (double diameter, int index)
	Sets the diameter for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleDirection (const NXOpen::Point3d &direction, int index)
	Sets the direction for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleFaces (NXOpen::NXObject *holeFace, int index)
	Sets the faces for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleHeight (double height, int index)
	Sets the height for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleOriginDiameter (double originDiameter, int index)
	Sets the origin diameter for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleOriginHeight (double originheight, int index)
	Sets the origin height for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleOriginPosition (const NXOpen::Point3d &originposition, int index)
	Sets the origin position for the hole in the fastener assembly Created in NX9.0.0.
void	SetHolePosition (const NXOpen::Point3d &position, int index)
	Sets the position for the hole in the fastener assembly Created in NX9.0.0.
void	SetHoleSideCylindricalFaces (NXOpen::NXObject *sideCylFace, int index)
	Sets the side cylindrical faces for the hole in the fastener assembly Created in NX9.0.0.
void	SetItemName (const NXString &partName, const NXString &itemName)
	Adds item description for the part Created in NX9.0.0.
void	SetItemName (const char *partName, const char *itemName)
	Adds item description for the part Created in NX9.0.0.
void	SetReusablePocketBuilder (NXOpen::Tooling::ReusablePocketBuilder *pocketTag)
	Sets the reusable pocket builder Created in NX9.0.0.
void	SetReuseBuilder (int index, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType, int childIndex, NXOpen::Assemblies::Component *partOcc)
	Sets the reuse builder Created in NX9.0.0.
void	SetSidePlanarFaces (NXOpen::NXObject *sidePlanarFace, int index)
	Sets the side planar faces for the hole in the fastener assembly Created in NX9.0.0.
void	SubstituteFastenerStack (int parentIndex, int childIndex, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType, const NXString &partFile, const NXString &krxFile, const NXString &libName, const NXString &pathInLib, const NXString &lengthMatch, const NXString &fullPath)
	Substitutes fastener stack Created in NX9.0.0.
void	SubstituteFastenerStack (int parentIndex, int childIndex, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType, const char *partFile, const char *krxFile, const char *libName, const char *pathInLib, const char *lengthMatch, const char *fullPath)
	Substitutes fastener stack Created in NX9.0.0.
void	UpdateDefaultStandard (int index, const NXString &standard, const NXString &form, const NXString &type)
	Updates default standard hole data for the fastener assembly configuration Created in NX9.0.0.
void	UpdateDefaultStandard (int index, const char *standard, const char *form, const char *type)
	Updates default standard hole data for the fastener assembly configuration Created in NX9.0.0.
void	UpdateFastenerLength (bool adjustLength)
	Updates the fastener length Created in NX9.0.0.
void	UpdateFastenerStacks (int parentIndex, bool updateScrew, bool updatePocket)
	Updates fastener stacks Created in NX9.0.0.
void	UpdateHoleData (int inx, double originheight, const NXOpen::Point3d &originPoint, bool threadhole, bool blindhole)
	Updates the hole data Created in NX9.0.0.
void	UpdateHolePostion (int parentIndex, const NXOpen::Point3d &dirOne, const NXOpen::Point3d &tempPnt, const NXOpen::Point3d &pointOne, double height, double orignHeight, double offSetDistance)
	Updates the hole positon for position method Created in NX9.0.0.
void	UpdateStackPosition (int parentIndex, int childIndex, NXOpen::Tooling::FastenerAssy::StackTypeMethod nodeType, double deltaLength)
	Updates the fastener assembly after changing stacks or changing stack properties Created in NX9.0.0.
void	UpdateTopBottomStacks (int index, NXOpen::Tooling::FastenerAssy::SelectionObjectMethod type, bool isSameFace, NXOpen::NXObject *face)
	Updates fastener assembly according to the new extends Created in NX9.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Tooling::FastenerAssy
To create a new instance of this class, use Tooling::FastenerAssyCollection::CreateBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::FastenerAssy::ModeMethod

Represents adding and editing modes for the fastener assembly.

Enumerator:

ModeMethodEdit

Edit fastener assembly.

enum NXOpen::Tooling::FastenerAssy::SelectionObjectMethod

Represents selection object type.

Enumerator:

SelectionObjectMethodTop	Top object.
SelectionObjectMethodBottom	Bottom object.

enum NXOpen::Tooling::FastenerAssy::SelectionTypeMethod

Represents selection type for position and hole.

Enumerator:

SelectionTypeMethodHole	Hole type.
SelectionTypeMethodPosition	Position type.

enum NXOpen::Tooling::FastenerAssy::StackTypeMethod

Represents screw_array type.

Enumerator:

StackTypeMethodScrew	Screw type.
StackTypeMethodTopStack	Top stack type.
StackTypeMethodBottomStack	Bottom stack type.
StackTypeMethodRootNode	Root node type.
StackTypeMethodTopNode	Top node type.
StackTypeMethodBottomNode	Bottom node type.

Member Function Documentation

void NXOpen::Tooling::FastenerAssy::AddParentNewPart	(	const NXString &	fileName,
		int	index,
		bool	parentNode
	)

Adds new part for the parent node
Created in NX9.0.0.

License requirements : None

Parameters

fileName	New fastener assembly parent node name NOTE: The full Unicode character set is not supported for this parameter.
index	The hole index in the fastener assembly
parentNode	Whether the fastener assembly node is parent

void NXOpen::Tooling::FastenerAssy::AddParentNewPart	(	const char *	fileName,
		int	index,
		bool	parentNode
	)

Adds new part for the parent node
Created in NX9.0.0.

License requirements : None

Parameters

fileName	New fastener assembly parent node name NOTE: The full Unicode character set is not supported for this parameter.
index	The hole index in the fastener assembly
parentNode	Whether the fastener assembly node is parent

void NXOpen::Tooling::FastenerAssy::AddRemovalHoleIndex

(

int

index

)

Add the removal hole index in the fastener setup data
Created in NX9.0.0.

License requirements : None

Parameters

index

The hole index in the fastener assembly to be removed

void NXOpen::Tooling::FastenerAssy::AddScrewArray	(	const NXString &	krxFile,
		const NXString &	lengthMatch,
		const NXString &	libPath,
		const NXString &	libName,
		const NXString &	fullPath,
		int	index,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	type
	)

Adds stack array
Created in NX9.0.0.

License requirements : None

Parameters

krxFile	The krx file of the stack NOTE: The full Unicode character set is not supported for this parameter.
lengthMatch	The length match from fastener data and given node NOTE: The full Unicode character set is not supported for this parameter.
libPath	Ask fastener library path NOTE: The full Unicode character set is not supported for this parameter.
libName	Ask fastener library name NOTE: The full Unicode character set is not supported for this parameter.
fullPath	Stack file full path NOTE: The full Unicode character set is not supported for this parameter.
index	The hole index in the fastener assembly
type	The stack type method

void NXOpen::Tooling::FastenerAssy::AddScrewArray	(	const char *	krxFile,
		const char *	lengthMatch,
		const char *	libPath,
		const char *	libName,
		const char *	fullPath,
		int	index,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	type
	)

Adds stack array
Created in NX9.0.0.

License requirements : None

Parameters

krxFile	The krx file of the stack NOTE: The full Unicode character set is not supported for this parameter.
lengthMatch	The length match from fastener data and given node NOTE: The full Unicode character set is not supported for this parameter.
libPath	Ask fastener library path NOTE: The full Unicode character set is not supported for this parameter.
libName	Ask fastener library name NOTE: The full Unicode character set is not supported for this parameter.
fullPath	Stack file full path NOTE: The full Unicode character set is not supported for this parameter.
index	The hole index in the fastener assembly
type	The stack type method

NXOpen::NXObject* NXOpen::Tooling::FastenerAssy::AddTopNode	(	const NXOpen::Point3d &	point,
		const NXOpen::Point3d &	direction,
		NXOpen::NXObject *	selObject,
		int	index
	)

Adds top node for the fastener assembly.

Returns

Output the instance of the parent node
Created in NX9.0.0.

License requirements : None

Parameters

point	The point of the fastener to assemble
direction	The direciton of the fastener to assemble
selObject	The default cylindrical face of the hole data, selObject type should be FACE
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::AdjustFastenerLength	(	int	parentIndex,
		int	childIndex,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType
	)

Adjusts the fastener assembly length
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent index
childIndex	child index
nodeType	the stack type method

void NXOpen::Tooling::FastenerAssy::CreateArrayHole

(

int

index

)

Creates array hole data for the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

index

the hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::CreateFastenerConstraints

(

int

index

)

Creates fastener assembly constraint
Created in NX9.0.0.

License requirements : None

Parameters

index

the hole index in the fastener assembly to create constraints

NXOpen::Tooling::AddReusablePart* NXOpen::Tooling::FastenerAssy::CreateReusableBuilder	(	int	parentIndex,
		int	childIndex,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType
	)

Creates new reusable builder.

Returns

the new Tooling::AddReusablePart instance
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent node index in the fastener assembly
childIndex	child node index in the fastener assembly
nodeType	the stack type method

void NXOpen::Tooling::FastenerAssy::CreateReusablePocket

(

bool

commit

)

Creates reusable pocket
Created in NX9.0.0.

License requirements : None

Parameters

commit

whether to create pocket

void NXOpen::Tooling::FastenerAssy::CreateSameAssemblyData	(	int	addedIndex,
		int	index
	)

Creates the same assembly data type
Created in NX9.0.0.

License requirements : None

Parameters

addedIndex	find the the hole index with the same parameter and node type in the fastener assembly
index	the hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::DeleteArrayHole

(

int

index

)

Deletes array hole data for the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

index

the hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::DeleteReusablePocket

(

)

Deletes reusable pocket
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::EraseAssemblyData

(

int

parentIndex

)

Erases the assembly data
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex

parent index

void NXOpen::Tooling::FastenerAssy::EraseFastenerAssembly	(	int	parentInx,
		bool	removeParent,
		bool	removeScrew,
		bool	removeStack,
		bool	removeArray,
		bool	removeBuilder,
		bool	initscrewBuilder,
		bool	initstackBuilder,
		bool	removeData
	)

Erases fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

parentInx	parent index
removeParent	whether to remove parent instance
removeScrew	whether to remove screw
removeStack	whether to remove top stack and bottom stack
removeArray	whether to remove component array
removeBuilder	whether to remove builder
initscrewBuilder	whether to initialize screw builder
initstackBuilder	whether to initialize stack builder
removeData	whether to remove data

void NXOpen::Tooling::FastenerAssy::EraseFastenerAssemblyData

(

int

index

)

Erases the fastener assembly data, including the hole data and assembly data in the fastener setup data
Created in NX9.0.0.

License requirements : None

Parameters

index

The hole index in the fastener assembly to be removed

void NXOpen::Tooling::FastenerAssy::EraseFastenerSetupData

(

)

Erases the data (hole and assembly data) in fastener assembly
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::EraseStackArray	(	int	parentIndex,
		int	inx,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	type
	)

Erases stack array
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	Parent index
inx	Child index
type	The stack type method

NXOpen::Tooling::FastenerAssy::ModeMethod NXOpen::Tooling::FastenerAssy::GetFastenerMode

(

)

Gets the fastener mode.

Returns

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::FastenerAssy::SelectionTypeMethod NXOpen::Tooling::FastenerAssy::GetFastenerSelectionType

(

)

Gets the selection type for the hole in the fastener assembly.

Returns

The selection type to add the fastener assembly
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::ReusablePocketBuilder* NXOpen::Tooling::FastenerAssy::GetReusablePocketBuilder

(

)

Gets the reusable pocket builder.

Returns

The reusable component pocket builder
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::InitPocketBuilder

(

)

Inits pocket builder
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::ReadAssemblyConfigure	(	int	holeNum,
		NXOpen::Assemblies::Component *	partOcc
	)

Reads fastener assembly configuration data from the hole data
Created in NX9.0.0.

License requirements : None

Parameters

holeNum	hole num
partOcc	parent node part occurance

void NXOpen::Tooling::FastenerAssy::RemoveFastenerConstraints

(

int

index

)

Removes fastener assembly constraint
Created in NX9.0.0.

License requirements : None

Parameters

index

the hole index in the fastener assembly to delete constraints

void NXOpen::Tooling::FastenerAssy::RemoveSelectedHole

(

)

Removes the selected hole from the fastener setup data
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::RenameParentNode	(	int	index,
		const NXString &	newname
	)

Renames the parent node
Created in NX9.0.0.

License requirements : None

Parameters

index	parent node index in fastener assembly
newname	new name for the parent node NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::RenameParentNode	(	int	index,
		const char *	newname
	)

Renames the parent node
Created in NX9.0.0.

License requirements : None

Parameters

index	parent node index in fastener assembly
newname	new name for the parent node NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::SaveUdoData

(

)

Saves UDO data for fastener assembly
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::FastenerAssy::SelectScrewSize	(	int	inx,
		double	diameter,
		double	origindiameter,
		bool	selDiameter
	)

Selects the screw size
Created in NX9.0.0.

License requirements : None

Parameters

inx	parent index
diameter	diameter in hole data
origindiameter	origin diameter in hole data
selDiameter	whether to select diameter

void NXOpen::Tooling::FastenerAssy::SetAssemblyExtentLength	(	int	index,
		double	extentLength
	)

Sets the extent length for the fastener assembly data
Created in NX9.0.0.

License requirements : None

Parameters

index	hole index in fastener assembly
extentLength	The extent Length of the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetDefaultPlanarFaces	(	NXOpen::NXObject *	defaultPlanarFace,
		int	inx
	)

Sets the default planar face for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

defaultPlanarFace	The default planar face of the hole data, defaultPlanarFace type should be FACE
inx	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetFastenerExtentLength

(

double

extentLength

)

Sets the extent length for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

extentLength

The extent Length of the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetFastenerMode

(

NXOpen::Tooling::FastenerAssy::ModeMethod

modeMethod

)

Sets the fastener mode
Created in NX9.0.0.

License requirements : None

Parameters

modeMethod

mode method

void NXOpen::Tooling::FastenerAssy::SetFastenerSelectionType

(

NXOpen::Tooling::FastenerAssy::SelectionTypeMethod

selectionType

)

Sets the selection type for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

selectionType

The selection type to add the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleDefaultCylindricalFace	(	NXOpen::NXObject *	defaultCylFaces,
		int	index
	)

Sets the default cylindrical face for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

defaultCylFaces	The default cylindrical faces of the hole data, defaultCylFaces type should be FACE
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleDiameter	(	double	diameter,
		int	index
	)

Sets the diameter for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

diameter	The diameter of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleDirection	(	const NXOpen::Point3d &	direction,
		int	index
	)

Sets the direction for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

direction	The direcion of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleFaces	(	NXOpen::NXObject *	holeFace,
		int	index
	)

Sets the faces for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

holeFace	The hole face of the hole data, holeFace type is FACE
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleHeight	(	double	height,
		int	index
	)

Sets the height for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

height	The height of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleOriginDiameter	(	double	originDiameter,
		int	index
	)

Sets the origin diameter for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

originDiameter	The origin diameter of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleOriginHeight	(	double	originheight,
		int	index
	)

Sets the origin height for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

originheight	The origin height of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleOriginPosition	(	const NXOpen::Point3d &	originposition,
		int	index
	)

Sets the origin position for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

originposition	The origin position of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHolePosition	(	const NXOpen::Point3d &	position,
		int	index
	)

Sets the position for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

position	The position of the hole data
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SetHoleSideCylindricalFaces	(	NXOpen::NXObject *	sideCylFace,
		int	index
	)

Sets the side cylindrical faces for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

sideCylFace	The side cylinderical Face of the hole data
index	The hole index in the fastener assembly, sideCylFace type should be FACE

void NXOpen::Tooling::FastenerAssy::SetItemName	(	const NXString &	partName,
		const NXString &	itemName
	)

Adds item description for the part
Created in NX9.0.0.

License requirements : None

Parameters

partName	The part name
itemName	Item name

void NXOpen::Tooling::FastenerAssy::SetItemName	(	const char *	partName,
		const char *	itemName
	)

Adds item description for the part
Created in NX9.0.0.

License requirements : None

Parameters

partName	The part name
itemName	Item name

void NXOpen::Tooling::FastenerAssy::SetReusablePocketBuilder

(

NXOpen::Tooling::ReusablePocketBuilder *

pocketTag

)

Sets the reusable pocket builder
Created in NX9.0.0.

License requirements : None

Parameters

pocketTag

The reusable component pocket builder

void NXOpen::Tooling::FastenerAssy::SetReuseBuilder	(	int	index,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType,
		int	childIndex,
		NXOpen::Assemblies::Component *	partOcc
	)

Sets the reuse builder
Created in NX9.0.0.

License requirements : None

Parameters

index	parent node index in fastener assembly
nodeType	the stack type method
childIndex	child hole index in fastener assembly
partOcc	new part occruance

void NXOpen::Tooling::FastenerAssy::SetSidePlanarFaces	(	NXOpen::NXObject *	sidePlanarFace,
		int	index
	)

Sets the side planar faces for the hole in the fastener assembly
Created in NX9.0.0.

License requirements : None

Parameters

sidePlanarFace	The side planar face of the hole data, sidePlanarFace type should be FACE
index	The hole index in the fastener assembly

void NXOpen::Tooling::FastenerAssy::SubstituteFastenerStack	(	int	parentIndex,
		int	childIndex,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType,
		const NXString &	partFile,
		const NXString &	krxFile,
		const NXString &	libName,
		const NXString &	pathInLib,
		const NXString &	lengthMatch,
		const NXString &	fullPath
	)

Substitutes fastener stack
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent node index in the fastener assembly
childIndex	child node index in the fastener assembly
nodeType	the stack type method
partFile	part file NOTE: The full Unicode character set is not supported for this parameter.
krxFile	krx file NOTE: The full Unicode character set is not supported for this parameter.
libName	library name NOTE: The full Unicode character set is not supported for this parameter.
pathInLib	library path NOTE: The full Unicode character set is not supported for this parameter.
lengthMatch	the length match from fastener data and given node NOTE: The full Unicode character set is not supported for this parameter.
fullPath	screw file full path NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::SubstituteFastenerStack	(	int	parentIndex,
		int	childIndex,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType,
		const char *	partFile,
		const char *	krxFile,
		const char *	libName,
		const char *	pathInLib,
		const char *	lengthMatch,
		const char *	fullPath
	)

Substitutes fastener stack
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent node index in the fastener assembly
childIndex	child node index in the fastener assembly
nodeType	the stack type method
partFile	part file NOTE: The full Unicode character set is not supported for this parameter.
krxFile	krx file NOTE: The full Unicode character set is not supported for this parameter.
libName	library name NOTE: The full Unicode character set is not supported for this parameter.
pathInLib	library path NOTE: The full Unicode character set is not supported for this parameter.
lengthMatch	the length match from fastener data and given node NOTE: The full Unicode character set is not supported for this parameter.
fullPath	screw file full path NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::UpdateDefaultStandard	(	int	index,
		const NXString &	standard,
		const NXString &	form,
		const NXString &	type
	)

Updates default standard hole data for the fastener assembly configuration
Created in NX9.0.0.

License requirements : None

Parameters

index	The hole index in hole map data
standard	The default hole standard type in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.
form	The default hole form in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.
type	The default hole screw type in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::UpdateDefaultStandard	(	int	index,
		const char *	standard,
		const char *	form,
		const char *	type
	)

Updates default standard hole data for the fastener assembly configuration
Created in NX9.0.0.

License requirements : None

Parameters

index	The hole index in hole map data
standard	The default hole standard type in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.
form	The default hole form in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.
type	The default hole screw type in the assembly configuration NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Tooling::FastenerAssy::UpdateFastenerLength

(

bool

adjustLength

)

Updates the fastener length
Created in NX9.0.0.

License requirements : None

Parameters

adjustLength

Whether to adjust length in the fastener assembly

void NXOpen::Tooling::FastenerAssy::UpdateFastenerStacks	(	int	parentIndex,
		bool	updateScrew,
		bool	updatePocket
	)

Updates fastener stacks
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent index
updateScrew	whether to update screw
updatePocket	whether to update pocket

void NXOpen::Tooling::FastenerAssy::UpdateHoleData	(	int	inx,
		double	originheight,
		const NXOpen::Point3d &	originPoint,
		bool	threadhole,
		bool	blindhole
	)

Updates the hole data
Created in NX9.0.0.

License requirements : None

Parameters

inx	parent index
originheight	origin height in hole data
originPoint	origin point in hole data
threadhole	whether the hole is thread hole
blindhole	whether the hole is blind hole

void NXOpen::Tooling::FastenerAssy::UpdateHolePostion	(	int	parentIndex,
		const NXOpen::Point3d &	dirOne,
		const NXOpen::Point3d &	tempPnt,
		const NXOpen::Point3d &	pointOne,
		double	height,
		double	orignHeight,
		double	offSetDistance
	)

Updates the hole positon for position method
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent node index
dirOne	direction in hole data
tempPnt	position in hole data
pointOne	origin position in hole data
height	height in hole data
orignHeight	origin height in hole data
offSetDistance	offset distance in hole data

void NXOpen::Tooling::FastenerAssy::UpdateStackPosition	(	int	parentIndex,
		int	childIndex,
		NXOpen::Tooling::FastenerAssy::StackTypeMethod	nodeType,
		double	deltaLength
	)

Updates the fastener assembly after changing stacks or changing stack properties
Created in NX9.0.0.

License requirements : None

Parameters

parentIndex	parent index
childIndex	child index
nodeType	node type
deltaLength	the stack length to be changed

void NXOpen::Tooling::FastenerAssy::UpdateTopBottomStacks	(	int	index,
		NXOpen::Tooling::FastenerAssy::SelectionObjectMethod	type,
		bool	isSameFace,
		NXOpen::NXObject *	face
	)

Updates fastener assembly according to the new extends
Created in NX9.0.0.

License requirements : None

Parameters

index	parent node index in fastener assembly
type	top object or bottom object type
isSameFace	whether the fastener assembly is same face
face	top or bottom face

---

The documentation for this class was generated from the following file:

• Tooling_FastenerAssy.hxx
