The ElectrodeCopy builder <br> To create a new instance of this class, use @link Tooling::ElectrodeCopyCollection::CreateElectrodeCopyBuilder Tooling::ElectrodeCopyCollection::CreateElectrodeCopyBuilder @endlink <br>
Default values. More...
Public Types | |
| enum | Copy { CopyTransform, CopyMirror } |
| Represents an index to copy type. More... | |
Public Member Functions | |
| bool | CopyInstance () |
| Returns the setting indicates the copy is a new part or an instance. | |
| int | DefNum () |
| Returns the number of transform Created in NX6.0.0. | |
| NXOpen::SelectBodyList * | MirrorPlane () |
| Returns the mirror plane Created in NX6.0.0. | |
| bool | Rename () |
| Returns the new electrode name Created in NX6.0.0. | |
| NXOpen::SelectBodyList * | SelectElectrode () |
| Returns the selected electrode Created in NX6.0.0. | |
| NXOpen::SelectBodyList * | SelectFromFace () |
| Returns the selected 'from' face Created in NX6.0.0. | |
| NXOpen::SelectBodyList * | SelToFace () |
| Returns the selected 'to' face Created in NX6.0.0. | |
| NXOpen::Tooling::ElectrodeCopyBuilder::Copy | SelType () |
| Returns the copy type Created in NX6.0.0. | |
| void | SetCopyInstance (bool copyInstance) |
| Sets the setting indicates the copy is a new part or an instance. | |
| void | SetDefNum (int defNum) |
| Sets the number of transform Created in NX6.0.0. | |
| void | SetRename (bool rename) |
| Sets the new electrode name Created in NX6.0.0. | |
| void | SetSelType (NXOpen::Tooling::ElectrodeCopyBuilder::Copy selType) |
| Sets the copy type Created in NX6.0.0. | |

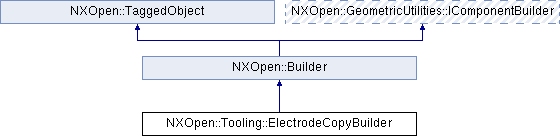

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
The ElectrodeCopy builder <br> To create a new instance of this class, use @link Tooling::ElectrodeCopyCollection::CreateElectrodeCopyBuilder Tooling::ElectrodeCopyCollection::CreateElectrodeCopyBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
DefNum |
1 |
|
SelType |
Transform |
Created in NX6.0.0.
Member Enumeration Documentation
Member Function Documentation
| bool NXOpen::Tooling::ElectrodeCopyBuilder::CopyInstance | ( | ) |
Returns the setting indicates the copy is a new part or an instance.
Created in NX7.5.0.
License requirements : None
| int NXOpen::Tooling::ElectrodeCopyBuilder::DefNum | ( | ) |
Returns the number of transform
Created in NX6.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Tooling::ElectrodeCopyBuilder::MirrorPlane | ( | ) |
Returns the mirror plane
Created in NX6.0.0.
License requirements : None
| bool NXOpen::Tooling::ElectrodeCopyBuilder::Rename | ( | ) |
Returns the new electrode name
Created in NX6.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Tooling::ElectrodeCopyBuilder::SelectElectrode | ( | ) |
Returns the selected electrode
Created in NX6.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Tooling::ElectrodeCopyBuilder::SelectFromFace | ( | ) |
Returns the selected 'from' face
Created in NX6.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Tooling::ElectrodeCopyBuilder::SelToFace | ( | ) |
Returns the selected 'to' face
Created in NX6.0.0.
License requirements : None
| NXOpen::Tooling::ElectrodeCopyBuilder::Copy NXOpen::Tooling::ElectrodeCopyBuilder::SelType | ( | ) |
Returns the copy type
Created in NX6.0.0.
License requirements : None
| void NXOpen::Tooling::ElectrodeCopyBuilder::SetCopyInstance | ( | bool | copyInstance | ) |
Sets the setting indicates the copy is a new part or an instance.
Created in NX7.5.0.
License requirements : None
- Parameters
-
copyInstance copyinstance
| void NXOpen::Tooling::ElectrodeCopyBuilder::SetDefNum | ( | int | defNum | ) |
Sets the number of transform
Created in NX6.0.0.
License requirements : None
- Parameters
-
defNum defnum
| void NXOpen::Tooling::ElectrodeCopyBuilder::SetRename | ( | bool | rename | ) |
Sets the new electrode name
Created in NX6.0.0.
License requirements : None
- Parameters
-
rename rename
| void NXOpen::Tooling::ElectrodeCopyBuilder::SetSelType | ( | NXOpen::Tooling::ElectrodeCopyBuilder::Copy | selType | ) |
Sets the copy type
Created in NX6.0.0.
License requirements : None
- Parameters
-
selType seltype
The documentation for this class was generated from the following file:
- Tooling_ElectrodeCopyBuilder.hxx
