Represents a Tooling::ConcurrentDesignManagementBuilder to support concurrent design workflow management. More...

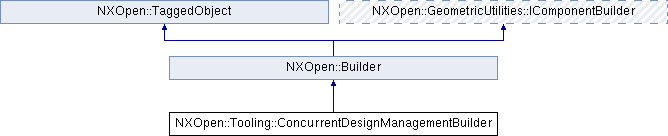

Inheritance diagram for NXOpen::Tooling::ConcurrentDesignManagementBuilder:

Public Types
enum	Types { TypesDesignerLogin, TypesTaskAssignment, TypesSaveAndUpdate }
	Specifies the types of concurrent design management. More...

enum	UpdateTypes { UpdateTypesSaveMyComponents, UpdateTypesUpdateOtherComponents }
	Specifies the types of the update action. More...

Public Member Functions
NXString	DesignerName ()
	Returns the designer name.

NXString	DesignTasks ()
	Returns the designer names.

NXString	ProjectLeader ()
	Returns the project leader name.

NXOpen::Assemblies::SelectComponent *	SelectComponent ()
	Returns the selected component to assign to a designer.

int	SelectedDesignerIndex ()
	Returns the index of the selected designer.

bool	SetAsMyDefaultTask ()
	Returns the option to set as the current user's default task.

void	SetDesignerName (const NXString &designerName)
	Sets the designer name.

void	SetDesignerName (const char *designerName)
	Sets the designer name.

void	SetDesignTasks (const NXString &designTasks)
	Sets the designer names.

void	SetDesignTasks (const char *designTasks)
	Sets the designer names.

void	SetProjectLeader (const NXString &projectLeader)
	Sets the project leader name.

void	SetProjectLeader (const char *projectLeader)
	Sets the project leader name.

void	SetSelectedDesignerIndex (int selectedDesignerIndex)
	Sets the index of the selected designer.

void	SetSetAsMyDefaultTask (bool setAsMyDefaultTask)
	Sets the option to set as the current user's default task.

void	SetType (NXOpen::Tooling::ConcurrentDesignManagementBuilder::Types type)
	Sets the type of concurrent design management.

void	SetUpdateOptions (NXOpen::Tooling::ConcurrentDesignManagementBuilder::UpdateTypes updateOptions)
	Sets the update type.

void	SetUserName (const NXString &userName)
	Sets the user name to login.

void	SetUserName (const char *userName)
	Sets the user name to login.

NXOpen::Tooling::ConcurrentDesignManagementBuilder::Types	Type ()
	Returns the type of concurrent design management.

NXOpen::Tooling::ConcurrentDesignManagementBuilder::UpdateTypes	UpdateOptions ()
	Returns the update type.

NXString	UserName ()
	Returns the user name to login.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Tooling::ConcurrentDesignManagementBuilder to support concurrent design workflow management.

To create a new instance of this class, use Tooling::WorkflowManagementCollection::CreateConcurrentDesignManagementBuilder
Default values.

Property

Value

SetAsMyDefaultTask

0

UpdateOptions

SaveMyComponents

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::ConcurrentDesignManagementBuilder::Types

Specifies the types of concurrent design management.

Enumerator:

TypesDesignerLogin	the designer login page
TypesTaskAssignment	the task assignment page
TypesSaveAndUpdate	the save and update page

enum NXOpen::Tooling::ConcurrentDesignManagementBuilder::UpdateTypes

Specifies the types of the update action.

Enumerator:

UpdateTypesSaveMyComponents	the save my components action
UpdateTypesUpdateOtherComponents	the update other components action

Member Function Documentation

NXString NXOpen::Tooling::ConcurrentDesignManagementBuilder::DesignerName ( )

Returns the designer name.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Tooling::ConcurrentDesignManagementBuilder::DesignTasks ( )

Returns the designer names.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Tooling::ConcurrentDesignManagementBuilder::ProjectLeader ( )

Returns the project leader name.

Created in NX8.0.0.

License requirements : None

NXOpen::Assemblies::SelectComponent* NXOpen::Tooling::ConcurrentDesignManagementBuilder::SelectComponent ( )

Returns the selected component to assign to a designer.

Created in NX8.0.0.

License requirements : None

int NXOpen::Tooling::ConcurrentDesignManagementBuilder::SelectedDesignerIndex ( )

Returns the index of the selected designer.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Tooling::ConcurrentDesignManagementBuilder::SetAsMyDefaultTask ( )

Returns the option to set as the current user's default task.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ConcurrentDesignManagementBuilder::SetDesignerName ( const NXString & designerName )

Sets the designer name.
