Represents a Tooling::ChangeoverManagementBuilder to support changeover workflow management. More...

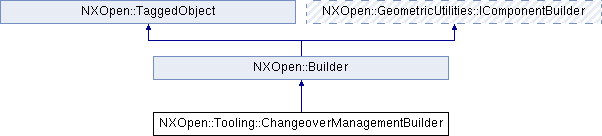

Inheritance diagram for NXOpen::Tooling::ChangeoverManagementBuilder:

Public Types
enum	Types { TypesCreate, TypesManage }
	Specifies the types of changeover management. More...

Public Member Functions
bool	AddComponentsExclusively ()
	Returns the exclusive adding Created in NX8.0.0.

void	AddToChangeover ()
	Add selected components to the selected changeover.

NXString	ChangeoverName ()
	Returns the name of the to-be-created changeover.

NXString	ClonedProductName ()
	Returns the name of the cloned product pack used to create a new changeover.

void	DeleteArrangement (bool removeComponents)
	Delete the selected changeover.

NXString	NewChangeoverName ()
	Returns the new name of the selected changeover.

void	RemoveFromChangeover ()
	Remove selected components from the selected changeover.

void	RenameArrangement ()
	Rename the selected changeover.

bool	RenameComponent ()
	Returns the option to rename the components of the to-be-created changeover.

NXOpen::Assemblies::SelectComponentList *	SelectComponents ()
	Returns the selection of components to be added to or removed from a changeover.

NXString	SelectedArrangementName ()
	Returns the name of the selected changeover arrangement.

NXOpen::Assemblies::SelectComponent *	SelectProduct ()
	Returns the selection of product for which to create changeover.

void	SetAddComponentsExclusively (bool addComponentsExclusively)
	Sets the exclusive adding Created in NX8.0.0.

void	SetChangeoverName (const NXString &changeoverName)
	Sets the name of the to-be-created changeover.

void	SetChangeoverName (const char *changeoverName)
	Sets the name of the to-be-created changeover.

void	SetClonedProductName (const NXString &clonedProductName)
	Sets the name of the cloned product pack used to create a new changeover.

void	SetClonedProductName (const char *clonedProductName)
	Sets the name of the cloned product pack used to create a new changeover.

void	SetNewChangeoverName (const NXString &newChangeoverName)
	Sets the new name of the selected changeover.

void	SetNewChangeoverName (const char *newChangeoverName)
	Sets the new name of the selected changeover.

void	SetRenameComponent (bool renameComponent)
	Sets the option to rename the components of the to-be-created changeover.

void	SetSelectedArrangementName (const NXString &arrangementName)
	Sets the name of the selected changeover arrangement.

void	SetSelectedArrangementName (const char *arrangementName)
	Sets the name of the selected changeover arrangement.

void	SetType (NXOpen::Tooling::ChangeoverManagementBuilder::Types type)
	Sets the type of changeover management.

NXOpen::Tooling::ChangeoverManagementBuilder::Types	Type ()
	Returns the type of changeover management.

void	UseArrangement ()
	Set the selected changeover as current used one.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Tooling::ChangeoverManagementBuilder to support changeover workflow management.

To create a new instance of this class, use Tooling::WorkflowManagementCollection::CreateChangeoverManagementBuilder
Default values.

Property

Value

AddComponentsExclusively

0

RenameComponent

0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::ChangeoverManagementBuilder::Types

Specifies the types of changeover management.

Enumerator:

TypesCreate	the create mode
TypesManage	the manage mode

Member Function Documentation

bool NXOpen::Tooling::ChangeoverManagementBuilder::AddComponentsExclusively ( )

Returns the exclusive adding
Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::AddToChangeover ( )

Add selected components to the selected changeover.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Tooling::ChangeoverManagementBuilder::ChangeoverName ( )

Returns the name of the to-be-created changeover.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Tooling::ChangeoverManagementBuilder::ClonedProductName ( )

Returns the name of the cloned product pack used to create a new changeover.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::DeleteArrangement ( bool removeComponents )

Delete the selected changeover.

Created in NX8.0.0.

License requirements : None

Parameters

removeComponents removecomponents

NXString NXOpen::Tooling::ChangeoverManagementBuilder::NewChangeoverName ( )

Returns the new name of the selected changeover.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::RemoveFromChangeover ( )

Remove selected components from the selected changeover.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::RenameArrangement ( )

Rename the selected changeover.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Tooling::ChangeoverManagementBuilder::RenameComponent ( )

Returns the option to rename the components of the to-be-created changeover.

Created in NX8.0.0.

License requirements : None

NXOpen::Assemblies::SelectComponentList* NXOpen::Tooling::ChangeoverManagementBuilder::SelectComponents ( )

Returns the selection of components to be added to or removed from a changeover.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Tooling::ChangeoverManagementBuilder::SelectedArrangementName ( )

Returns the name of the selected changeover arrangement.

Created in NX8.0.0.

License requirements : None

NXOpen::Assemblies::SelectComponent* NXOpen::Tooling::ChangeoverManagementBuilder::SelectProduct ( )

Returns the selection of product for which to create changeover.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::SetAddComponentsExclusively ( bool addComponentsExclusively )

Sets the exclusive adding
Created in NX8.0.0.

License requirements : None

Parameters

addComponentsExclusively addcomponentsexclusively

void NXOpen::Tooling::ChangeoverManagementBuilder::SetChangeoverName ( const NXString & changeoverName )

Sets the name of the to-be-created changeover.

Created in NX8.0.0.

License requirements : None

Parameters

changeoverName changeovername

void NXOpen::Tooling::ChangeoverManagementBuilder::SetChangeoverName ( const char * changeoverName )

Sets the name of the to-be-created changeover.

Created in NX8.0.0.

License requirements : None

Parameters

changeoverName changeovername

void NXOpen::Tooling::ChangeoverManagementBuilder::SetClonedProductName ( const NXString & clonedProductName )

Sets the name of the cloned product pack used to create a new changeover.

Created in NX8.0.0.

License requirements : None

Parameters

clonedProductName clonedproductname

void NXOpen::Tooling::ChangeoverManagementBuilder::SetClonedProductName ( const char * clonedProductName )

Sets the name of the cloned product pack used to create a new changeover.

Created in NX8.0.0.

License requirements : None

Parameters

clonedProductName clonedproductname

void NXOpen::Tooling::ChangeoverManagementBuilder::SetNewChangeoverName ( const NXString & newChangeoverName )

Sets the new name of the selected changeover.

Created in NX8.0.0.

License requirements : None

Parameters

newChangeoverName newchangeovername

void NXOpen::Tooling::ChangeoverManagementBuilder::SetNewChangeoverName ( const char * newChangeoverName )

Sets the new name of the selected changeover.

Created in NX8.0.0.

License requirements : None

Parameters

newChangeoverName newchangeovername

void NXOpen::Tooling::ChangeoverManagementBuilder::SetRenameComponent ( bool renameComponent )

Sets the option to rename the components of the to-be-created changeover.

Created in NX8.0.0.

License requirements : None

Parameters

renameComponent renamecomponent

void NXOpen::Tooling::ChangeoverManagementBuilder::SetSelectedArrangementName ( const NXString & arrangementName )

Sets the name of the selected changeover arrangement.

Created in NX8.0.0.

License requirements : None

Parameters

arrangementName arrangementname

void NXOpen::Tooling::ChangeoverManagementBuilder::SetSelectedArrangementName ( const char * arrangementName )

Sets the name of the selected changeover arrangement.

Created in NX8.0.0.

License requirements : None

Parameters

arrangementName arrangementname

void NXOpen::Tooling::ChangeoverManagementBuilder::SetType ( NXOpen::Tooling::ChangeoverManagementBuilder::Types type )

Sets the type of changeover management.

Created in NX8.0.0.

License requirements : None

Parameters

type type

NXOpen::Tooling::ChangeoverManagementBuilder::Types NXOpen::Tooling::ChangeoverManagementBuilder::Type ( )

Returns the type of changeover management.

Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::ChangeoverManagementBuilder::UseArrangement ( )

Set the selected changeover as current used one.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Tooling_ChangeoverManagementBuilder.hxx
