Represents a sketch pattern constraint
Use SketchCollection::CreateSketchPatternBuilder to create an instance of this class. More...

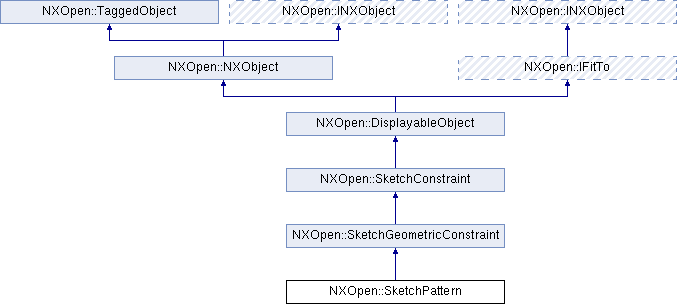

Inheritance diagram for NXOpen::SketchPattern:

Public Types
enum	InstanceControl { InstanceControlFullCircle, InstanceControlNumberOffset }
	Represents the type of instance control for circular patterns. More...

enum	Type { TypeLinear, TypeCircular, TypeMirror }
	Represents the pattern type of the constraint. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::SketchGeometricConstraint
std::vector < NXOpen::Sketch::ConstraintGeometry >	GetGeometry ()
	Returns the geometry associated with the constraint.

bool	IsInferred ()
	Returns a flag indicating whether the constraint is an inferred constraint Created in NX3.0.0.

Detailed Description

Represents a sketch pattern constraint
Use SketchCollection::CreateSketchPatternBuilder to create an instance of this class.

Created in NX7.5.0.

Member Enumeration Documentation

Represents the type of instance control for circular patterns.

Enumerator:

InstanceControlFullCircle	The pattern instance control type is Full Circle.
InstanceControlNumberOffset	The pattern instance control type is number + offset.

Represents the pattern type of the constraint.

Enumerator:

TypeLinear	The pattern type is linear pattern.
TypeCircular	The pattern type is circular pattern.
TypeMirror	The pattern type is mirror pattern.

The documentation for this class was generated from the following file:
