Represents the ISV base class object. More...

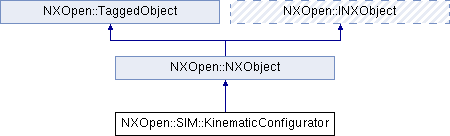

Inheritance diagram for NXOpen::SIM::KinematicConfigurator:

Public Types
enum	UniteTypes { UniteTypesCreate, UniteTypesUnite }
	The unite types for spinning geometries. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
void	AddChannel (const NXString &channel)
	Adds a new user channel name to the list of channels Created in NX7.5.0.

void	AddChannel (const char *channel)
	Adds a new user channel name to the list of channels Created in NX7.5.0.

void	AddHoldingSystem (const NXString &holdSys)
	Adds a new user holding system to the list of holding systems Created in NX7.5.0.

void	AddHoldingSystem (const char *holdSys)
	Adds a new user holding system to the list of holding systems Created in NX7.5.0.

void	AddUserClassification (const NXString &userClass)
	Adds a new user class name to the list of user classes Created in NX7.5.0.

void	AddUserClassification (const char *userClass)
	Adds a new user class name to the list of user classes Created in NX7.5.0.

NXOpen::SIM::KinematicComponentCollection *	ComponentCollection ()
	Returns the ComponentCollection instance belonging to this SimKim Created in NX7.5.0.

NXOpen::SIM::KinematicAxisBuilder *	CreateAxisBuilder (NXOpen::SIM::KinematicComponent parent, NXOpen::SIM::KinematicJunction jct, NXOpen::SIM::KinematicAxis *axis)
	Creates a builder for a kinematic axis.

NXOpen::CAM::CollisionPairBuilder *	CreateCollisionPairBuilder ()
	Creates a collision pair builder.

NXOpen::CAM::ConvertFromMCDBuilder *	CreateConvertFromMcdBuilder ()
	Creates a builder to convert from MCD.

NXOpen::SIM::IsvControlPanelBuilder *	CreateIsvControlPanelBuilder (NXOpen::SIM::IsvControlPanelBuilder::VisualizationType driverType, const std::vector< NXOpen::CAM::CAMObject * > &objects)
	Creates an isv control panel builder.

NXOpen::SIM::IsvControlPanelBuilder *	CreateIsvControlPanelBuilder (NXOpen::SIM::IsvControlPanelBuilder::VisualizationType driverType, const NXString &filename)
	Creates an isv control panel builder with given machine code file name.

NXOpen::SIM::IsvControlPanelBuilder *	CreateIsvControlPanelBuilder (NXOpen::SIM::IsvControlPanelBuilder::VisualizationType driverType, const char *filename)
	Creates an isv control panel builder with given machine code file name.

NXOpen::SIM::IsvControlPanelBuilder *	CreateIsvControlPanelBuilder (NXOpen::SIM::IsvControlPanelBuilder::VisualizationType driverType, NXOpen::SIM::NcChannelSelectionData *channelData)
	Creates an isv control panel builder with given machine code file name.

NXOpen::SIM::KinematicJunctionBuilder *	CreateJunctionBuilder (NXOpen::SIM::KinematicComponent parent, NXOpen::SIM::KinematicJunction jct)
	Creates a builder for a kinematic junction.

NXOpen::SIM::KinematicChain *	CreateKinematicChain ()
	Creates a builder for a kinematic chain.

NXOpen::SIM::KinematicSinumerikCaBuilder *	CreateKinematicSinumerikCaBuilder (NXOpen::SIM::KinematicComponent *comp)
	Creates a builder for a kinematic sinumerik ca config.

NXOpen::SIM::NcChannelSelectionData *	CreateNcChannelSelectionData ()
	Creates an NcChannelSelectionData object to which files and channels can be assigned.

NXOpen::CAM::SimulationOptionsBuilder *	CreateSimulationOptionsBuilder (NXOpen::CAM::SimulationOptionsBuilder::DialogType dialogType)
	Creates a simulation options.

NXOpen::SIM::SinumerikCaExportBuilder *	CreateSinumerikCaExportBuilder ()
	Creates a builder for a sinumerik ca export spf.

NXOpen::SIM::SinumerikCaFacetBuilder *	CreateSinumerikCaFacetBuilder ()
	Creates a builder for a sinumerik ca facet.

NXOpen::SIM::SinumerikCaPlaceholderBuilder *	CreateSinumerikCaPlaceholderBuilder ()
	Creates a builder for a sinumerik ca placeholder.

NXOpen::SIM::SinumerikCaSimplifyBodiesBuilder *	CreateSinumerikCaSimplifyBodiesBuilder ()
	Creates a builder for a sinumerik ca simplify bodies.

NXOpen::SIM::KinematicComponent *	CreateSpinningClone (NXOpen::SIM::KinematicComponent *source, bool combine)
	Creates a copy of the given component and spins its assigned geometry around a spinning axis.

NXOpen::SIM::KinematicChainConfiguration *	DefineKinematicChains ()
	Creates a builder for a kinematic chain configurator.

void	DeleteAllChannels ()
	Deletes all channels from the kinematic model Created in NX7.5.0.

void	DeleteAllHoldingSystems ()
	Delete all holding systems from the kinematic model Created in NX7.5.0.

void	DeleteAxis (NXOpen::SIM::KinematicAxis *axis)
	Deletes the given axis Created in NX7.5.0.

void	DeleteChannel (const NXString &channel)
	Deletes a channel name from the list of channels Created in NX7.5.0.

void	DeleteChannel (const char *channel)
	Deletes a channel name from the list of channels Created in NX7.5.0.

void	DeleteComponent (NXOpen::SIM::KinematicComponent *comp)
	Deletes the given component Created in NX7.5.0.

void	DeleteHoldingSystem (const NXString &holdSys)
	Delete a holding system from the list Created in NX7.5.0.

void	DeleteHoldingSystem (const char *holdSys)
	Delete a holding system from the list Created in NX7.5.0.

void	DeleteJunction (NXOpen::SIM::KinematicJunction *jct)
	Deletes the given junction Created in NX7.5.0.

void	DeleteModel ()
	Deletes the entire kinematic model Created in NX7.5.0.

void	DeleteRootComponent (NXOpen::SIM::KinematicComponent *oldRoot)
	Delete a root component from the SIM::KinematicConfigurator object Created in NX7.5.0.

void	DeleteUserClassification (const NXString &userClass)
	Deletes a user class name from the list of user classes Created in NX7.5.0.

void	DeleteUserClassification (const char *userClass)
	Deletes a user class name from the list of user classes Created in NX7.5.0.

NXOpen::SIM::KinematicAxis *	FindAxis (const NXString &name, NXOpen::SIM::KinematicComponent pComp, NXOpen::SIM::KinematicJunction pJct)
	Find the axis with the given name.

NXOpen::SIM::KinematicAxis *	FindAxis (const char name, NXOpen::SIM::KinematicComponent pComp, NXOpen::SIM::KinematicJunction *pJct)
	Find the axis with the given name.

void	FindComponentsBySystemClass (int sysclass, std::vector< NXOpen::SIM::KinematicComponent * > &comps)
	Finds component which are of the given system class in bitwise

void	FindComponentsBySystemClass (NXOpen::SIM::KinematicComponentBuilder::SystemClass sysclass, std::vector< NXOpen::SIM::KinematicComponent * > &comps)
	Finds component which are of the given system class Created in NX8.0.3.

NXOpen::SIM::KinematicJunction *	FindJunction (const NXString &name)
	Find the junction with the given name.

NXOpen::SIM::KinematicJunction *	FindJunction (const char *name)
	Find the junction with the given name.

NXOpen::SIM::KinematicJunction *	FindJunction (NXOpen::NXObject *csys)
	Finds a junction by its coordinate system.

NXOpen::SIM::KinematicComponent *	FindOwnerOfJunction (NXOpen::SIM::KinematicJunction *jct)
	Finds the SIM::KinematicComponent which is the owner of this junction.

NXOpen::SIM::KinematicComponent *	FindParentComponent (NXOpen::SIM::KinematicComponent *comp)
	Finds the SIM::KinematicComponent which is the parent of this component.

void	GetChannels (std::vector< NXString > &channels)
	Get a list of all channels Created in NX7.5.0.

void	GetHoldingSystems (std::vector< NXString > &holdSys)
	Get a list of all holding systems Created in NX7.5.0.

void	GetJunctionNames (std::vector< NXString > &junctions)
	Gets a list of all junction names in the kinematic Created in NX7.5.0.

void	GetJunctions (std::vector< NXOpen::SIM::KinematicJunction * > &junctions)
	Gets a list of all junctions in the kinematic Created in NX7.5.0.

void	GetUserClassifications (std::vector< NXString > &uClasses)
	Get a list of all user classes Created in NX7.5.0.

void	InsertRootComponent (NXOpen::SIM::KinematicComponent *newRoot)
	Adds a new root component to the SIM::KinematicConfigurator object Created in NX7.5.0.

NXOpen::SIM::IsvControlPanelBuilder *	IsvControlPanelBuilder ()
	Returns the isv control panel builder Created in NX9.0.0.

void	RenameChannel (const NXString &oldName, const NXString &newName)
	Renames a channel name from the list Created in NX7.5.0.

void	RenameChannel (const char oldName, const char newName)
	Renames a channel name from the list Created in NX7.5.0.

void	RenameHoldingSystem (const NXString &oldName, const NXString &newName)
	Renames a holding system from the list Created in NX7.5.0.

void	RenameHoldingSystem (const char oldName, const char newName)
	Renames a holding system from the list Created in NX7.5.0.

void	RenameUserClassification (const NXString &oldName, const NXString &newName)
	Renames a user class name from the list Created in NX7.5.0.

void	RenameUserClassification (const char oldName, const char newName)
	Renames a user class name from the list Created in NX7.5.0.

void	SetName (const NXString &name)
	Sets the custom name of the kinematic model Created in NX7.5.0.

void	SetName (const char *name)
	Sets the custom name of the kinematic model Created in NX7.5.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents the ISV base class object.

To obtain an instance of this class, use Part::KinematicConfigurator

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::SIM::KinematicConfigurator::UniteTypes

The unite types for spinning geometries.

Enumerator:

UniteTypesCreate	Create the spinning geometries as individual bodies.
UniteTypesUnite	Unite the spinning geometries into one body.

Member Function Documentation

void NXOpen::SIM::KinematicConfigurator::AddChannel ( const NXString & channel )

Adds a new user channel name to the list of channels
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

channel The new channel name.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::AddChannel ( const char * channel )

Adds a new user channel name to the list of channels
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

channel The new channel name.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::AddHoldingSystem ( const NXString & holdSys )

Adds a new user holding system to the list of holding systems
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

holdSys The new holding system.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::AddHoldingSystem ( const char * holdSys )

Adds a new user holding system to the list of holding systems
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

holdSys The new holding system.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::AddUserClassification ( const NXString & userClass )

Adds a new user class name to the list of user classes
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

userClass The new user class name
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::AddUserClassification ( const char * userClass )

Adds a new user class name to the list of user classes
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

userClass The new user class name
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::KinematicComponentCollection* NXOpen::SIM::KinematicConfigurator::ComponentCollection ( )

Returns the ComponentCollection instance belonging to this SimKim
Created in NX7.5.0.

NXOpen::SIM::KinematicAxisBuilder* NXOpen::SIM::KinematicConfigurator::CreateAxisBuilder	(	NXOpen::SIM::KinematicComponent *	parent,
		NXOpen::SIM::KinematicJunction *	jct,
		NXOpen::SIM::KinematicAxis *	axis
	)

Creates a builder for a kinematic axis.

Returns: The new axis builder
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

parent	The parent component
jct	The junction used for the axis
axis	The axis to edit. If NULL, a new axis is craeted

NXOpen::CAM::CollisionPairBuilder* NXOpen::SIM::KinematicConfigurator::CreateCollisionPairBuilder ( )

Creates a collision pair builder.

Returns: The new collision pair builder
Created in NX8.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::CAM::ConvertFromMCDBuilder* NXOpen::SIM::KinematicConfigurator::CreateConvertFromMcdBuilder ( )

Creates a builder to convert from MCD.

Returns: The new convert from mcd builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::IsvControlPanelBuilder* NXOpen::SIM::KinematicConfigurator::CreateIsvControlPanelBuilder	(	NXOpen::SIM::IsvControlPanelBuilder::VisualizationType	driverType,
		const std::vector< NXOpen::CAM::CAMObject * > &	objects
	)

Creates an isv control panel builder.

Returns: The isv control panel builder
Created in NX8.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

driverType	The visualization type
objects	array of objects

NXOpen::SIM::IsvControlPanelBuilder* NXOpen::SIM::KinematicConfigurator::CreateIsvControlPanelBuilder	(	NXOpen::SIM::IsvControlPanelBuilder::VisualizationType	driverType,
		const NXString &	filename
	)

Creates an isv control panel builder with given machine code file name.

Returns: The isv control panel builder

Deprecated:: Deprecated in NX9.0.0. Use KinematicConfigurator::CreateIsvControlPanelBuilder with KinematicConfigurator::CreateNcChannelSelectionData instead.

Created in NX8.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

driverType	The visualization type
filename	The full path machine code filename NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::IsvControlPanelBuilder* NXOpen::SIM::KinematicConfigurator::CreateIsvControlPanelBuilder	(	NXOpen::SIM::IsvControlPanelBuilder::VisualizationType	driverType,
		const char *	filename
	)

Creates an isv control panel builder with given machine code file name.

Returns: The isv control panel builder

Deprecated:: Deprecated in NX9.0.0. Use KinematicConfigurator::CreateIsvControlPanelBuilder with KinematicConfigurator::CreateNcChannelSelectionData instead.

Created in NX8.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

driverType	The visualization type
filename	The full path machine code filename NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::IsvControlPanelBuilder* NXOpen::SIM::KinematicConfigurator::CreateIsvControlPanelBuilder	(	NXOpen::SIM::IsvControlPanelBuilder::VisualizationType	driverType,
		NXOpen::SIM::NcChannelSelectionData *	channelData
	)

Creates an isv control panel builder with given machine code file name.

Returns: The isv control panel builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

driverType	The visualization type
channelData	The NC channel selection data

NXOpen::SIM::KinematicJunctionBuilder* NXOpen::SIM::KinematicConfigurator::CreateJunctionBuilder	(	NXOpen::SIM::KinematicComponent *	parent,
		NXOpen::SIM::KinematicJunction *	jct
	)

Creates a builder for a kinematic junction.

Returns: The new junction builder
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

parent	The parent component
jct	The junction to edit. If NULL, a new junction is created

NXOpen::SIM::KinematicChain* NXOpen::SIM::KinematicConfigurator::CreateKinematicChain ( )

Creates a builder for a kinematic chain.

Returns: The new kinematic chain builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::KinematicSinumerikCaBuilder* NXOpen::SIM::KinematicConfigurator::CreateKinematicSinumerikCaBuilder ( NXOpen::SIM::KinematicComponent * comp )

Creates a builder for a kinematic sinumerik ca config.

Returns: The new kinematic sinumerik ca builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

comp	the component to edit

NXOpen::SIM::NcChannelSelectionData* NXOpen::SIM::KinematicConfigurator::CreateNcChannelSelectionData ( )

Creates an NcChannelSelectionData object to which files and channels can be assigned.

This is used when constructing the builder.

Returns: The NC channel selection data
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::CAM::SimulationOptionsBuilder* NXOpen::SIM::KinematicConfigurator::CreateSimulationOptionsBuilder ( NXOpen::CAM::SimulationOptionsBuilder::DialogType dialogType )

Creates a simulation options.

Returns: The new simulation options
Created in NX8.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

dialogType The dialog type

NXOpen::SIM::SinumerikCaExportBuilder* NXOpen::SIM::KinematicConfigurator::CreateSinumerikCaExportBuilder ( )

Creates a builder for a sinumerik ca export spf.

Returns: The new sinumerik ca export builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::SinumerikCaFacetBuilder* NXOpen::SIM::KinematicConfigurator::CreateSinumerikCaFacetBuilder ( )

Creates a builder for a sinumerik ca facet.

Returns: The new sinumerik ca facet builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::SinumerikCaPlaceholderBuilder* NXOpen::SIM::KinematicConfigurator::CreateSinumerikCaPlaceholderBuilder ( )

Creates a builder for a sinumerik ca placeholder.

Returns: The new sinumerik ca placeholder builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::SinumerikCaSimplifyBodiesBuilder* NXOpen::SIM::KinematicConfigurator::CreateSinumerikCaSimplifyBodiesBuilder ( )

Creates a builder for a sinumerik ca simplify bodies.

Returns: The new sinumerik ca simplify bodies builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

NXOpen::SIM::KinematicComponent* NXOpen::SIM::KinematicConfigurator::CreateSpinningClone	(	NXOpen::SIM::KinematicComponent *	source,
		bool	combine
	)

Creates a copy of the given component and spins its assigned geometry around a spinning axis.

       For tool components, the X-axis of the tool tip junction is used as spinning axis. If none
       is defined and for other types of components, the X-axis of the WCS is used.
       The new component has the same parent as the source component.  @return  The new spinning component

Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

source	The source component.
combine	Specifies whether to combine the spinning geometries into one, or not

NXOpen::SIM::KinematicChainConfiguration* NXOpen::SIM::KinematicConfigurator::DefineKinematicChains ( )

Creates a builder for a kinematic chain configurator.

Returns: The new kinematic chain configuration builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

void NXOpen::SIM::KinematicConfigurator::DeleteAllChannels ( )

Deletes all channels from the kinematic model
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

void NXOpen::SIM::KinematicConfigurator::DeleteAllHoldingSystems ( )

Delete all holding systems from the kinematic model
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

void NXOpen::SIM::KinematicConfigurator::DeleteAxis ( NXOpen::SIM::KinematicAxis * axis )

Deletes the given axis
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

axis	the component to delete

void NXOpen::SIM::KinematicConfigurator::DeleteChannel ( const NXString & channel )

Deletes a channel name from the list of channels
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

channel The channel name to delete.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::DeleteChannel ( const char * channel )

Deletes a channel name from the list of channels
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

channel The channel name to delete.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::DeleteComponent ( NXOpen::SIM::KinematicComponent * comp )

Deletes the given component
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

comp	the component to delete

void NXOpen::SIM::KinematicConfigurator::DeleteHoldingSystem ( const NXString & holdSys )

Delete a holding system from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

holdSys The holding system to delete.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::DeleteHoldingSystem ( const char * holdSys )

Delete a holding system from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

holdSys The holding system to delete.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::DeleteJunction ( NXOpen::SIM::KinematicJunction * jct )

Deletes the given junction
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

jct	the component to delete

void NXOpen::SIM::KinematicConfigurator::DeleteModel ( )

Deletes the entire kinematic model
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

void NXOpen::SIM::KinematicConfigurator::DeleteRootComponent ( NXOpen::SIM::KinematicComponent * oldRoot )

Delete a root component from the SIM::KinematicConfigurator object
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldRoot The root component to remove

void NXOpen::SIM::KinematicConfigurator::DeleteUserClassification ( const NXString & userClass )

Deletes a user class name from the list of user classes
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

userClass The user class name to delete.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::DeleteUserClassification ( const char * userClass )

Deletes a user class name from the list of user classes
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

userClass The user class name to delete.
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::KinematicAxis* NXOpen::SIM::KinematicConfigurator::FindAxis	(	const NXString &	name,
		NXOpen::SIM::KinematicComponent **	pComp,
		NXOpen::SIM::KinematicJunction **	pJct
	)

Find the axis with the given name.

Returns: The axis, if found
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

name	The name to look for NOTE: The full Unicode character set is not supported for this parameter.
pComp	The parent component of the axis
pJct	The parent junction of the axis

NXOpen::SIM::KinematicAxis* NXOpen::SIM::KinematicConfigurator::FindAxis	(	const char *	name,
		NXOpen::SIM::KinematicComponent **	pComp,
		NXOpen::SIM::KinematicJunction **	pJct
	)

Find the axis with the given name.

Returns: The axis, if found
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

name	The name to look for NOTE: The full Unicode character set is not supported for this parameter.
pComp	The parent component of the axis
pJct	The parent junction of the axis

void NXOpen::SIM::KinematicConfigurator::FindComponentsBySystemClass	(	int	sysclass,
		std::vector< NXOpen::SIM::KinematicComponent * > &	comps
	)

Finds component which are of the given system class in bitwise

Deprecated:: Deprecated in NX8.0.3.

Use FindComponentsBySystemClass with KinematicComponentBuilder::SystemClass instead.

Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

sysclass	The system class to look for in bitwise.
comps	The found components

void NXOpen::SIM::KinematicConfigurator::FindComponentsBySystemClass	(	NXOpen::SIM::KinematicComponentBuilder::SystemClass	sysclass,
		std::vector< NXOpen::SIM::KinematicComponent * > &	comps
	)

Finds component which are of the given system class
Created in NX8.0.3.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

sysclass	The system class to look for.
comps	The found components

NXOpen::SIM::KinematicJunction* NXOpen::SIM::KinematicConfigurator::FindJunction ( const NXString & name )

Find the junction with the given name.

Returns: The junction, if found
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

name	The name to look for NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::KinematicJunction* NXOpen::SIM::KinematicConfigurator::FindJunction ( const char * name )

Find the junction with the given name.

Returns: The junction, if found
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

name	The name to look for NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::SIM::KinematicJunction* NXOpen::SIM::KinematicConfigurator::FindJunction ( NXOpen::NXObject * csys )

Finds a junction by its coordinate system.

Returns: The junction for the csys
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

csys	the csys of a junction

NXOpen::SIM::KinematicComponent* NXOpen::SIM::KinematicConfigurator::FindOwnerOfJunction ( NXOpen::SIM::KinematicJunction * jct )

Finds the SIM::KinematicComponent which is the owner of this junction.

Returns: The owning component of the junction
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

jct	The junction

NXOpen::SIM::KinematicComponent* NXOpen::SIM::KinematicConfigurator::FindParentComponent ( NXOpen::SIM::KinematicComponent * comp )

Finds the SIM::KinematicComponent which is the parent of this component.

Returns: The parent Component. NULL if comp is root component
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

comp	The component

void NXOpen::SIM::KinematicConfigurator::GetChannels ( std::vector< NXString > & channels )

Get a list of all channels
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

channels The list of channels

void NXOpen::SIM::KinematicConfigurator::GetHoldingSystems ( std::vector< NXString > & holdSys )

Get a list of all holding systems
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

holdSys The holding systems

void NXOpen::SIM::KinematicConfigurator::GetJunctionNames ( std::vector< NXString > & junctions )

Gets a list of all junction names in the kinematic
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

junctions The list of junction names

void NXOpen::SIM::KinematicConfigurator::GetJunctions ( std::vector< NXOpen::SIM::KinematicJunction * > & junctions )

Gets a list of all junctions in the kinematic
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

junctions The list of junctions

void NXOpen::SIM::KinematicConfigurator::GetUserClassifications ( std::vector< NXString > & uClasses )

Get a list of all user classes
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

uClasses The list of user classes

void NXOpen::SIM::KinematicConfigurator::InsertRootComponent ( NXOpen::SIM::KinematicComponent * newRoot )

Adds a new root component to the SIM::KinematicConfigurator object
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

newRoot The new root component

NXOpen::SIM::IsvControlPanelBuilder* NXOpen::SIM::KinematicConfigurator::IsvControlPanelBuilder ( )

Returns the isv control panel builder
Created in NX9.0.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

void NXOpen::SIM::KinematicConfigurator::RenameChannel	(	const NXString &	oldName,
		const NXString &	newName
	)

Renames a channel name from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old channel name NOTE: The full Unicode character set is not supported for this parameter.
newName	The new channel name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::RenameChannel	(	const char *	oldName,
		const char *	newName
	)

Renames a channel name from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old channel name NOTE: The full Unicode character set is not supported for this parameter.
newName	The new channel name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::RenameHoldingSystem	(	const NXString &	oldName,
		const NXString &	newName
	)

Renames a holding system from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old holding system NOTE: The full Unicode character set is not supported for this parameter.
newName	The new holding system NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::RenameHoldingSystem	(	const char *	oldName,
		const char *	newName
	)

Renames a holding system from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old holding system NOTE: The full Unicode character set is not supported for this parameter.
newName	The new holding system NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::RenameUserClassification	(	const NXString &	oldName,
		const NXString &	newName
	)

Renames a user class name from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old user class name NOTE: The full Unicode character set is not supported for this parameter.
newName	The new user class name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::RenameUserClassification	(	const char *	oldName,
		const char *	newName
	)

Renames a user class name from the list
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder")

Parameters

oldName	The old user class name NOTE: The full Unicode character set is not supported for this parameter.
newName	The new user class name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::SIM::KinematicConfigurator::SetName ( const NXString & name )

virtual

Sets the custom name of the kinematic model
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

name	The new kinematic model name

Reimplemented from NXOpen::NXObject.

void NXOpen::SIM::KinematicConfigurator::SetName ( const char * name )

Sets the custom name of the kinematic model
Created in NX7.5.0.

License requirements : ug_isv_full ("Full functionality for Integrated Simulation and Verification") OR nx_isv_mtb ("Machine Tool Builder") OR resource_manager_nx ("Teamcenter Resource Manager")

Parameters

name	The new kinematic model name

The documentation for this class was generated from the following file:

SIM_KinematicConfigurator.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
