Builder class to assigns style to the selected stock . More...

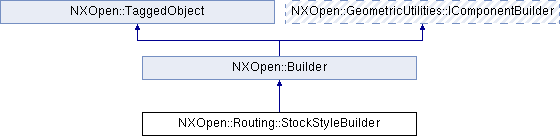

Inheritance diagram for NXOpen::Routing::StockStyleBuilder:

Public Types
enum	StockStyle { StockStyleCenterline, StockStyleSimpleSolid, StockStyleDetailedSolid }
	Enum to define the stock style. More...

Public Member Functions
NXOpen::Routing::StockStyleBuilder::StockStyle	EnumStockStyle ()
	Returns the enum for setting stock style Created in NX6.0.0.

NXOpen::Routing::RouteObjectCollector *	RouteSelectionStock ()
	Returns the route selection stock for selecting routing objects Created in NX6.0.0.

void	SetEnumStockStyle (NXOpen::Routing::StockStyleBuilder::StockStyle enumStockStyle)
	Sets the enum for setting stock style Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder class to assigns style to the selected stock .

To create a new instance of this class, use Routing::RouteManager::CreateStockStyleBuilder
Default values.

Property

Value

EnumStockStyle

SimpleSolid

Created in NX6.0.0.

Member Enumeration Documentation

Enum to define the stock style.

Enumerator:

NXOpen::Routing::StockStyleBuilder::StockStyle NXOpen::Routing::StockStyleBuilder::EnumStockStyle ( )

Returns the enum for setting stock style
Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::RouteObjectCollector* NXOpen::Routing::StockStyleBuilder::RouteSelectionStock ( )

Returns the route selection stock for selecting routing objects
Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::StockStyleBuilder::SetEnumStockStyle ( NXOpen::Routing::StockStyleBuilder::StockStyle enumStockStyle )

Sets the enum for setting stock style
Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

enumStockStyle enumstockstyle
