Represents a Routing::StockColorBuilder . More...

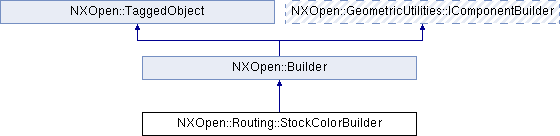

Inheritance diagram for NXOpen::Routing::StockColorBuilder:
Public Member Functions | |
| NXOpen::NXColor * | RouteStockPickColor () |
| Returns the route stock pick color Created in NX7.5.0. | |
| NXOpen::ScCollector * | RouteStockSelectStockFace () |
| Returns the route stock select stock face Created in NX7.5.0. | |
| void | SetRouteStockPickColor (NXOpen::NXColor *routeStockPickColor) |
| Sets the route stock pick color Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Routing::StockColorBuilder .
This is used to assign color to the face of stocks having rectangular cross section.
To create a new instance of this class, use Routing::RouteManager::CreateStockColorBuilder
Created in NX7.5.0.
Member Function Documentation
| NXOpen::NXColor* NXOpen::Routing::StockColorBuilder::RouteStockPickColor | ( | ) |
Returns the route stock pick color
Created in NX7.5.0.
License requirements : routing_harness ("Routing Harness")
| NXOpen::ScCollector* NXOpen::Routing::StockColorBuilder::RouteStockSelectStockFace | ( | ) |
Returns the route stock select stock face
Created in NX7.5.0.
License requirements : routing_harness ("Routing Harness")
| void NXOpen::Routing::StockColorBuilder::SetRouteStockPickColor | ( | NXOpen::NXColor * | routeStockPickColor | ) |
Sets the route stock pick color
Created in NX7.5.0.
License requirements : routing_harness ("Routing Harness")
- Parameters
-
routeStockPickColor routestockpickcolor
The documentation for this class was generated from the following file:
- Routing_StockColorBuilder.hxx
