Builder class for stock browser . More...

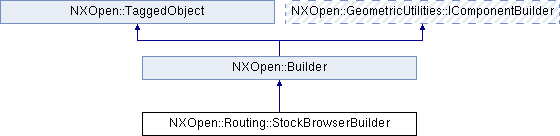

Inheritance diagram for NXOpen::Routing::StockBrowserBuilder:

Public Types
enum	TypeFilter { TypeFilterAll, TypeFilterStock, TypeFilterOverStock, TypeFilterFillerStock, TypeFilterSpaceReservation, TypeFilterFittingOverstock }
	Filter type. More...

Public Member Functions
void	DeleteStocks (const std::vector< NXOpen::NXObject * > &objects)
	Deletes the given Routing::Stock or Routing::FittingOverstock Created in NX6.0.0.

NXOpen::Routing::StockBrowserBuilder::TypeFilter	FilterType ()
	Returns the stock type filter which defines the type of stock Created in NX6.0.0.

void	GetSortedList (std::vector< NXOpen::NXObject * > &objects)
	Get the filtered stock object list Created in NX6.0.0.

NXString	NameFilter ()
	Returns the stock name filter which defines filter to name stock Created in NX6.0.0.

void	SetFilterType (NXOpen::Routing::StockBrowserBuilder::TypeFilter stockTypeFilter)
	Sets the stock type filter which defines the type of stock Created in NX6.0.0.

void	SetNameFilter (const NXString &stockNameFilter)
	Sets the stock name filter which defines filter to name stock Created in NX6.0.0.

void	SetNameFilter (const char *stockNameFilter)
	Sets the stock name filter which defines filter to name stock Created in NX6.0.0.

void	SetSortedList (const std::vector< NXOpen::NXObject * > &objects)
	Set the filtered stock object list when filter type is changed.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder class for stock browser .

To create a new instance of this class, use Routing::RouteManager::CreateStockBrowserBuilder
Default values.

Property

Value

FilterType

All

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Routing::StockBrowserBuilder::TypeFilter

Filter type.

Enumerator:

TypeFilterAll	All Stocks.
TypeFilterStock	Stock.
TypeFilterOverStock	Overstock.
TypeFilterFillerStock	Filler Stock.
TypeFilterSpaceReservation	Space Reservation.
TypeFilterFittingOverstock	fitting overstock

Member Function Documentation

void NXOpen::Routing::StockBrowserBuilder::DeleteStocks ( const std::vector< NXOpen::NXObject * > & objects )

Deletes the given Routing::Stock or Routing::FittingOverstock
Created in NX6.0.0.
