The Routing SBendCorner defines a S-Bend. More...

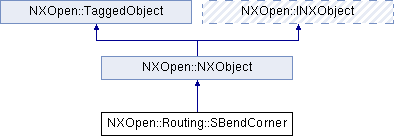

Inheritance diagram for NXOpen::Routing::SBendCorner:

Public Member Functions
bool	GetSBendData (int sbendType, NXOpen::Routing::ControlPoint startRcp, NXOpen::Routing::ControlPoint endRcp, NXOpen::Routing::SplineSegment segment, double radiusOrRatio)
	Returns the data for the S-Bend object.

double	GetSBendRadius ()
	Gets the S-Bend radius of a S-Bend corner.

std::vector < NXOpen::Routing::Stock * >	GetSBendStocks ()
	Returns an array of stocks for the S-Bend object.

NXOpen::Routing::SplineSegment *	GetSegment ()
	Gets the segment being used to represent the S-Bend.

void	SetSBendData (int sbendType, NXOpen::Routing::ControlPoint startRcp, NXOpen::Routing::ControlPoint endRcp, NXOpen::Routing::SplineSegment *segment, double radiusOrRatio, bool useBendRatio)
	Set the data for the S-Bend object Created in NX4.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

The Routing SBendCorner defines a S-Bend.

There are 5 possible S-bend types.
The UI input is two work part line segment-ending RCPs, each of which implicitly provides a 3D point and vector. An S-bend heals the separation between the two segments with a C1 continuous spline segment.

To disambiguate among 5 S-bend types (see below), the user may need to further indicate whether the S-bend starts bending immediately at the end of one or both of the 2 input segments. Some arrangements of 2 segments do not require further user input to disambiguate among the possible S-bend types.

The direction vectors of the 2 input segments must either be perpendicular (types 1,2,3) or parallel (types 4,5).

The closest distance between the (infinite) lines containing the input segments must be less that twice the bend radius. If this condition does not hold, then 2 right angle bends could connect the 2 input segments, i.e., an S-bend is unnecessary.

Every S-bend has two bends, whose radii are always equal. Except for type 2 and 3, the bend angles are equal and in the range [ Pi/4, Pi/2 ].

S-bends never cause a cutback of an input segment, although type 1,2,4 S-bends may add a straight line extension to one of the segment ends before the bending starts. Type 1 S-bends may add a straight line extension to both segment ends.

INPUT

R bend radius, which the user supplies, e.g., from a bend table.
P1 Work part X,Y,Z of segment 1's end.
Vec1 Tangent at P1, pointing toward the open end of the segment.
P2, Vec2 Similar to segment 1 above...

For computation solving purposes, the above input becomes a bend radius, height, width, and possibly a depth.

OUTPUT bend angle(s):

a (alpha) (all S-bend types)
g (gamma) (Type 3 only)
Extension lengths, if any.

Bend angles are computed at the centers of the bend arcs

S-bends fall into two categories:

End tangents are perpendicular.

Three types are possible. In the 3D diagrams below:

The constructor line, AB, is the perpendicular distance between the lines that the segments define.
- Height (H): length of A-B
- Depth (D): length of A-P1
- Width (W): length of B-P2
The A-B, A-P1, B-P2 vectors are mutually perpendicular.
- Type 1: does not have a middle straight line portion.
  /

  / seg1

  P1 /

  /

  /

  /

  / /

  / :

  A / :

  | :

  | ,

  | , \<---- bends meet (no straight segment)

  | :

  | :

  | `-,

  | ``-,_

  +------------------`-*------------

  B P2 seg2

  The bend from segment 2 lies in the plane A,B,P2. The bend from segment 1 is always 90 degrees, and thus terminates somewhere in the plane A,B,P2. The bend from segment 1 always starts on an extension of segment 1 that is a distance R from A.

  Segment 2 may also have to extend toward B before its bend starts.

  Geometrically, the height is the sum of the vertical components of bend 1 and bend 2.
- Type 2: middle straight line portion

  /

  / seg1

  P1 /

  /

  /

  /

  / /

  / :

  A / :

  | :

  | \

  | \ \<---- straight segment

  | \

  | \ \<----- bend ends

  | `-,

  | ``-,_

  +------------------`-*------------

  B P2 seg2

  Similar to Type 1:

  The bend from segment 2 lies in the plane A,B,P2.
```
  <br>  The bend from segment 1 is always 90 degrees, and thus
 terminates somewhere in the plane A,B,P2. <br>

  <br>  The bend from segment 1 always starts on an extension of
 segment 1 that is a distance R from A. <br>
```
  Unlike Type 1:

  Segment 2's bend always starts at P2, i.e., segment 2 never has an extension.
- Type 3: middle straight line portion. user chooses between Type 2-3.

  /

  / seg1

  P1 /

  / '

  / '

  / : \<---- segment 1's bend ends

  / |

  / |

  A / |

  | | <--- straight segment

  | |

  | |

  | |

  | |

  | \ <---- segment 2's bend ends

  | `-,_

  +----------------`-*------------

  B P2 seg2

  The bend radius isn't big enough to span the height so a middle straight line segment is necessary.

  Neither segment can have an extension, i.e., the bends start at P1 and P2. Unlike in Type 2, segment 2's bend does not lie in the plane A,B,P2, i.e., both bends immediately start bending toward each other.
End tangents are parallel, i.e., bend lies entirely within a plane. This category falls into two types.
- Type 4: no middle straight line portion

  seg1 P1

  ------------*-.

  `.

  : \<--- where bends meet

  `,

  `-*---------*--------

  A E2 P2 seg2

  The height, H, is length (A-P1), where A is the projection of P1 onto the line that seg2 defines.

  Because both bend angles are the same, the bends meet at half the height H/2.
- Type 5: middle straight line portion
  seg1 P1

  ------------*-.

  `.

  \

  \ \<--- middle straight line segment

  \

  `.

  `-*------------

  A P2 seg2

  The height, H, is length (A-P1), where A is the projection of P1 onto the line that seg2 defines. The width, W, is the A-P2 length.

Support Information:

o An extension as described above is the distance leading up to the bend arc.

Use the Routing::SBendCornerCollection to obtain an instance.

Created in NX4.0.0.

Member Function Documentation

bool NXOpen::Routing::SBendCorner::GetSBendData	(	int *	sbendType,
		NXOpen::Routing::ControlPoint **	startRcp,
		NXOpen::Routing::ControlPoint **	endRcp,
		NXOpen::Routing::SplineSegment **	segment,
		double *	radiusOrRatio
	)

Returns the data for the S-Bend object.

Returns: TRUE: if bend ratio is used; FALSE: otherwise.
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

sbendType	S-Bend type
startRcp	S-Bend start Control point
endRcp	S-Bend end Control point
segment	S-Bend segment
radiusOrRatio	Bend radius or bend_ratio.

double NXOpen::Routing::SBendCorner::GetSBendRadius ( )

Gets the S-Bend radius of a S-Bend corner.

Returns: Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

std::vector<NXOpen::Routing::Stock *> NXOpen::Routing::SBendCorner::GetSBendStocks ( )

Returns an array of stocks for the S-Bend object.

Returns: Stock objects of the S-Bend corner.
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

NXOpen::Routing::SplineSegment* NXOpen::Routing::SBendCorner::GetSegment ( )

Gets the segment being used to represent the S-Bend.

Returns: Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

void NXOpen::Routing::SBendCorner::SetSBendData	(	int	sbendType,
		NXOpen::Routing::ControlPoint *	startRcp,
		NXOpen::Routing::ControlPoint *	endRcp,
		NXOpen::Routing::SplineSegment *	segment,
		double	radiusOrRatio,
		bool	useBendRatio
	)

Set the data for the S-Bend object
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

sbendType	S-Bend type
startRcp	The start Control point for the S-Bend.
endRcp	The end Control point for the S-Bend.
segment	S-Bend segment
radiusOrRatio	S-Bend radius or bend_ratio.
useBendRatio	TRUE: if bend ratio is used; FALSE: otherwise.

The documentation for this class was generated from the following file:

Routing_SBendCorner.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Support Information:

Member Function Documentation
