The abstract class Routing::InterfaceTerminalRelationshipBase relates many Routing::Port s to one Routing::Port . More...

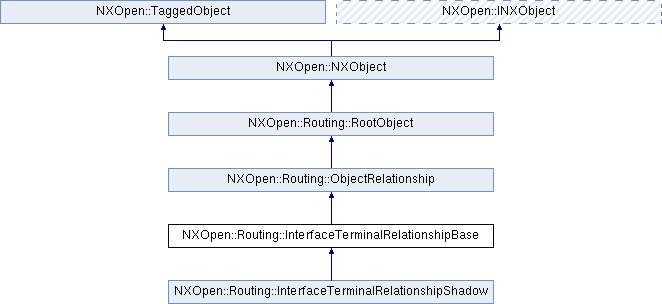

Inheritance diagram for NXOpen::Routing::InterfaceTerminalRelationshipBase:

Public Types
enum	RelationType { RelationTypeDecomposition }
	Type of interface terminal relationships as per STEP 212 Standards. More...

Public Member Functions
void	AddRelatedInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatedInterfaceTerminal)
	Adds a Routing::Port to the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.

std::vector < NXOpen::Routing::InterfaceTerminalShadow * >	GetRelatedInterfaceTerminals ()
	Gets the list of Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.

NXOpen::Routing::InterfaceTerminalShadow *	GetRelatingInterfaceTerminal ()
	Gets the Routing::Port in the Routing::InterfaceTerminalRelationshipBase with a relationship of relating.

NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType	RelationshipType ()
	Returns the type of the Routing::InterfaceTerminalRelationshipBase object.

void	RemoveRelatedInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatedInterfaceTerminal)
	Removes a related Routing::Port from the list of related terminals in the Routing::InterfaceTerminalRelationshipBase object.

void	ReplaceRelatedInterfaceTerminals (const std::vector< NXOpen::Routing::InterfaceTerminalShadow * > &relatedInterfaceTerminals)
	Replaces the existing related Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with input ones.

void	SetRelatingInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatingInterfaceTerminal)
	Created in NX4.0.2.

void	SetRelationshipType (NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType relationshipType)
	Sets the type of the Routing::InterfaceTerminalRelationshipBase object.

Detailed Description

The abstract class Routing::InterfaceTerminalRelationshipBase relates many Routing::Port s to one Routing::Port .

    <br>
   See NX Routing help for the Connectivity data model documentation.
    <br>
<br> Creator not available in KF.  <br>

Created in NX4.0.2.

Member Enumeration Documentation

enum NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType

Type of interface terminal relationships as per STEP 212 Standards.

       Currently, only decomposition is implemented, other types will be added
       in future releases as required.

Created in NX4.0.2.

Enumerator:

RelationTypeDecomposition

decomposition

Member Function Documentation

void NXOpen::Routing::InterfaceTerminalRelationshipBase::AddRelatedInterfaceTerminal ( NXOpen::Routing::InterfaceTerminalShadow * relatedInterfaceTerminal )

Adds a Routing::Port to the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

relatedInterfaceTerminal related interface terminal

std::vector<NXOpen::Routing::InterfaceTerminalShadow *> NXOpen::Routing::InterfaceTerminalRelationshipBase::GetRelatedInterfaceTerminals ( )

Gets the list of Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.

        <br>
       A @link Routing::InterfaceTerminalRelationshipBase Routing::InterfaceTerminalRelationshipBase@endlink  object can have one or more related @link Routing::Port Routing::Port@endlink s
       associated with a single relating @link Routing::Port Routing::Port@endlink .
        <br>
    @return

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::InterfaceTerminalShadow* NXOpen::Routing::InterfaceTerminalRelationshipBase::GetRelatingInterfaceTerminal ( )

Gets the Routing::Port in the Routing::InterfaceTerminalRelationshipBase with a relationship of relating.

        <br>
       A @link Routing::InterfaceTerminalRelationshipBase Routing::InterfaceTerminalRelationshipBase@endlink  object can have only one relating @link Routing::Port Routing::Port@endlink
       associated with one or more related @link Routing::Port Routing::Port@endlink s.
        <br>
    @return

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationshipType ( )

Returns the type of the Routing::InterfaceTerminalRelationshipBase object.

        <br>
       Interface Terminal Relationship can be of following types:
       @link Routing::InterfaceTerminalRelationshipBase::RelationTypeDecomposition Routing::InterfaceTerminalRelationshipBase::RelationTypeDecomposition@endlink
        <br>

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::InterfaceTerminalRelationshipBase::RemoveRelatedInterfaceTerminal ( NXOpen::Routing::InterfaceTerminalShadow * relatedInterfaceTerminal )

Removes a related Routing::Port from the list of related terminals in the Routing::InterfaceTerminalRelationshipBase object.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

relatedInterfaceTerminal related interface terminal

void NXOpen::Routing::InterfaceTerminalRelationshipBase::ReplaceRelatedInterfaceTerminals ( const std::vector< NXOpen::Routing::InterfaceTerminalShadow * > & relatedInterfaceTerminals )

Replaces the existing related Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with input ones.

        <br>
       Removes all the related @link Routing::Port Routing::Port@endlink s in a relationship and replaces them with the set
       of input @link Routing::Port Routing::Port@endlink s.
        <br>

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

relatedInterfaceTerminals related interface terminals

void NXOpen::Routing::InterfaceTerminalRelationshipBase::SetRelatingInterfaceTerminal ( NXOpen::Routing::InterfaceTerminalShadow * relatingInterfaceTerminal )

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

relatingInterfaceTerminal relating interface terminal

void NXOpen::Routing::InterfaceTerminalRelationshipBase::SetRelationshipType ( NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType relationshipType )

Sets the type of the Routing::InterfaceTerminalRelationshipBase object.

        <br>
       Interface Terminal Relationship can be of following types:
       @link Routing::InterfaceTerminalRelationshipBase::RelationTypeDecomposition Routing::InterfaceTerminalRelationshipBase::RelationTypeDecomposition@endlink
        <br>

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

relationshipType relationship type

The documentation for this class was generated from the following file:

Routing_InterfaceTerminalRelationshipBase.hxx
