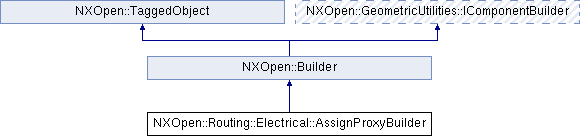

Inheritance diagram for NXOpen::Routing::Electrical::AssignProxyBuilder:

Public Member Functions
NXOpen::Point *	Point ()
	Returns the position of the proxy port to be created.

void	SetPoint (NXOpen::Point *point)
	Sets the position of the proxy port to be created.

void	SetVector (NXOpen::Direction *vector)
	Sets the direction of the proxy port to be created.

NXOpen::Direction *	Vector ()
	Returns the direction of the proxy port to be created.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is used to create a proxy port and assign it to a connector.
To create a new instance of this class, use Routing::RouteManager::CreateAssignProxyBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::Point* NXOpen::Routing::Electrical::AssignProxyBuilder::Point ( )

Returns the position of the proxy port to be created.

Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::Electrical::AssignProxyBuilder::SetPoint ( NXOpen::Point * point )

Sets the position of the proxy port to be created.

Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

point point

void NXOpen::Routing::Electrical::AssignProxyBuilder::SetVector ( NXOpen::Direction * vector )

Sets the direction of the proxy port to be created.

Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

vector vector

NXOpen::Direction* NXOpen::Routing::Electrical::AssignProxyBuilder::Vector ( )

Returns the direction of the proxy port to be created.

Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

The documentation for this class was generated from the following file:
