NXOpen::Routing::DesignRuleViolation Class Reference

Represents Routing::DesignRuleViolation object
Design Rule Violation object is created automatically during design rule check

Created in NX4.0.2. More...

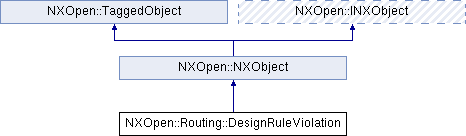

Inheritance diagram for NXOpen::Routing::DesignRuleViolation:

Public Types
enum	BlankOption { BlankOptionBlank, BlankOptionUnblank }
	Design Rule Violation Location Object Blank Option. More...
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
void	AddObjects (const std::vector< NXOpen::Routing::DesignRuleViolation * > &objects)
	Add an object in violation to the violation Created in NX4.0.2.
void	AddViolationLocations (const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &locationObjects)
	This will add given number of violation location objects.
void	BlankLocationObjectsOfViolation (NXOpen::Routing::DesignRuleViolation::BlankOption blankOption)
	This function will blank location objects of given violation.
void	DeleteRuleOverride (NXOpen::Routing::DesignRuleOverride *deleteObject)
	Override object will be deleted Created in NX4.0.3.
std::vector < NXOpen::Routing::DesignRuleViolationLocation * >	GetLocations ()
	This will give all violation location objects stored in calling violation object.
std::vector< NXOpen::NXObject * >	GetObjects ()
	Get the array of objects in violation.
NXOpen::Routing::DesignRuleViolationLocation *	GetViolationLocation (int *arrayPosition)
	This will return violation location object stored at given postion of array.
bool	IsRuleOverridden ()
	Violation is overridden or not is inquired.
NXString	LongDescription ()
	Returns the long description of the design rule violation is returned Created in NX4.0.0.
NXOpen::Routing::DesignRuleOverride *	Override ()
	Returns the override object for the violation is inquired Created in NX4.0.2.
void	RemoveViolationOverride ()
	Removes violation override from given violation object.
void	SetLocations (const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &violationLocations)
	Created in NX6.0.0.
void	SetLongDescription (const NXString &longDescription)
	Sets the long description of the design rule violation is returned Created in NX4.0.2.
void	SetLongDescription (const char *longDescription)
	Sets the long description of the design rule violation is returned Created in NX4.0.2.
void	SetObjects (const std::vector< NXOpen::NXObject * > &objects)
	Sets the array of objects in violation Created in NX4.0.2.
void	SetOverride (NXOpen::Routing::DesignRuleOverride *overrideTag)
	Sets the override object for the violation is inquired Created in NX4.0.2.
void	SetShortDescription (const NXString &shortDescription)
	Sets the short description of the design rule violation is returned Created in NX4.0.0.
void	SetShortDescription (const char *shortDescription)
	Sets the short description of the design rule violation is returned Created in NX4.0.0.
void	SetTimeStamp (int timeStamp)
	Sets the date/time stamp of the violation is inquired Created in NX4.0.2.
void	SetViolationLocation (int arrayPosition, NXOpen::Routing::DesignRuleViolationLocation *locationObject)
	This will set violation location object at given postion of array.
void	SetViolationOverride (const NXString &user, const NXString &reason, int timestamp)
	Sets the violation override Created in NX4.0.2.
void	SetViolationOverride (const char *user, const char *reason, int timestamp)
	Sets the violation override Created in NX4.0.2.
NXString	ShortDescription ()
	Returns the short description of the design rule violation is returned Created in NX4.0.2.
int	TimeStamp ()
	Returns the date/time stamp of the violation is inquired Created in NX4.0.2.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents Routing::DesignRuleViolation object
Design Rule Violation object is created automatically during design rule check

Created in NX4.0.2.

Member Enumeration Documentation

enum NXOpen::Routing::DesignRuleViolation::BlankOption

Design Rule Violation Location Object Blank Option.

Enumerator:

BlankOptionBlank	blank
BlankOptionUnblank	unblank

Member Function Documentation

void NXOpen::Routing::DesignRuleViolation::AddObjects

(

const std::vector< NXOpen::Routing::DesignRuleViolation * > &

objects

)

Add an object in violation to the violation
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

objects

objects

void NXOpen::Routing::DesignRuleViolation::AddViolationLocations

(

const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &

locationObjects

)

This will add given number of violation location objects.

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

locationObjects

Array of violation locations to be added.

void NXOpen::Routing::DesignRuleViolation::BlankLocationObjectsOfViolation

(

NXOpen::Routing::DesignRuleViolation::BlankOption

blankOption

)

This function will blank location objects of given violation.

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

blankOption

blank option

void NXOpen::Routing::DesignRuleViolation::DeleteRuleOverride

(

NXOpen::Routing::DesignRuleOverride *

deleteObject

)

Override object will be deleted
Created in NX4.0.3.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

deleteObject

deleteobject

std::vector<NXOpen::Routing::DesignRuleViolationLocation *> NXOpen::Routing::DesignRuleViolation::GetLocations

(

)

This will give all violation location objects stored in calling violation object.

Returns

Array of Routing::DesignRuleViolationLocation object.
Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::NXObject *> NXOpen::Routing::DesignRuleViolation::GetObjects

(

)

Get the array of objects in violation.

Returns

Caller frees the array
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::DesignRuleViolationLocation* NXOpen::Routing::DesignRuleViolation::GetViolationLocation

(

int *

arrayPosition

)

This will return violation location object stored at given postion of array.

       If there is no object at the given position, it will give appropriate message.
       and return NULL  @return  ViolationLocation object at given array position.

Deprecated:

Deprecated in NX8.0.3. Use Routing::DesignRuleViolation::GetLocations instead.

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

arrayPosition

array position

bool NXOpen::Routing::DesignRuleViolation::IsRuleOverridden

(

)

Violation is overridden or not is inquired.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXString NXOpen::Routing::DesignRuleViolation::LongDescription

(

)

Returns the long description of the design rule violation is returned
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::DesignRuleOverride* NXOpen::Routing::DesignRuleViolation::Override

(

)

Returns the override object for the violation is inquired
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::DesignRuleViolation::RemoveViolationOverride

(

)

Removes violation override from given violation object.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::DesignRuleViolation::SetLocations

(

const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &

violationLocations

)

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

violationLocations

violationlocations

void NXOpen::Routing::DesignRuleViolation::SetLongDescription

(

const NXString &

longDescription

)

Sets the long description of the design rule violation is returned
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

longDescription

long description

void NXOpen::Routing::DesignRuleViolation::SetLongDescription

(

const char *

longDescription

)

Sets the long description of the design rule violation is returned
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

longDescription

long description

void NXOpen::Routing::DesignRuleViolation::SetObjects

(

const std::vector< NXOpen::NXObject * > &

objects

)

Sets the array of objects in violation
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

objects

Caller frees the array

void NXOpen::Routing::DesignRuleViolation::SetOverride

(

NXOpen::Routing::DesignRuleOverride *

overrideTag

)

Sets the override object for the violation is inquired
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

overrideTag

overridetag

void NXOpen::Routing::DesignRuleViolation::SetShortDescription

(

const NXString &

shortDescription

)

Sets the short description of the design rule violation is returned
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

shortDescription

short description

void NXOpen::Routing::DesignRuleViolation::SetShortDescription

(

const char *

shortDescription

)

Sets the short description of the design rule violation is returned
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

shortDescription

short description

void NXOpen::Routing::DesignRuleViolation::SetTimeStamp

(

int

timeStamp

)

Sets the date/time stamp of the violation is inquired
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

timeStamp

time stamp

void NXOpen::Routing::DesignRuleViolation::SetViolationLocation	(	int	arrayPosition,
		NXOpen::Routing::DesignRuleViolationLocation *	locationObject
	)

This will set violation location object at given postion of array.

       If there is already an object at the given position, it will delete that
       object and set with new one.

Deprecated:

Deprecated in NX8.0.3. Use Routing::DesignRuleViolation::AddViolationLocations instead.

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

arrayPosition	array position
locationObject	ViolationLocation object to be set at given array position.

void NXOpen::Routing::DesignRuleViolation::SetViolationOverride	(	const NXString &	user,
		const NXString &	reason,
		int	timestamp
	)

Sets the violation override
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

user	NOTE: The full Unicode character set is not supported for this parameter.
reason	NOTE: The full Unicode character set is not supported for this parameter.
timestamp	timestamp

void NXOpen::Routing::DesignRuleViolation::SetViolationOverride	(	const char *	user,
		const char *	reason,
		int	timestamp
	)

Sets the violation override
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

user	NOTE: The full Unicode character set is not supported for this parameter.
reason	NOTE: The full Unicode character set is not supported for this parameter.
timestamp	timestamp

NXString NXOpen::Routing::DesignRuleViolation::ShortDescription

(

)

Returns the short description of the design rule violation is returned
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

int NXOpen::Routing::DesignRuleViolation::TimeStamp

(

)

Returns the date/time stamp of the violation is inquired
Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

---

The documentation for this class was generated from the following file:

• Routing_DesignRuleViolation.hxx
