NXOpen::PDM::IAttributeGroupOwner Class Reference

An interface class for objects that own attribute groups. More...

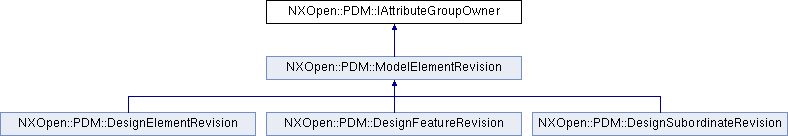

Inheritance diagram for NXOpen::PDM::IAttributeGroupOwner:

Public Member Functions
virtual NXOpen::PDM::AttributeGroup *	Create (NXOpen::PDM::AttributeGroupDescription *attributeGroupDescription)=0
	Creates an attribute group for a PDM::IAttributeGroupOwner , based on an attribute group type.
virtual NXOpen::PDM::AttributeGroupReviseBuilder *	CreateAttributeGroupReviseBuilder (const std::vector< NXOpen::PDM::AttributeGroup * > &attributeGroups)=0
	Creates a PDM::AttributeGroupReviseBuilder object.
virtual std::vector < NXOpen::PDM::AttributeGroupDescription * >	GetAttributeGroupDescriptions ()=0
	Returns the PDM::AttributeGroupDescription objects representing the attribute group types supported by this object.
virtual std::vector < NXOpen::PDM::AttributeGroup * >	GetAttributeGroups ()=0
	Returns the PDM::AttributeGroup objects owned by this object.

Detailed Description

An interface class for objects that own attribute groups.

Created in NX9.0.0.

Member Function Documentation

virtual NXOpen::PDM::AttributeGroup* NXOpen::PDM::IAttributeGroupOwner::Create ( NXOpen::PDM::AttributeGroupDescription *  attributeGroupDescription )

pure virtual

Creates an attribute group for a PDM::IAttributeGroupOwner , based on an attribute group type.

An attribute group type is represented by an PDM::AttributeGroupDescription .

Returns

The new attribute group.
Created in NX9.0.0.

License requirements : None

Parameters

attributeGroupDescription

attributegroupdescription

Implemented in NXOpen::PDM::ModelElementRevision.

virtual NXOpen::PDM::AttributeGroupReviseBuilder* NXOpen::PDM::IAttributeGroupOwner::CreateAttributeGroupReviseBuilder ( const std::vector< NXOpen::PDM::AttributeGroup * > &  attributeGroups )

pure virtual

Creates a PDM::AttributeGroupReviseBuilder object.

The builder creates a revision for each attribute group in the input list of existing attribute groups.

Returns

Created in NX9.0.0.

License requirements : None

Parameters

attributeGroups

attributegroups

Implemented in NXOpen::PDM::ModelElementRevision.

virtual std::vector<NXOpen::PDM::AttributeGroupDescription *> NXOpen::PDM::IAttributeGroupOwner::GetAttributeGroupDescriptions ( )

pure virtual

Returns the PDM::AttributeGroupDescription objects representing the attribute group types supported by this object.

Returns

Created in NX9.0.0.

License requirements : None

Implemented in NXOpen::PDM::ModelElementRevision.

virtual std::vector<NXOpen::PDM::AttributeGroup *> NXOpen::PDM::IAttributeGroupOwner::GetAttributeGroups ( )

pure virtual

Returns the PDM::AttributeGroup objects owned by this object.

Returns

Created in NX9.0.0.

License requirements : None

Implemented in NXOpen::PDM::ModelElementRevision.

---

The documentation for this class was generated from the following file:

• PDM_IAttributeGroupOwner.hxx
