NXOpen::PasteSpecialBuilder Class Reference

Represents a PasteSpecialBuilder
To create a new instance of this class, use ClipboardOperationsManager::CreatePasteSpecialBuilder
Default values. More...

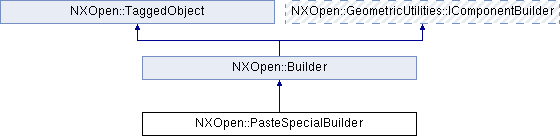

Inheritance diagram for NXOpen::PasteSpecialBuilder:

Public Types
enum	DestinationOption { DestinationOptionWcs, DestinationOptionCsys }
	This enum represents the paste ppecial destination coordinate system options. More...
enum	LayerOption { LayerOptionWork, LayerOptionOriginal, LayerOptionSpecified }
	This enum represents the paste special layer options. More...

Public Member Functions
NXOpen::CoordinateSystem *	Csys ()
	Returns the destination coordinate system Created in NX5.0.0.
NXOpen::PasteSpecialBuilder::DestinationOption	DestinationOpt ()
	Returns the destination coordinate system option Created in NX5.0.0.
int	LayerNumber ()
	Returns the layer number Created in NX5.0.0.
NXOpen::PasteSpecialBuilder::LayerOption	LayerOpt ()
	Returns the layer option Created in NX5.0.0.
void	SetCsys (NXOpen::CoordinateSystem *csys)
	Sets the destination coordinate system Created in NX5.0.0.
void	SetDestinationOpt (NXOpen::PasteSpecialBuilder::DestinationOption destinationOpt)
	Sets the destination coordinate system option Created in NX5.0.0.
void	SetLayerNumber (int layerNumber)
	Sets the layer number Created in NX5.0.0.
void	SetLayerOpt (NXOpen::PasteSpecialBuilder::LayerOption layerOpt)
	Sets the layer option Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a PasteSpecialBuilder
To create a new instance of this class, use ClipboardOperationsManager::CreatePasteSpecialBuilder
Default values.

Property	Value
DestinationOpt	Csys
LayerOpt	Work

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::PasteSpecialBuilder::DestinationOption

This enum represents the paste ppecial destination coordinate system options.

Enumerator:

DestinationOptionWcs	wcs
DestinationOptionCsys	csys

enum NXOpen::PasteSpecialBuilder::LayerOption

This enum represents the paste special layer options.

Enumerator:

LayerOptionWork	work
LayerOptionOriginal	original
LayerOptionSpecified	specified

Member Function Documentation

NXOpen::CoordinateSystem* NXOpen::PasteSpecialBuilder::Csys

(

)

Returns the destination coordinate system
Created in NX5.0.0.

License requirements : None

NXOpen::PasteSpecialBuilder::DestinationOption NXOpen::PasteSpecialBuilder::DestinationOpt

(

)

Returns the destination coordinate system option
Created in NX5.0.0.

License requirements : None

int NXOpen::PasteSpecialBuilder::LayerNumber

(

)

Returns the layer number
Created in NX5.0.0.

License requirements : None

NXOpen::PasteSpecialBuilder::LayerOption NXOpen::PasteSpecialBuilder::LayerOpt

(

)

Returns the layer option
Created in NX5.0.0.

License requirements : None

void NXOpen::PasteSpecialBuilder::SetCsys

(

NXOpen::CoordinateSystem *

csys

)

Sets the destination coordinate system
Created in NX5.0.0.

License requirements : None

Parameters

csys

csys

void NXOpen::PasteSpecialBuilder::SetDestinationOpt

(

NXOpen::PasteSpecialBuilder::DestinationOption

destinationOpt

)

Sets the destination coordinate system option
Created in NX5.0.0.

License requirements : None

Parameters

destinationOpt

destinationopt

void NXOpen::PasteSpecialBuilder::SetLayerNumber

(

int

layerNumber

)

Sets the layer number
Created in NX5.0.0.

License requirements : None

Parameters

layerNumber

layernumber

void NXOpen::PasteSpecialBuilder::SetLayerOpt

(

NXOpen::PasteSpecialBuilder::LayerOption

layerOpt

)

Sets the layer option
Created in NX5.0.0.

License requirements : None

Parameters

layerOpt

layeropt

---

The documentation for this class was generated from the following file:

• PasteSpecialBuilder.hxx
