NXOpen::Motion::PackagingTraceBuilder Class Reference

This is the builder class to create or edit a Trace object. More...

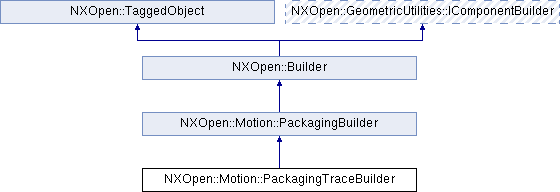

Inheritance diagram for NXOpen::Motion::PackagingTraceBuilder:

Public Types
enum	Frame { FrameAbsolute, FrameRelative }
	Trace reference frame type. More...

Public Member Functions
NXOpen::Motion::PackagingTraceBuilder::Frame	FrameType ()
	Returns the Motion::PackagingTrace reference frame type defined at NXOpen::Motion::PackagingTraceBuilder::Frame Created in NX4.0.0.
std::vector < NXOpen::DisplayableObject * >	GetRelativeLinks ()
	Returns Motion::PackagingTrace relative links.
void	SetFrameType (NXOpen::Motion::PackagingTraceBuilder::Frame fType)
	Sets the Motion::PackagingTrace reference frame type defined at NXOpen::Motion::PackagingTraceBuilder::Frame Created in NX4.0.0.
void	SetRelativeLinks (const std::vector< NXOpen::DisplayableObject * > &links)
	Sets Motion::PackagingTrace relative links.
void	SetTargetLayer (int targetLayer)
	Sets the Motion::PackagingTrace target layer Created in NX4.0.0.
int	TargetLayer ()
	Returns the Motion::PackagingTrace target layer Created in NX4.0.0.
Public Member Functions inherited from NXOpen::Motion::PackagingBuilder
bool	Enable ()
	Returns the enable flag of Packaging object.
std::vector < NXOpen::DisplayableObject * >	GetList1 ()
	Returns geometry list 1 of Packaging object.
NXString	Name ()
	Returns the name of Packaging object.
void	SetEnable (bool enable)
	Sets the enable flag of Packaging object.
void	SetList1 (const std::vector< NXOpen::DisplayableObject * > &list1)
	Sets geometry list 1.
void	SetName (const NXString &name)
	Sets the name of Packaging object.
void	SetName (const char *name)
	Sets the name of Packaging object.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is the builder class to create or edit a Trace object.

To create a new instance of this class, use Motion::PackagingCollection::CreateTraceBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::PackagingTraceBuilder::Frame

Trace reference frame type.

Enumerator:

FrameAbsolute	Traced copies positioned in absolute coordinate system.
FrameRelative	Traced copies positioned relative to selected links.

Member Function Documentation

NXOpen::Motion::PackagingTraceBuilder::Frame NXOpen::Motion::PackagingTraceBuilder::FrameType

(

)

Returns the Motion::PackagingTrace reference frame type defined at NXOpen::Motion::PackagingTraceBuilder::Frame
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

std::vector<NXOpen::DisplayableObject *> NXOpen::Motion::PackagingTraceBuilder::GetRelativeLinks

(

)

Returns Motion::PackagingTrace relative links.

Only available when frame type is NXOpen::Motion::PackagingTraceBuilder::FrameRelative .

Returns

The list pointer
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

void NXOpen::Motion::PackagingTraceBuilder::SetFrameType

(

NXOpen::Motion::PackagingTraceBuilder::Frame

fType

)

Sets the Motion::PackagingTrace reference frame type defined at NXOpen::Motion::PackagingTraceBuilder::Frame
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

fType

Trace reference frame type defined in NXOpen::Motion::PackagingTraceBuilder::Frame

void NXOpen::Motion::PackagingTraceBuilder::SetRelativeLinks

(

const std::vector< NXOpen::DisplayableObject * > &

links

)

Sets Motion::PackagingTrace relative links.

Only used when frame type is NXOpen::Motion::PackagingTraceBuilder::FrameRelative .
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

links

The list pointer

void NXOpen::Motion::PackagingTraceBuilder::SetTargetLayer

(

int

targetLayer

)

Sets the Motion::PackagingTrace target layer
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

targetLayer

Target layer

int NXOpen::Motion::PackagingTraceBuilder::TargetLayer

(

)

Returns the Motion::PackagingTrace target layer
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

---

The documentation for this class was generated from the following file:

• Motion_PackagingTraceBuilder.hxx
