NXOpen::Motion::CouplerRckpn Class Reference

Represents a motion rack and pinion object
To create or edit an instance of this class, use Motion::CouplerRckpnBuilder

Created in NX6.0.0. More...

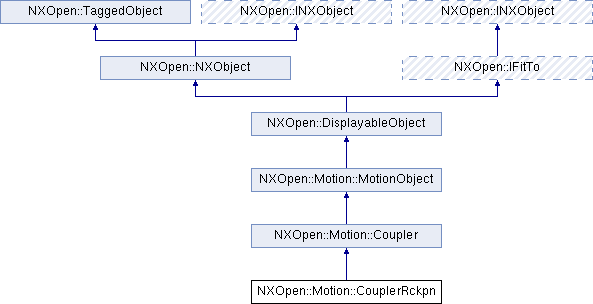

Inheritance diagram for NXOpen::Motion::CouplerRckpn:

Additional Inherited Members
Public Types inherited from NXOpen::Motion::MotionObject
enum	GroupType { GroupTypeNone, GroupTypeImport }
	The group type attribute is used for import subassembly functionality. More...
Public Member Functions inherited from NXOpen::Motion::MotionObject
double	DisplayScale ()
	Returns the display scale factor Created in NX5.0.0.
NXString	GroupName ()
	Returns the group name of motion object Created in NX5.0.0.
NXOpen::Motion::MotionObject::GroupType	GroupTypeOption ()
	Returns the group type of motion object Created in NX5.0.0.
void	SetDisplayScale (double displayScale)
	Sets the display scale factor Created in NX5.0.0.
void	SetGroupName (const NXString &groupName)
	Sets the group name of motion object Created in NX5.0.0.
void	SetGroupName (const char *groupName)
	Sets the group name of motion object Created in NX5.0.0.
void	SetGroupTypeOption (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type of motion object Created in NX5.0.0.

Detailed Description

Represents a motion rack and pinion object
To create or edit an instance of this class, use Motion::CouplerRckpnBuilder

Created in NX6.0.0.

---

The documentation for this class was generated from the following file:

• Motion_CouplerRckpn.hxx
