Represents a Mechatronics::ProxyObjectBuilder . More...

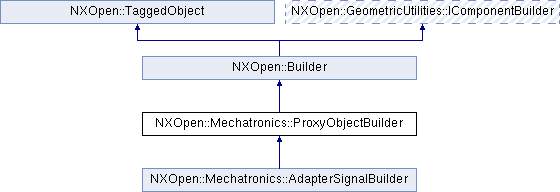

Inheritance diagram for NXOpen::Mechatronics::ProxyObjectBuilder:

Public Member Functions
NXOpen::BasePart *	Context ()
	Returns the context part of the proxy object Created in NX8.5.0.

int	MaxParamId ()
	Returns the maximum parameter id used in the proxy object Created in NX8.5.0.

NXOpen::Mechatronics::ProxyObjectParameterBuilderList *	ParameterList ()
	Returns the parameter data Created in NX8.5.0.

NXString	ProxyObjectName ()
	Returns the name of the proxy object Created in NX8.5.0.

NXOpen::SelectNXObjectList *	SelectGeomObject ()
	Returns the select geometry object that describes the proxy object Created in NX8.5.0.

NXOpen::SelectNXObjectList *	SelectPhysicsObject ()
	Returns the select physics objects that are encapsulated in the proxy object Created in NX8.5.0.

void	SetContext (NXOpen::BasePart *context)
	Sets the context part of the proxy object Created in NX8.5.0.

void	SetMaxParamId (int paramId)
	Sets the maximum parameter id used in the proxy object Created in NX8.5.0.

void	SetProxyObjectName (const NXString &proxyObjectName)
	Sets the name of the proxy object Created in NX8.5.0.

void	SetProxyObjectName (const char *proxyObjectName)
	Sets the name of the proxy object Created in NX8.5.0.

void	SetUseType (int useType)
	Sets the use type used in the proxy object Created in NX8.5.0.

int	UseType ()
	Returns the use type used in the proxy object Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::ProxyObjectBuilder .

<br> To create a new instance of this class, use @link Mechatronics::ProxyObjectCollection::CreateProxyObjectBuilder  Mechatronics::ProxyObjectCollection::CreateProxyObjectBuilder @endlink  <br>

Created in NX8.5.0.
