Represents a Mechatronics::LogicObject builder
To create a new instance of this class, use Mechatronics::LogicObjectCollection::CreateLogicObjectBuilder

Created in NX8.5.0. More...

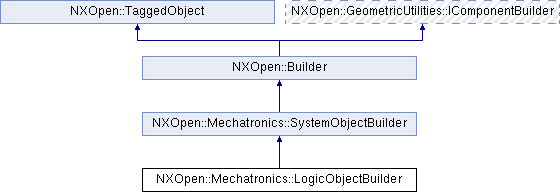

Inheritance diagram for NXOpen::Mechatronics::LogicObjectBuilder:

Classes
struct	ParameterData
	Defined Parameter Data Structure. More...

Public Member Functions
NXString	Aspect ()
	Returns the Aspect.

std::vector < NXOpen::Mechatronics::LogicObjectBuilder::ParameterData >	GetParameterData ()
	Gets the parameter data.

NXString	LetterDescription ()
	Returns the letter description.

NXString	LetterName ()
	Returns the letter name.

bool	Modified ()
	Returns the modified status.

NXOpen::NXObject *	NavigatorObject ()
	Returns the navigator object which holds the teamcenter attributes.

NXOpen::Mechatronics::ObjectInformationBuilder *	ObjectInformation ()
	Returns the object information builder, used to specify the information of logic object.

NXOpen::NXObject *	Parent ()
	Returns the parent object.

void	SetAspect (const NXString &aspect)
	Sets the Aspect.

void	SetAspect (const char *aspect)
	Sets the Aspect.

void	SetLetterDescription (const NXString &letterDescription)
	Sets the letter description.

void	SetLetterDescription (const char *letterDescription)
	Sets the letter description.

void	SetLetterName (const NXString &letterName)
	Sets the letter name.

void	SetLetterName (const char *letterName)
	Sets the letter name.

void	SetModified (bool modified)
	Sets the modified status.

void	SetParameterData (const std::vector< NXOpen::Mechatronics::LogicObjectBuilder::ParameterData > &parameterData)
	Sets the parameter data.

void	SetParent (NXOpen::NXObject *parent)
	Sets the parent object.

void	SetTypeName (const NXString &typeName)
	Sets the Type Name used for.

void	SetTypeName (const char *typeName)
	Sets the Type Name used for.

NXString	TypeName ()
	Returns the Type Name used for.

Public Member Functions inherited from NXOpen::Mechatronics::SystemObjectBuilder
NXString	InstanceName ()
	Returns the name of instance.

void	SetInstanceName (const NXString &name)
	Sets the name of instance.

void	SetInstanceName (const char *name)
	Sets the name of instance.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::LogicObject builder
To create a new instance of this class, use Mechatronics::LogicObjectCollection::CreateLogicObjectBuilder

Created in NX8.5.0.

Member Function Documentation

NXString NXOpen::Mechatronics::LogicObjectBuilder::Aspect ( )

Returns the Aspect.

Created in NX9.0.0.

License requirements : None

std::vector<NXOpen::Mechatronics::LogicObjectBuilder::ParameterData> NXOpen::Mechatronics::LogicObjectBuilder::GetParameterData ( )

Gets the parameter data.

Returns: Parameter data array
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXString NXOpen::Mechatronics::LogicObjectBuilder::LetterDescription ( )

Returns the letter description.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Mechatronics::LogicObjectBuilder::LetterName ( )

Returns the letter name.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Mechatronics::LogicObjectBuilder::Modified ( )

Returns the modified status.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::NXObject* NXOpen::Mechatronics::LogicObjectBuilder::NavigatorObject ( )

Returns the navigator object which holds the teamcenter attributes.

Created in NX8.5.0.

License requirements : None

NXOpen::Mechatronics::ObjectInformationBuilder* NXOpen::Mechatronics::LogicObjectBuilder::ObjectInformation ( )

Returns the object information builder, used to specify the information of logic object.

Created in NX8.5.0.

License requirements : None

NXOpen::NXObject* NXOpen::Mechatronics::LogicObjectBuilder::Parent ( )

Returns the parent object.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::LogicObjectBuilder::SetAspect ( const NXString & aspect )

Sets the Aspect.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

aspect aspect

void NXOpen::Mechatronics::LogicObjectBuilder::SetAspect ( const char * aspect )

Sets the Aspect.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

aspect aspect

void NXOpen::Mechatronics::LogicObjectBuilder::SetLetterDescription ( const NXString & letterDescription )

Sets the letter description.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

letterDescription Letter Description

void NXOpen::Mechatronics::LogicObjectBuilder::SetLetterDescription ( const char * letterDescription )

Sets the letter description.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

letterDescription Letter Description

void NXOpen::Mechatronics::LogicObjectBuilder::SetLetterName ( const NXString & letterName )

Sets the letter name.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

letterName Letter name

void NXOpen::Mechatronics::LogicObjectBuilder::SetLetterName ( const char * letterName )

Sets the letter name.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

letterName Letter name

void NXOpen::Mechatronics::LogicObjectBuilder::SetModified ( bool modified )

Sets the modified status.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

modified modified

void NXOpen::Mechatronics::LogicObjectBuilder::SetParameterData ( const std::vector< NXOpen::Mechatronics::LogicObjectBuilder::ParameterData > & parameterData )

Sets the parameter data.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

parameterData Parameter data array

void NXOpen::Mechatronics::LogicObjectBuilder::SetParent ( NXOpen::NXObject * parent )

Sets the parent object.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

parent Parent object

void NXOpen::Mechatronics::LogicObjectBuilder::SetTypeName ( const NXString & typeName )

Sets the Type Name used for.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

typeName type name

void NXOpen::Mechatronics::LogicObjectBuilder::SetTypeName ( const char * typeName )

Sets the Type Name used for.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

typeName type name

NXString NXOpen::Mechatronics::LogicObjectBuilder::TypeName ( )

Returns the Type Name used for.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Mechatronics_LogicObjectBuilder.hxx
