NXOpen::Mechatronics::ComparisonResultElectricalPart Class Reference

Represents electrical part of comparison result
Created in NX9.0.0. More...

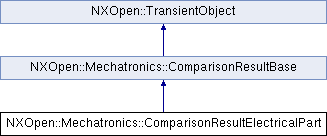

Inheritance diagram for NXOpen::Mechatronics::ComparisonResultElectricalPart:

Public Types
enum	Status { StatusAdded, StatusRemoved, StatusUpdated, StatusIdentical }
	Defines statuses of electrical parts. More...

Public Member Functions
NXOpen::Mechatronics::ComparisonResultElectricalPart::Status	ComparisonStatus ()
	Returns the status from the electrical part Created in NX9.0.0.
void	GetAttributes (std::vector< NXString > &attributeNames, std::vector< NXString > &attributeValues)
	Gets a list of attributes from the electrical part Created in NX9.0.0.
NXString	PartNumber ()
	Returns the part number from the electrical part Created in NX9.0.0.
virtual	~ComparisonResultElectricalPart ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::Mechatronics::ComparisonResultBase
bool	Ignored ()
	Returns the flag marked if the object will be ingored when applying it to logical model Created in NX9.0.0.
void	SetIgnored (bool isIgnored)
	Sets the flag marked if the object will be ingored when applying it to logical model Created in NX9.0.0.
virtual	~ComparisonResultBase ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents electrical part of comparison result
Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Mechatronics::ComparisonResultElectricalPart::Status

Defines statuses of electrical parts.

Enumerator:

StatusAdded	Added status.
StatusRemoved	Removed status.
StatusUpdated	Updated status.
StatusIdentical	Identical status.

Constructor & Destructor Documentation

virtual NXOpen::Mechatronics::ComparisonResultElectricalPart::~ComparisonResultElectricalPart ( )

virtual

Frees the object from memory.

After this method is called, it is illegal to use the object. In .NET, this method is automatically called when the object is deleted by the garbage collector.
Created in NX9.0.0.

License requirements : None

Member Function Documentation

NXOpen::Mechatronics::ComparisonResultElectricalPart::Status NXOpen::Mechatronics::ComparisonResultElectricalPart::ComparisonStatus

(

)

Returns the status from the electrical part
Created in NX9.0.0.

License requirements : None

void NXOpen::Mechatronics::ComparisonResultElectricalPart::GetAttributes	(	std::vector< NXString > &	attributeNames,
		std::vector< NXString > &	attributeValues
	)

Gets a list of attributes from the electrical part
Created in NX9.0.0.

License requirements : None

Parameters

attributeNames	Array of attribute names
attributeValues	Array of attribute values

NXString NXOpen::Mechatronics::ComparisonResultElectricalPart::PartNumber

(

)

Returns the part number from the electrical part
Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Mechatronics_ComparisonResultElectricalPart.hxx
