NXOpen::MassPropertiesBuilder Class Reference

Represents a MassPropertiesBuilder for calculating the weight of selected objects as well as informing the part that the assemblies weight property data needs to be updated on save. More...

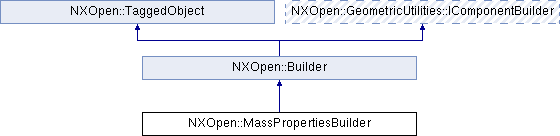

Inheritance diagram for NXOpen::MassPropertiesBuilder:

Public Types
enum	UpdateOptions { UpdateOptionsNo, UpdateOptionsYes, UpdateOptionsMixed }
	Specifies the Update on Save option that will be applied to all selected objects. More...

Public Member Functions
double	Accuracy ()
	Returns the accuracy used for weight calculation during Update Now.
bool	LoadPartialComponents ()
	Returns the load partial components flag.
NXOpen::SelectNXObjectList *	SelectedObjects ()
	Returns the selected objects list.
void	SetAccuracy (double accuracy)
	Sets the accuracy used for weight calculation during Update Now.
void	SetLoadPartialComponents (bool loadPartialComponents)
	Sets the load partial components flag.
void	SetUpdateOnSave (NXOpen::MassPropertiesBuilder::UpdateOptions updateOption)
	Sets the update on save option.
void	UpdateNow ()
	This will update the weight property of the selected objects immediately.
NXOpen::MassPropertiesBuilder::UpdateOptions	UpdateOnSave ()
	Returns the update on save option.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MassPropertiesBuilder for calculating the weight of selected objects as well as informing the part that the assemblies weight property data needs to be updated on save.

 <br> To create a new instance of this class, use @link PropertiesManager::CreateMassPropertiesBuilder  PropertiesManager::CreateMassPropertiesBuilder @endlink  <br>

Default values.

Property	Value
UpdateOnSave	No

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::MassPropertiesBuilder::UpdateOptions

Specifies the Update on Save option that will be applied to all selected objects.

Enumerator:

UpdateOptionsNo	The Update on Save property will be turned off for all selected objects.
UpdateOptionsYes	The Update on Save property will be turned on for all selected objects.
UpdateOptionsMixed	The Update on Save property will not change for the selected objects.

Member Function Documentation

double NXOpen::MassPropertiesBuilder::Accuracy

(

)

Returns the accuracy used for weight calculation during Update Now.

Created in NX8.0.0.

License requirements : None

bool NXOpen::MassPropertiesBuilder::LoadPartialComponents

(

)

Returns the load partial components flag.

This flag specifies whether partially loaded components will be fully loaded so the Update on Save setting can be applied to all parts. The commit may take longer if this flag is turned on.
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::MassPropertiesBuilder::SelectedObjects

(

)

Returns the selected objects list.

Created in NX8.0.0.

License requirements : None

void NXOpen::MassPropertiesBuilder::SetAccuracy

(

double

accuracy

)

Sets the accuracy used for weight calculation during Update Now.

Created in NX8.0.0.

License requirements : None

Parameters

accuracy

accuracy

void NXOpen::MassPropertiesBuilder::SetLoadPartialComponents

(

bool

loadPartialComponents

)

Sets the load partial components flag.

This flag specifies whether partially loaded components will be fully loaded so the Update on Save setting can be applied to all parts. The commit may take longer if this flag is turned on.
Created in NX8.0.0.

License requirements : None

Parameters

loadPartialComponents

loadpartialcomponents

void NXOpen::MassPropertiesBuilder::SetUpdateOnSave

(

NXOpen::MassPropertiesBuilder::UpdateOptions

updateOption

)

Sets the update on save option.

This option informs the part if it should update the assemblies weight property on save and will be applied to all fully loaded parts contained in the parts list. The option will be applied to all partially loaded parts as well if the Load Partial Components option is set to true.
Created in NX8.0.0.

License requirements : None

Parameters

updateOption

updateoption

void NXOpen::MassPropertiesBuilder::UpdateNow

(

)

This will update the weight property of the selected objects immediately.

Created in NX8.0.0.

License requirements : None

NXOpen::MassPropertiesBuilder::UpdateOptions NXOpen::MassPropertiesBuilder::UpdateOnSave

(

)

Returns the update on save option.

This option informs the part if it should update the assemblies weight property on save and will be applied to all fully loaded parts contained in the parts list. The option will be applied to all partially loaded parts as well if the Load Partial Components option is set to true.
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• MassPropertiesBuilder.hxx
