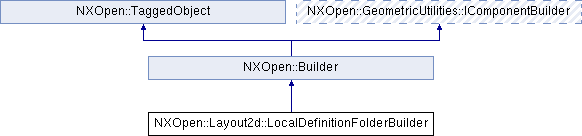

Inheritance diagram for NXOpen::Layout2d::LocalDefinitionFolderBuilder:

Public Member Functions
NXString	FolderName ()
	Returns the current folder name Created in NX9.0.0.

NXOpen::Layout2d::LocalDefinitionFolder *	Parent ()
	Returns the current folder's parent Created in NX9.0.0.

void	SetFolderName (const NXString &folderName)
	Sets the current folder name Created in NX9.0.0.

void	SetFolderName (const char *folderName)
	Sets the current folder name Created in NX9.0.0.

void	SetParent (NXOpen::Layout2d::LocalDefinitionFolder *parentfolder)
	Sets the current folder's parent Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

A local definition folder contains 2D Component definitions stored in the current part.
To create a new instance of this class, use Layout2d::LocalDefinitionFolderCollection::CreateLocalDefinitionFolderBuilder

Created in NX9.0.0.
