Represents a @link Issue::IssueContent Issue::IssueContent@endlink  builder  <br> To create a new instance of this class, use @link Issue::IssueManager::CreateIssueContentBuilder  Issue::IssueManager::CreateIssueContentBuilder @endlink  <br>

Default values. More...

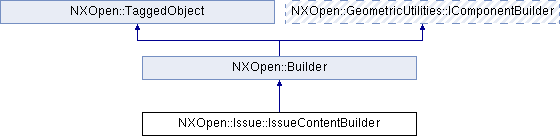

Inheritance diagram for NXOpen::Issue::IssueContentBuilder:

Public Member Functions
void	AddAttachment (NXOpen::Issue::IssueAttachment *attachment)
	Adds an Issue::IssueAttachment Created in NX8.5.0.

NXString	AssignedUser ()
	Returns the assigned user Created in NX8.5.0.

NXString	Comment ()
	Returns the issue comment Created in NX8.5.0.

NXString	DueDate ()
	Returns the due date Created in NX8.5.0.

std::vector < NXOpen::Issue::IssueAttachment * >	GetAllAttachments ()
	Returns all the Issue::IssueAttachment s.

NXOpen::Issue::IssueAttachment *	GetAttachment (const NXString &attachmentName)
	Returns the Issue::IssueAttachment with this attachment name.

NXOpen::Issue::IssueAttachment *	GetAttachment (const char *attachmentName)
	Returns the Issue::IssueAttachment with this attachment name.

std::vector < NXOpen::Issue::IssueProperty * >	GetEditableUserProperties ()
	Returns the editable user defined Issue::IssueProperty s.

NXString	GetPropertyValue (const NXString &propertyName)
	Returns the value of Issue::IssueProperty.

NXString	GetPropertyValue (const char *propertyName)
	Returns the value of Issue::IssueProperty.

NXString	Priority ()
	Returns the issue priority Created in NX8.5.0.

void	RemoveAttachment (NXOpen::Issue::IssueAttachment *attachment)
	Removes an Issue::IssueAttachment Created in NX8.5.0.

void	SetAssignedUser (const NXString &assignedUser)
	Sets the assigned user Created in NX8.5.0.

void	SetAssignedUser (const char *assignedUser)
	Sets the assigned user Created in NX8.5.0.

void	SetComment (const NXString &comment)
	Sets the issue comment Created in NX8.5.0.

void	SetComment (const char *comment)
	Sets the issue comment Created in NX8.5.0.

void	SetDueDate (const NXString &dueDate)
	Sets the due date Created in NX8.5.0.

void	SetDueDate (const char *dueDate)
	Sets the due date Created in NX8.5.0.

void	SetPreviewImage (NXOpen::Issue::IssueAttachment *attachment)
	Sets preview image Created in NX8.5.0.

void	SetPriority (const NXString &priority)
	Sets the issue priority Created in NX8.5.0.

void	SetPriority (const char *priority)
	Sets the issue priority Created in NX8.5.0.

void	SetPropertyValue (const NXString &propertyName, const NXString &propertyValue)
	Sets the value of Issue::IssueProperty Created in NX8.5.0.

void	SetPropertyValue (const char propertyName, const char propertyValue)
	Sets the value of Issue::IssueProperty Created in NX8.5.0.

void	SetStatus (const NXString &status)
	Sets the issue status Created in NX8.5.0.

void	SetStatus (const char *status)
	Sets the issue status Created in NX8.5.0.

void	SetTitle (const NXString &title)
	Sets the issue title Created in NX8.5.0.

void	SetTitle (const char *title)
	Sets the issue title Created in NX8.5.0.

NXString	Status ()
	Returns the issue status Created in NX8.5.0.

NXString	Title ()
	Returns the issue title Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Issue::IssueContent Issue::IssueContent@endlink  builder  <br> To create a new instance of this class, use @link Issue::IssueManager::CreateIssueContentBuilder  Issue::IssueManager::CreateIssueContentBuilder @endlink  <br>

Default values.

Property

Value

Title

New Issue

Created in NX8.5.0.

Member Function Documentation

void NXOpen::Issue::IssueContentBuilder::AddAttachment ( NXOpen::Issue::IssueAttachment * attachment )

Adds an Issue::IssueAttachment
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

attachment attachment

NXString NXOpen::Issue::IssueContentBuilder::AssignedUser ( )

Returns the assigned user
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

NXString NXOpen::Issue::IssueContentBuilder::Comment ( )

Returns the issue comment
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

NXString NXOpen::Issue::IssueContentBuilder::DueDate ( )

Returns the due date
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

std::vector<NXOpen::Issue::IssueAttachment *> NXOpen::Issue::IssueContentBuilder::GetAllAttachments ( )

Returns all the Issue::IssueAttachment s.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

NXOpen::Issue::IssueAttachment* NXOpen::Issue::IssueContentBuilder::GetAttachment ( const NXString & attachmentName )

Returns the Issue::IssueAttachment with this attachment name.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

attachmentName attachmentname

NXOpen::Issue::IssueAttachment* NXOpen::Issue::IssueContentBuilder::GetAttachment ( const char * attachmentName )

Returns the Issue::IssueAttachment with this attachment name.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

attachmentName attachmentname

std::vector<NXOpen::Issue::IssueProperty *> NXOpen::Issue::IssueContentBuilder::GetEditableUserProperties ( )

Returns the editable user defined Issue::IssueProperty s.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

NXString NXOpen::Issue::IssueContentBuilder::GetPropertyValue ( const NXString & propertyName )

Returns the value of Issue::IssueProperty.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

propertyName propertyname

NXString NXOpen::Issue::IssueContentBuilder::GetPropertyValue ( const char * propertyName )

Returns the value of Issue::IssueProperty.

Returns: Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

propertyName propertyname

NXString NXOpen::Issue::IssueContentBuilder::Priority ( )

Returns the issue priority
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

void NXOpen::Issue::IssueContentBuilder::RemoveAttachment ( NXOpen::Issue::IssueAttachment * attachment )

Removes an Issue::IssueAttachment
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

attachment attachment

void NXOpen::Issue::IssueContentBuilder::SetAssignedUser ( const NXString & assignedUser )

Sets the assigned user
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

assignedUser assigneduser

void NXOpen::Issue::IssueContentBuilder::SetAssignedUser ( const char * assignedUser )

Sets the assigned user
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

assignedUser assigneduser

void NXOpen::Issue::IssueContentBuilder::SetComment ( const NXString & comment )

Sets the issue comment
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

comment comment

void NXOpen::Issue::IssueContentBuilder::SetComment ( const char * comment )

Sets the issue comment
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

comment comment

void NXOpen::Issue::IssueContentBuilder::SetDueDate ( const NXString & dueDate )

Sets the due date
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

dueDate duedate

void NXOpen::Issue::IssueContentBuilder::SetDueDate ( const char * dueDate )

Sets the due date
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

dueDate duedate

void NXOpen::Issue::IssueContentBuilder::SetPreviewImage ( NXOpen::Issue::IssueAttachment * attachment )

Sets preview image
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

attachment attachment

void NXOpen::Issue::IssueContentBuilder::SetPriority ( const NXString & priority )

Sets the issue priority
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

priority priority

void NXOpen::Issue::IssueContentBuilder::SetPriority ( const char * priority )

Sets the issue priority
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

priority priority

void NXOpen::Issue::IssueContentBuilder::SetPropertyValue	(	const NXString &	propertyName,
		const NXString &	propertyValue
	)

Sets the value of Issue::IssueProperty
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

propertyName	propertyname
propertyValue	propertyvalue

void NXOpen::Issue::IssueContentBuilder::SetPropertyValue	(	const char *	propertyName,
		const char *	propertyValue
	)

Sets the value of Issue::IssueProperty
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

propertyName	propertyname
propertyValue	propertyvalue

void NXOpen::Issue::IssueContentBuilder::SetStatus ( const NXString & status )

Sets the issue status
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

status status

void NXOpen::Issue::IssueContentBuilder::SetStatus ( const char * status )

Sets the issue status
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

status status

void NXOpen::Issue::IssueContentBuilder::SetTitle ( const NXString & title )

Sets the issue title
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

title title

void NXOpen::Issue::IssueContentBuilder::SetTitle ( const char * title )

Sets the issue title
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

title title

NXString NXOpen::Issue::IssueContentBuilder::Status ( )

Returns the issue status
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

NXString NXOpen::Issue::IssueContentBuilder::Title ( )

Returns the issue title
Created in NX8.5.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

The documentation for this class was generated from the following file:

Issue_IssueContentBuilder.hxx
