Base class for importing data into the work part. More...

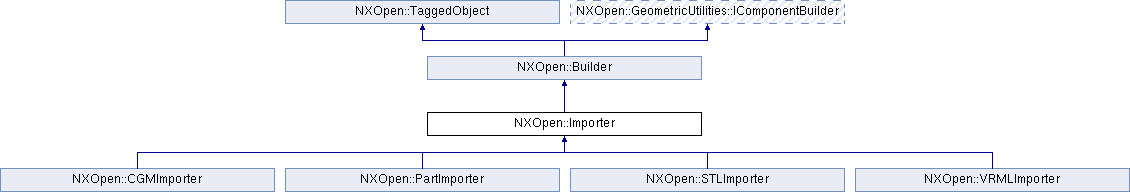

Inheritance diagram for NXOpen::Importer:

Public Member Functions
NXString	FileName ()
	Returns the name of the file containing the data to import.

void	SetFileName (const NXString &fileName)
	Sets the name of the file containing the data to import.

void	SetFileName (const char *fileName)
	Sets the name of the file containing the data to import.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Base class for importing data into the work part.

This is an abstract class.

Created in NX5.0.0.

Member Function Documentation

NXString NXOpen::Importer::FileName ( )

Returns the name of the file containing the data to import.

Created in NX5.0.0.

License requirements : None

void NXOpen::Importer::SetFileName ( const NXString & fileName )

Sets the name of the file containing the data to import.

Created in NX5.0.0.

License requirements : None

Parameters

fileName file name

void NXOpen::Importer::SetFileName ( const char * fileName )

Sets the name of the file containing the data to import.

Created in NX5.0.0.

License requirements : None

Parameters

fileName file name

The documentation for this class was generated from the following file:
