NXOpen::GeometricUtilities::SnipIntoPatchesBuilder Class Reference

Represents a GeometricUtilities::SnipIntoPatchesBuilder builder. More...

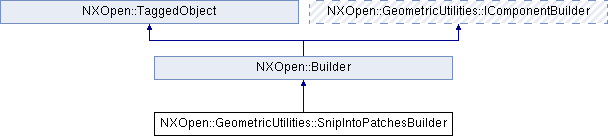

Inheritance diagram for NXOpen::GeometricUtilities::SnipIntoPatchesBuilder:

Public Member Functions
void	CreateRegionsPreview (NXOpen::Face *targetFace, const std::vector< NXOpen::Curve * > &allCurves)
	Create region preview Created in NX9.0.0.
void	DeleteExtractFace (NXOpen::Face *extractFace)
	Delete the extracted face Created in NX9.0.0.
void	DeleteInternalPatch (NXOpen::Face *targetFace, const std::vector< NXOpen::Curve * > &allCurves)
	Delete internal patch from the selected surface Created in NX9.0.0.
void	DeleteIsoCurve (const std::vector< NXOpen::Curve * > &allCurves)
	Delete the isoparametric curve generated on the selected surface Created in NX9.0.0.
NXOpen::SelectFace *	Face ()
	Returns the face to snip into patches Created in NX9.0.0.
NXOpen::Face *	GetExtractFace ()
	Get extracted face.
void	GetIsoCurves (NXOpen::Face *targetFace, std::vector< NXOpen::Curve * > &allCurves)
	Get the generated isoparametric curves on the selected surface Created in NX9.0.0.
bool	HideOriginal ()
	Returns the option indicating to hide or show the original.
NXOpen::RegionPointList *	Region ()
	Returns the region to delete from the surface Created in NX9.0.0.
void	SetHideOriginal (bool hideOriginal)
	Sets the option indicating to hide or show the original.
void	SnipSurfaceIntoPatches (NXOpen::Face *targetFace)
	Snip the selected surface into patches Created in NX9.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricUtilities::SnipIntoPatchesBuilder builder.

No object is returned by this builder.
To create a new instance of this class, use GeometricUtilities::CAMDataPrepManager::CreateSnipIntoPatchesBuilder
Default values.

Property	Value
HideOriginal	0

Created in NX9.0.0.

Member Function Documentation

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::CreateRegionsPreview	(	NXOpen::Face *	targetFace,
		const std::vector< NXOpen::Curve * > &	allCurves
	)

Create region preview
Created in NX9.0.0.

License requirements : None

Parameters

targetFace	targetface
allCurves	allcurves

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::DeleteExtractFace

(

NXOpen::Face *

extractFace

)

Delete the extracted face
Created in NX9.0.0.

License requirements : None

Parameters

extractFace

extractface

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::DeleteInternalPatch	(	NXOpen::Face *	targetFace,
		const std::vector< NXOpen::Curve * > &	allCurves
	)

Delete internal patch from the selected surface
Created in NX9.0.0.

License requirements : None

Parameters

targetFace	targetface
allCurves	allcurves

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::DeleteIsoCurve

(

const std::vector< NXOpen::Curve * > &

allCurves

)

Delete the isoparametric curve generated on the selected surface
Created in NX9.0.0.

License requirements : None

Parameters

allCurves

allcurves

NXOpen::SelectFace* NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::Face

(

)

Returns the face to snip into patches
Created in NX9.0.0.

License requirements : None

NXOpen::Face* NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::GetExtractFace

(

)

Get extracted face.

Returns

Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::GetIsoCurves	(	NXOpen::Face *	targetFace,
		std::vector< NXOpen::Curve * > &	allCurves
	)

Get the generated isoparametric curves on the selected surface
Created in NX9.0.0.

License requirements : None

Parameters

targetFace	targetface
allCurves	allcurves

bool NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::HideOriginal

(

)

Returns the option indicating to hide or show the original.

If True it is hidden,else it is shown
Created in NX9.0.0.

License requirements : None

NXOpen::RegionPointList* NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::Region

(

)

Returns the region to delete from the surface
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::SetHideOriginal

(

bool

hideOriginal

)

Sets the option indicating to hide or show the original.

If True it is hidden,else it is shown
Created in NX9.0.0.

License requirements : nx_freeform_2 ("advanced freeform modeling") OR die_engineering ("DIE ENGINEERING")

Parameters

hideOriginal

hideoriginal

void NXOpen::GeometricUtilities::SnipIntoPatchesBuilder::SnipSurfaceIntoPatches

(

NXOpen::Face *

targetFace

)

Snip the selected surface into patches
Created in NX9.0.0.

License requirements : None

Parameters

targetFace

targetface

---

The documentation for this class was generated from the following file:

• GeometricUtilities_SnipIntoPatchesBuilder.hxx
