NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder Class Reference

Represents a Features::PartModule builder
To create a new instance of this class, use Features::FeatureCollection::CreateRenameLinkedPartModulePartBuilder

Created in NX9.0.0. More...

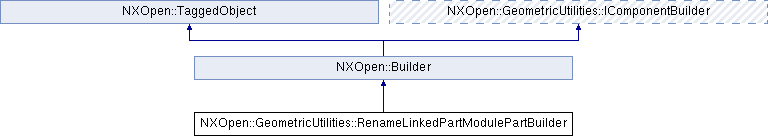

Inheritance diagram for NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder:

Public Member Functions
void	GetAllAssociatedLinkedPartModulePartTags (NXOpen::Part *mainPartTag, std::vector< NXOpen::Part * > &linkedPartTags)
	Get all linked part module part tags associated with given main part.
NXString	GetLinkedPartNameToBeSavedAs (NXOpen::Part *linkedPartTag)
	Retrieve new name of linked part module part added earlier for "Save As".
void	GetLinkedPartNameToBeSavedAs (std::vector< NXString > &fileName)
	Retrieve all linked part module parts and their associated new names.
void	SetLinkedPartNameToBeSavedAs (NXOpen::Part *linkedPartTag, const NXString &fileName)
	Add linked part module part tag and its new name to perform "Save As" along with its main part.
void	SetLinkedPartNameToBeSavedAs (NXOpen::Part *linkedPartTag, const char *fileName)
	Add linked part module part tag and its new name to perform "Save As" along with its main part.
void	SetLinkedPartNameToBeSavedAs (const std::vector< NXOpen::Part * > &linkedPartTag, std::vector< NXString > &fileName)
	Add multiple linked part module part tags and their new names to perform "Save As" along with its main part.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::PartModule builder
To create a new instance of this class, use Features::FeatureCollection::CreateRenameLinkedPartModulePartBuilder

Created in NX9.0.0.

Member Function Documentation

void NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::GetAllAssociatedLinkedPartModulePartTags	(	NXOpen::Part *	mainPartTag,
		std::vector< NXOpen::Part * > &	linkedPartTags
	)

Get all linked part module part tags associated with given main part.

       This function will also load linked parts if they are not loaded.

Created in NX9.0.0.

License requirements : None

Parameters

mainPartTag	the main part for which linked part module parts are to be queried
linkedPartTags	all associated linked part module parts

NXString NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::GetLinkedPartNameToBeSavedAs

(

NXOpen::Part *

linkedPartTag

)

Retrieve new name of linked part module part added earlier for "Save As".

Returns

new linked part file name
Created in NX9.0.0.

License requirements : None

Parameters

linkedPartTag

the linked part

void NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::GetLinkedPartNameToBeSavedAs

(

std::vector< NXString > &

fileName

)

Retrieve all linked part module parts and their associated new names.

Created in NX9.0.0.

License requirements : None

Parameters

fileName

new linked part file name

void NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::SetLinkedPartNameToBeSavedAs	(	NXOpen::Part *	linkedPartTag,
		const NXString &	fileName
	)

Add linked part module part tag and its new name to perform "Save As" along with its main part.

Created in NX9.0.0.

License requirements : None

Parameters

linkedPartTag	the linked part
fileName	new linked part file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::SetLinkedPartNameToBeSavedAs	(	NXOpen::Part *	linkedPartTag,
		const char *	fileName
	)

Add linked part module part tag and its new name to perform "Save As" along with its main part.

Created in NX9.0.0.

License requirements : None

Parameters

linkedPartTag	the linked part
fileName	new linked part file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::GeometricUtilities::RenameLinkedPartModulePartBuilder::SetLinkedPartNameToBeSavedAs	(	const std::vector< NXOpen::Part * > &	linkedPartTag,
		std::vector< NXString > &	fileName
	)

Add multiple linked part module part tags and their new names to perform "Save As" along with its main part.

Created in NX9.0.0.

License requirements : None

Parameters

linkedPartTag	the linked part
fileName	new linked part file name NOTE: The full Unicode character set is not supported for this parameter.

---

The documentation for this class was generated from the following file:

• GeometricUtilities_RenameLinkedPartModulePartBuilder.hxx
