Reduce Surface Radius Builder of Geometric Utilities. More...

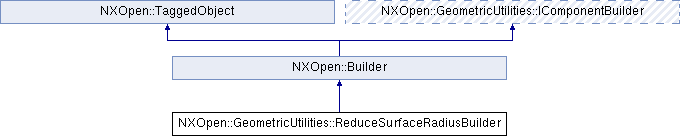

Inheritance diagram for NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder:

Public Types
enum	FaceSelectionSpecification { FaceSelectionSpecificationRadius, FaceSelectionSpecificationChain, FaceSelectionSpecificationSelect }
	Specify the face selection type. More...

enum	ReducedFaceTypeSpecification { ReducedFaceTypeSpecificationFaceGroup, ReducedFaceTypeSpecificationSingleChainInGroup, ReducedFaceTypeSpecificationSingleChain }
	Specify three ways to do preview. More...

enum	ReduceValueTypeSpecification { ReduceValueTypeSpecificationPercentage, ReduceValueTypeSpecificationValue, ReduceValueTypeSpecificationDelta }
	Specify the reduction method. More...

Public Member Functions
bool	Direction ()
	Returns the direction which specifies concave face respect to the body face normal Created in NX9.0.0.

NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilderList *	FaceGroupList ()
	Returns the list containing the face chains as input objects used to do reduction.

double	HighRadius ()
	Returns the high radius which specifies lower limit to filter out all qualified faces Created in NX9.0.0.

int	IndexListItem ()
	Returns the index of list item Created in NX9.0.0.

double	LowRadius ()
	Returns the low radius which specifies lower limit to filter out all qualified faces Created in NX9.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	OnPathDimEnd ()
	Returns the end position of reduced sheet body Created in NX9.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	OnPathDimStart ()
	Returns the start position of reduced sheet body Created in NX9.0.0.

double	PercentReduction ()
	Returns the value of percentage reduction method Created in NX9.0.0.

double	PositionTolerance ()
	Returns the position tolerance between two faces connection Created in NX9.0.0.

NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReducedFaceTypeSpecification	ReducedFaceType ()
	Returns the type of performing the radius reduction preview Created in NX9.0.0.

NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReduceValueTypeSpecification	ReduceValueType ()
	Returns the type of reduced value which results surface shape Created in NX9.0.0.

NXOpen::ScCollector *	SelectChain ()
	Returns the selected entities for performing the radius reduction operation, which selected by "Select Faces by Chain" and "Single Selection" Created in NX9.0.0.

NXOpen::ScCollector *	SelectFace ()
	Returns the selected entities for performing the radius reduction operation, which selected by "Select Faces by Radius" Created in NX9.0.0.

void	SetDirection (bool direction)
	Sets the direction which specifies concave face respect to the body face normal Created in NX9.0.0.

void	SetHighRadius (double highRadius)
	Sets the high radius which specifies lower limit to filter out all qualified faces Created in NX9.0.0.

void	SetIndexListItem (int index)
	Sets the index of list item Created in NX9.0.0.

void	SetLowRadius (double lowRadius)
	Sets the low radius which specifies lower limit to filter out all qualified faces Created in NX9.0.0.

void	SetPercentReduction (double percentReduction)
	Sets the value of percentage reduction method Created in NX9.0.0.

void	SetPositionTolerance (double positionTolerance)
	Sets the position tolerance between two faces connection Created in NX9.0.0.

void	SetReducedFaceType (NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReducedFaceTypeSpecification reducedFaceType)
	Sets the type of performing the radius reduction preview Created in NX9.0.0.

void	SetReduceValueType (NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReduceValueTypeSpecification reduceValueType)
	Sets the type of reduced value which results surface shape Created in NX9.0.0.

void	SetTangentTolerance (double tangentTolerance)
	Sets the tangent tolerance between two faces connection Created in NX9.0.0.

void	SetTargetReduction (double targetReduction)
	Sets the target value method Created in NX9.0.0.

void	SetValueReduction (double valueReduction)
	Sets the value of reduction value method Created in NX9.0.0.

double	TangentTolerance ()
	Returns the tangent tolerance between two faces connection Created in NX9.0.0.

double	TargetReduction ()
	Returns the target value method Created in NX9.0.0.

double	ValueReduction ()
	Returns the value of reduction value method Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Reduce Surface Radius Builder of Geometric Utilities.

This builder's Commit can produce more than one object, the GetCommittedObjects can be used to get the objects.
To create a new instance of this class, use GeometricUtilities::CAMDataPrepManager::CreateReduceSurfaceRadiusBuilder
Default values.

Property

Value

HighRadius

10.0 (millimeters part), 0.4 (inches part)

LowRadius

0.5 (millimeters part), 0.02 (inches part)

PercentReduction

100

ReduceValueType

Percentage

TargetReduction

0

ValueReduction

0.1

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::FaceSelectionSpecification

Specify the face selection type.

There are three types: Select Faces by Radius, Select Faces by Chain and Single Selection.

Enumerator:

FaceSelectionSpecificationRadius	radius
FaceSelectionSpecificationChain	chain
FaceSelectionSpecificationSelect	select

enum NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReducedFaceTypeSpecification

Specify three ways to do preview.

FaceGroup: Preview all list items. SingleChainInGroup: Preview selected list item. SingleChain: Preview face chain which is selected by "Select Faces by Chain" and "Single Face"

Enumerator:

ReducedFaceTypeSpecificationFaceGroup	Preview all items in face group list when using "Select Faces by Radius" to select input objects.
ReducedFaceTypeSpecificationSingleChainInGroup	Preview single item in face group list when using "Select Faces by Radius" to select input objects.
ReducedFaceTypeSpecificationSingleChain	Preview single chain when using "Select Faces by Chain" and "Single Selection" to select input objects.

enum NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReduceValueTypeSpecification

Specify the reduction method.

There are three types: percentage reduction, reduction value and target value.

Enumerator:

ReduceValueTypeSpecificationPercentage	percentage
ReduceValueTypeSpecificationValue	value
ReduceValueTypeSpecificationDelta	delta

Member Function Documentation

bool NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::Direction ( )

Returns the direction which specifies concave face respect to the body face normal
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilderList* NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::FaceGroupList ( )

Returns the list containing the face chains as input objects used to do reduction.

Created in NX9.0.0.

License requirements : None

double NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::HighRadius ( )

Returns the high radius which specifies lower limit to filter out all qualified faces
Created in NX9.0.0.

License requirements : None

int NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::IndexListItem ( )

Returns the index of list item
Created in NX9.0.0.

License requirements : None

double NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::LowRadius ( )

Returns the low radius which specifies lower limit to filter out all qualified faces
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::OnPathDimEnd ( )

Returns the end position of reduced sheet body
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::OnPathDimStart ( )

Returns the start position of reduced sheet body
Created in NX9.0.0.

License requirements : None

double NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::PercentReduction ( )

Returns the value of percentage reduction method
Created in NX9.0.0.

License requirements : None

double NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::PositionTolerance ( )

Returns the position tolerance between two faces connection
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReducedFaceTypeSpecification NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReducedFaceType ( )

Returns the type of performing the radius reduction preview
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReduceValueTypeSpecification NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::ReduceValueType ( )

Returns the type of reduced value which results surface shape
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::SelectChain ( )

Returns the selected entities for performing the radius reduction operation, which selected by "Select Faces by Chain" and "Single Selection"
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::SelectFace ( )

Returns the selected entities for performing the radius reduction operation, which selected by "Select Faces by Radius"
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::ReduceSurfaceRadiusBuilder::SetDirection ( bool direction )

Sets the direction which specifies concave face respect to the body face normal
Created in NX9.0.0.
