Represents a GeometricUtilities::PointsFromFileBuilder builder read points from a text file with format *.asc, *.txt, *.dat, *.pts
To create a new instance of this class, use Part::CreatePointsFromFileBuilder

Created in NX8.5.0. More...

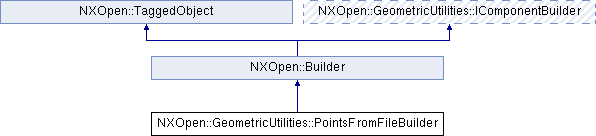

Inheritance diagram for NXOpen::GeometricUtilities::PointsFromFileBuilder:

Public Types
enum	Options { OptionsAbsolute, OptionsWcs }
	Coordinate option. More...

Public Member Functions
NXOpen::GeometricUtilities::PointsFromFileBuilder::Options	CoordinateOption ()
	Returns the option indicating type of point coordinates Created in NX8.5.0.

NXString	FileName ()
	Returns the file name of the point data file Created in NX8.5.0.

NXString	PathName ()
	Returns the path name of the point data file Created in NX8.5.0.

void	SetCoordinateOption (NXOpen::GeometricUtilities::PointsFromFileBuilder::Options option)
	Sets the option indicating type of point coordinates Created in NX8.5.0.

void	SetFileName (const NXString &filename)
	Sets the file name of the point data file Created in NX8.5.0.

void	SetFileName (const char *filename)
	Sets the file name of the point data file Created in NX8.5.0.

void	SetPathName (const NXString &pathname)
	Sets the path name of the point data file Created in NX8.5.0.

void	SetPathName (const char *pathname)
	Sets the path name of the point data file Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricUtilities::PointsFromFileBuilder builder read points from a text file with format *.asc, *.txt, *.dat, *.pts
To create a new instance of this class, use Part::CreatePointsFromFileBuilder

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::PointsFromFileBuilder::Options

Coordinate option.

Enumerator:

OptionsAbsolute	Absolute coordinates.
OptionsWcs	Work coordinates.

Member Function Documentation

NXOpen::GeometricUtilities::PointsFromFileBuilder::Options NXOpen::GeometricUtilities::PointsFromFileBuilder::CoordinateOption ( )

Returns the option indicating type of point coordinates
Created in NX8.5.0.

License requirements : None

NXString NXOpen::GeometricUtilities::PointsFromFileBuilder::FileName ( )

Returns the file name of the point data file
Created in NX8.5.0.

License requirements : None

NXString NXOpen::GeometricUtilities::PointsFromFileBuilder::PathName ( )

Returns the path name of the point data file
Created in NX8.5.0.

License requirements : None

void NXOpen::GeometricUtilities::PointsFromFileBuilder::SetCoordinateOption ( NXOpen::GeometricUtilities::PointsFromFileBuilder::Options option )

Sets the option indicating type of point coordinates
Created in NX8.5.0.

License requirements : None

Parameters

option option

void NXOpen::GeometricUtilities::PointsFromFileBuilder::SetFileName ( const NXString & filename )

Sets the file name of the point data file
Created in NX8.5.0.

License requirements : None

Parameters

filename filename

void NXOpen::GeometricUtilities::PointsFromFileBuilder::SetFileName ( const char * filename )

Sets the file name of the point data file
Created in NX8.5.0.

License requirements : None

Parameters

filename filename

void NXOpen::GeometricUtilities::PointsFromFileBuilder::SetPathName ( const NXString & pathname )

Sets the path name of the point data file
Created in NX8.5.0.

License requirements : None

Parameters

pathname pathname

void NXOpen::GeometricUtilities::PointsFromFileBuilder::SetPathName ( const char * pathname )

Sets the path name of the point data file
Created in NX8.5.0.

License requirements : None

Parameters

pathname pathname

The documentation for this class was generated from the following file:

GeometricUtilities_PointsFromFileBuilder.hxx
