pattern instance edit builder
To create a new instance of this class, use GeometricUtilities::PatternDefinition::CreatePatternInstanceEditBuilder

Created in NX7.5.0. More...

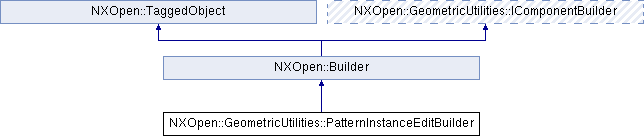

Inheritance diagram for NXOpen::GeometricUtilities::PatternInstanceEditBuilder:

Public Member Functions
NXOpen::GeometricUtilities::InstanceEditedExpressionsList *	EditedExpressionsList ()
	Returns the edited expressions list GeometricUtilities::InstanceEditedExpressionsList .

void	SetSelectedInstances (const std::vector< int > &firstIndexOfSelectedInstances, const std::vector< int > &secondIndexOfSelectedInstances)
	Sets the indices of the selected Pattern Instances whose expressions are to be edited with the expressions provided in the GeometricUtilities::InstanceEditedExpressionsList .

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

pattern instance edit builder
To create a new instance of this class, use GeometricUtilities::PatternDefinition::CreatePatternInstanceEditBuilder

Created in NX7.5.0.

Member Function Documentation

NXOpen::GeometricUtilities::InstanceEditedExpressionsList* NXOpen::GeometricUtilities::PatternInstanceEditBuilder::EditedExpressionsList ( )

Created in NX7.5.0.

License requirements : None

void NXOpen::GeometricUtilities::PatternInstanceEditBuilder::SetSelectedInstances	(	const std::vector< int > &	firstIndexOfSelectedInstances,
		const std::vector< int > &	secondIndexOfSelectedInstances
	)

Sets the indices of the selected Pattern Instances whose expressions are to be edited with the expressions provided in the GeometricUtilities::InstanceEditedExpressionsList .

Created in NX7.5.0.

License requirements : None

Parameters

firstIndexOfSelectedInstances	firstindexofselectedinstances
secondIndexOfSelectedInstances	secondindexofselectedinstances
