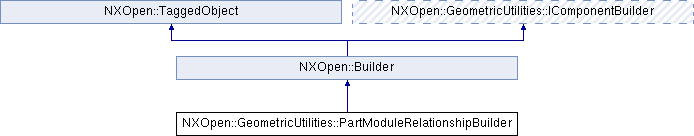

Inheritance diagram for NXOpen::GeometricUtilities::PartModuleRelationshipBuilder:

Public Member Functions
NXOpen::Features::SelectPartModule *	LinkedPartModule ()
	Returns the linked part module in separate part to which relationship needs to be established Created in NX8.0.0.

NXOpen::Features::SelectPartModule *	PartModule ()
	Returns the part module in owining part to establish the relationship Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::PartModule builder
To create a new instance of this class, use Features::FeatureCollection::CreatePartModuleRelationshipBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::Features::SelectPartModule* NXOpen::GeometricUtilities::PartModuleRelationshipBuilder::LinkedPartModule ( )

Returns the linked part module in separate part to which relationship needs to be established
Created in NX8.0.0.

License requirements : None

NXOpen::Features::SelectPartModule* NXOpen::GeometricUtilities::PartModuleRelationshipBuilder::PartModule ( )

Returns the part module in owining part to establish the relationship
Created in NX8.0.0.

License requirements : None
