Represents a @link GeometricUtilities::PartModuleOutputBuilder1 GeometricUtilities::PartModuleOutputBuilder1@endlink <br> To create a new instance of this class, use @link Features::PartModule::CreatePartModuleOutputBuilder1 Features::PartModule::CreatePartModuleOutputBuilder1 @endlink <br>
Default values. More...

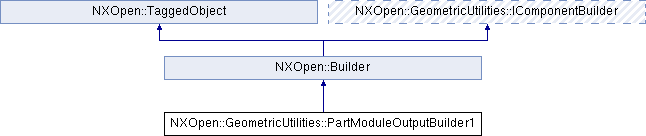

Inheritance diagram for NXOpen::GeometricUtilities::PartModuleOutputBuilder1:
Public Member Functions | |
| NXOpen::Features::PartGeometryCopyBuilder * | OutputReferences1 () |
| Returns the new part module output data Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a @link GeometricUtilities::PartModuleOutputBuilder1 GeometricUtilities::PartModuleOutputBuilder1@endlink <br> To create a new instance of this class, use @link Features::PartModule::CreatePartModuleOutputBuilder1 Features::PartModule::CreatePartModuleOutputBuilder1 @endlink <br>
Default values.
| Property | Value |
|---|---|
|
OutputReferences1.ObjectType |
BodyCollector |
Created in NX8.0.0.
Member Function Documentation
| NXOpen::Features::PartGeometryCopyBuilder* NXOpen::GeometricUtilities::PartModuleOutputBuilder1::OutputReferences1 | ( | ) |
Returns the new part module output data
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- GeometricUtilities_PartModuleOutputBuilder1.hxx
