Represents a @link GeometricUtilities::MatchSurfaceBuilder GeometricUtilities::MatchSurfaceBuilder@endlink  builder.This builder's Commit can create a b-surface  <br> To create a new instance of this class, use @link GeometricUtilities::CAMDataPrepManager::CreateMatchSurfaceBuilder  GeometricUtilities::CAMDataPrepManager::CreateMatchSurfaceBuilder @endlink  <br>

Default values. More...

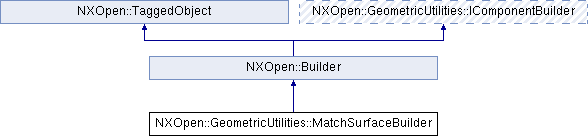

Inheritance diagram for NXOpen::GeometricUtilities::MatchSurfaceBuilder:

Public Types
enum	MatchConstaint { MatchConstaintPosition, MatchConstaintTangent }
	This enum represents the type of constaints. More...

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance Created in NX9.0.0.

NXOpen::GeometricUtilities::MatchSurfaceBuilder::MatchConstaint	Constraint ()
	Returns the continuity type for matching Created in NX9.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance Created in NX9.0.0.

NXOpen::SelectEdge *	EditEdge ()
	Returns the selected edge for matching Created in NX9.0.0.

bool	EndToEnd ()
	Returns the option to match end-to-end, between the end of edit edge and the reference egde or curve Created in NX9.0.0.

bool	KeepSheet ()
	Returns the option to keep original sheet Created in NX9.0.0.

bool	MatchExact ()
	Returns the option to match exact, between the end of edit edge and the reference egde or curve Created in NX9.0.0.

NXOpen::SelectEdge *	Reference ()
	Returns the selected reference edge or curve Created in NX9.0.0.

NXOpen::SelectFace *	ReferenceFace ()
	Returns the selected face for reference curve Created in NX9.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	RegionLimit ()
	Returns the distance limit of deformation region Created in NX9.0.0.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance Created in NX9.0.0.

void	SetConstraint (NXOpen::GeometricUtilities::MatchSurfaceBuilder::MatchConstaint constraint)
	Sets the continuity type for matching Created in NX9.0.0.

void	SetDistanceTolerance (double distTolerance)
	Sets the distance tolerance Created in NX9.0.0.

void	SetEndToEnd (bool endToEnd)
	Sets the option to match end-to-end, between the end of edit edge and the reference egde or curve Created in NX9.0.0.

void	SetKeepSheet (bool keepSheet)
	Sets the option to keep original sheet Created in NX9.0.0.

void	SetMatchExact (bool matchExact)
	Sets the option to match exact, between the end of edit edge and the reference egde or curve Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link GeometricUtilities::MatchSurfaceBuilder GeometricUtilities::MatchSurfaceBuilder@endlink  builder.This builder's Commit can create a b-surface  <br> To create a new instance of this class, use @link GeometricUtilities::CAMDataPrepManager::CreateMatchSurfaceBuilder  GeometricUtilities::CAMDataPrepManager::CreateMatchSurfaceBuilder @endlink  <br>

Default values.

Property

Value

Constraint

Tangent

EndToEnd

1

KeepSheet

0

MatchExact

1

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::MatchSurfaceBuilder::MatchConstaint

This enum represents the type of constaints.

Enumerator:

MatchConstaintPosition	position
MatchConstaintTangent	tangent

Member Function Documentation

double NXOpen::GeometricUtilities::MatchSurfaceBuilder::AngleTolerance ( )

Returns the angle tolerance
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::MatchSurfaceBuilder::MatchConstaint NXOpen::GeometricUtilities::MatchSurfaceBuilder::Constraint ( )

Returns the continuity type for matching
Created in NX9.0.0.

License requirements : None

double NXOpen::GeometricUtilities::MatchSurfaceBuilder::DistanceTolerance ( )

Returns the distance tolerance
Created in NX9.0.0.

License requirements : None

NXOpen::SelectEdge* NXOpen::GeometricUtilities::MatchSurfaceBuilder::EditEdge ( )

Returns the selected edge for matching
Created in NX9.0.0.

License requirements : None

bool NXOpen::GeometricUtilities::MatchSurfaceBuilder::EndToEnd ( )

Returns the option to match end-to-end, between the end of edit edge and the reference egde or curve
Created in NX9.0.0.

License requirements : None

bool NXOpen::GeometricUtilities::MatchSurfaceBuilder::KeepSheet ( )

Returns the option to keep original sheet
Created in NX9.0.0.

License requirements : None

bool NXOpen::GeometricUtilities::MatchSurfaceBuilder::MatchExact ( )

Returns the option to match exact, between the end of edit edge and the reference egde or curve
Created in NX9.0.0.

License requirements : None

NXOpen::SelectEdge* NXOpen::GeometricUtilities::MatchSurfaceBuilder::Reference ( )

Returns the selected reference edge or curve
Created in NX9.0.0.

License requirements : None

NXOpen::SelectFace* NXOpen::GeometricUtilities::MatchSurfaceBuilder::ReferenceFace ( )

Returns the selected face for reference curve
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::GeometricUtilities::MatchSurfaceBuilder::RegionLimit ( )

Returns the distance limit of deformation region
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::MatchSurfaceBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance
Created in NX9.0.0.
