NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder Class Reference

Represents a GeometricUtilities::ConvertFeatureGroupsToModulesBuilder builder
To create a new instance of this class, use Features::FeatureCollection::CreateConvertFeatureGroupsToModulesBuilder

Created in NX9.0.0. More...

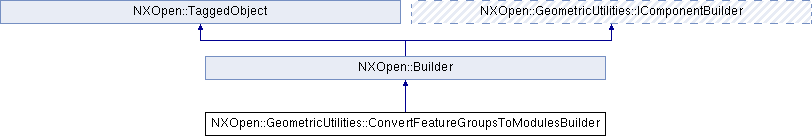

Inheritance diagram for NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder:

Public Member Functions
void	AddAll ()
	Add all feature groups into convertible set Created in NX9.0.0.
void	AddFeatureGroupIntoConvertibleSet (const std::vector< NXOpen::Features::FeatureGroup * > &featureGroups)
	Add feature group into convertible set Created in NX9.0.0.
void	RemoveAll ()
	Remove all feature groups from convertible set Created in NX9.0.0.
void	RemoveFeatureGroupFromConvertibleSet (const std::vector< NXOpen::Features::FeatureGroup * > &featureGroups)
	Remove feature group from convertible set Created in NX9.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricUtilities::ConvertFeatureGroupsToModulesBuilder builder
To create a new instance of this class, use Features::FeatureCollection::CreateConvertFeatureGroupsToModulesBuilder

Created in NX9.0.0.

Member Function Documentation

void NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder::AddAll

(

)

Add all feature groups into convertible set
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder::AddFeatureGroupIntoConvertibleSet

(

const std::vector< NXOpen::Features::FeatureGroup * > &

featureGroups

)

Add feature group into convertible set
Created in NX9.0.0.

License requirements : None

Parameters

featureGroups

featuregroups

void NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder::RemoveAll

(

)

Remove all feature groups from convertible set
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::ConvertFeatureGroupsToModulesBuilder::RemoveFeatureGroupFromConvertibleSet

(

const std::vector< NXOpen::Features::FeatureGroup * > &

featureGroups

)

Remove feature group from convertible set
Created in NX9.0.0.

License requirements : None

Parameters

featureGroups

featuregroups

---

The documentation for this class was generated from the following file:

• GeometricUtilities_ConvertFeatureGroupsToModulesBuilder.hxx
