Represents a @link GeometricAnalysis::SurfaceContinuityAnalysis GeometricAnalysis::SurfaceContinuityAnalysis@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateSurfaceContinuityAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateSurfaceContinuityAnalysisBuilder @endlink  <br>

Default values. More...

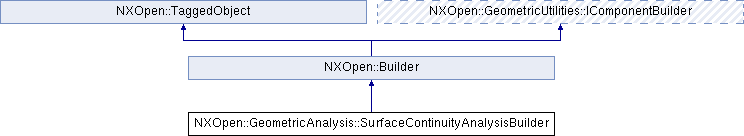

Inheritance diagram for NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder:

Public Types
enum	CurvatureType { CurvatureTypeSectional, CurvatureTypeGaussian, CurvatureTypeMean, CurvatureTypeAbsolute }
	Curvature types. More...

enum	Types { TypesEdgeToEdge, TypesEdgeToFace }
	Two possible types for the dialog. More...

Public Member Functions
NXOpen::GeometricUtilities::CombOptionsBuilder *	CombOptions ()
	Returns the comb display block options Created in NX6.0.0.

NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureType	CurvatureCheck ()
	Returns the curvature check Created in NX6.0.0.

NXOpen::SelectNXObjectList *	Face ()
	Returns the (second) faces.

NXOpen::SelectNXObjectList *	FirstEdge ()
	Returns the first edges or faces Created in NX6.0.0.

bool	G0 ()
	Returns the g0 toggle Created in NX6.0.0.

bool	G1 ()
	Returns the g1 toggle Created in NX6.0.0.

bool	G2 ()
	Returns the g2 toggle Created in NX6.0.0.

bool	G3 ()
	Returns the g3 toggle Created in NX6.0.0.

std::vector< NXOpen::Face * >	GetFace1Array ()
	Returns the edge1 array not used.

NXOpen::SelectNXObjectList *	SecondEdge ()
	Returns the second edges or faces.

void	SetCurvatureCheck (NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureType curvatureCheck)
	Sets the curvature check Created in NX6.0.0.

void	SetG0 (bool g0)
	Sets the g0 toggle Created in NX6.0.0.

void	SetG1 (bool g1)
	Sets the g1 toggle Created in NX6.0.0.

void	SetG2 (bool g2)
	Sets the g2 toggle Created in NX6.0.0.

void	SetG3 (bool g3)
	Sets the g3 toggle Created in NX6.0.0.

void	SetType (NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Types type)
	Sets the type of analysis to perform Created in NX6.0.0.

NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Types	Type ()
	Returns the type of analysis to perform Created in NX6.0.0.

void	UpdateFace (NXOpen::Face *face, const NXOpen::Point3d &selectionPoint)
	User selects or deselects face, update builder m_edge2, m_face2 Created in NX6.0.0.

void	UpdateFirstEdgeFace (NXOpen::DisplayableObject *edgeOrFace, const NXOpen::Point3d &selectionPoint)
	The user selects or deselects first edge or face, update builder m_edge1, m_face1 Created in NX6.0.0.

void	UpdateSecondEdgeFace (NXOpen::DisplayableObject *edgeOrFace, const NXOpen::Point3d &selectionPoint)
	User selects or deselects second edge or face, update builder m_edge2, m_face2 Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link GeometricAnalysis::SurfaceContinuityAnalysis GeometricAnalysis::SurfaceContinuityAnalysis@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateSurfaceContinuityAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateSurfaceContinuityAnalysisBuilder @endlink  <br>

Default values.

Property

Value

CurvatureCheck

Sectional

G0

True

G1

False

G2

False

G3

False

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureType

Curvature types.

Enumerator:

CurvatureTypeSectional	sectional
CurvatureTypeGaussian	gaussian
CurvatureTypeMean	mean
CurvatureTypeAbsolute	absolute

enum NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Types

Two possible types for the dialog.

Enumerator:

TypesEdgeToEdge	edge to edge
TypesEdgeToFace	edge to face

Member Function Documentation

NXOpen::GeometricUtilities::CombOptionsBuilder* NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CombOptions ( )

Returns the comb display block options
Created in NX6.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureType NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureCheck ( )

Returns the curvature check
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Face ( )

Returns the (second) faces.

Used only if the type is EdgeFace
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::FirstEdge ( )

Returns the first edges or faces
Created in NX6.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::G0 ( )

Returns the g0 toggle
Created in NX6.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::G1 ( )

Returns the g1 toggle
Created in NX6.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::G2 ( )

Returns the g2 toggle
Created in NX6.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::G3 ( )

Returns the g3 toggle
Created in NX6.0.0.

License requirements : None

std::vector<NXOpen::Face *> NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::GetFace1Array ( )

Returns the edge1 array not used.

Returns: Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SecondEdge ( )

Returns the second edges or faces.

Used only if the type is EdgeEdge
Created in NX6.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetCurvatureCheck ( NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::CurvatureType curvatureCheck )

Sets the curvature check
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

curvatureCheck curvaturecheck

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetG0 ( bool g0 )

Sets the g0 toggle
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

g0 g0

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetG1 ( bool g1 )

Sets the g1 toggle
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

g1 g1

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetG2 ( bool g2 )

Sets the g2 toggle
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

g2 g2

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetG3 ( bool g3 )

Sets the g3 toggle
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

g3 g3

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::SetType ( NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Types type )

Sets the type of analysis to perform
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

type type

NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Types NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::Type ( )

Returns the type of analysis to perform
Created in NX6.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::UpdateFace	(	NXOpen::Face *	face,
		const NXOpen::Point3d &	selectionPoint
	)

User selects or deselects face, update builder m_edge2, m_face2
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

face	face
selectionPoint	selection point

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::UpdateFirstEdgeFace	(	NXOpen::DisplayableObject *	edgeOrFace,
		const NXOpen::Point3d &	selectionPoint
	)

The user selects or deselects first edge or face, update builder m_edge1, m_face1
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

edgeOrFace	the parent of Face or Edge
selectionPoint	selection point

void NXOpen::GeometricAnalysis::SurfaceContinuityAnalysisBuilder::UpdateSecondEdgeFace	(	NXOpen::DisplayableObject *	edgeOrFace,
		const NXOpen::Point3d &	selectionPoint
	)

User selects or deselects second edge or face, update builder m_edge2, m_face2
Created in NX6.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

edgeOrFace	the parent of Face or Edge
selectionPoint	selection point

The documentation for this class was generated from the following file:

GeometricAnalysis_SurfaceContinuityAnalysisBuilder.hxx
