Represents a @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExObject GeometricAnalysis::SectionAnalysis::SectionAnalysisExObject@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateSectionAnalysisExBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateSectionAnalysisExBuilder @endlink  <br>

Default values. More...

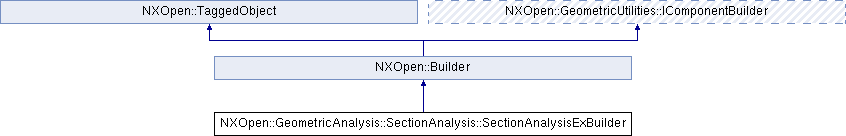

Inheritance diagram for NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder:

Public Types
enum	AlignmentType { AlignmentTypeXYZPlane, AlignmentTypeParallelPlanes, AlignmentTypeCurveAligned, AlignmentTypeIsoparametric, AlignmentTypeRadial }
	The section alignment type. More...

enum	CalculationMethodType { CalculationMethodTypeCurvature, CalculationMethodTypeRadiusofCurvature }
	The calculation method. More...

enum	NeedleDirectionType { NeedleDirectionTypeInside, NeedleDirectionTypeOutside }
	The needle direction. More...

enum	OutputType { OutputTypeAnalysisObject, OutputTypeSectionCurves, OutputTypeBoth }
	The output options. More...

enum	PlacementType { PlacementTypeUniform, PlacementTypeThroughPoints, PlacementTypeBetweenPoints, PlacementTypeInteractive }
	The types of the section placement. More...

enum	ScalingMethodType { ScalingMethodTypeLinear, ScalingMethodTypeLogarithmic }
	The scaling method. More...

Public Member Functions
NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentType	Alignment ()
	Returns the alignment type Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CalculationMethodType	CalculationMethod ()
	Returns the calculation method Created in NX7.0.0.

NXOpen::GeometricUtilities::CombOptionsBuilder *	CombOptions ()
	Returns the comb options specification Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::CurveAlignedBuilder *	CurveAligned ()
	Returns the Curve Aligned section specification.

NXOpen::GeometricAnalysis::SectionAnalysis::InteractiveBuilder *	Interactive ()
	Returns the Interactive placement specification.

NXOpen::GeometricAnalysis::SectionAnalysis::IsoparametricBuilder *	Isoparametric ()
	Returns the Isoparametric section specification.

bool	IsShowInflectionPointsEnabled ()
	Returns a value indicating whether to show the inflection points Created in NX7.0.0.

bool	IsShowLengthEnabled ()
	Returns a value indicating whether to show the length of each section curve Created in NX7.0.0.

bool	IsShowPeakPointsEnabled ()
	Returns a value indicating whether to show the peak points Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::NeedleDirectionType	NeedleDirection ()
	Returns the needle direction Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::OutputType	Output ()
	Returns the output Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::ParallelPlanesExBuilder *	ParallelPlanes ()
	Returns the Parallel Planes section specification.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementType	Placement ()
	Returns the placement Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::RadialBuilder *	Radial ()
	Returns the Radial section specification.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ScalingMethodType	ScalingMethod ()
	Returns the scaling method Created in NX7.0.0.

NXOpen::SelectTaggedObjectList *	SelectObject ()
	Returns the selected objects Created in NX7.0.0.

void	SetAlignment (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentType alignment)
	Sets the alignment type Created in NX7.0.0.

void	SetCalculationMethod (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CalculationMethodType calculationMethod)
	Sets the calculation method Created in NX7.0.0.

void	SetNeedleDirection (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::NeedleDirectionType needleDirection)
	Sets the needle direction Created in NX7.0.0.

void	SetOutput (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::OutputType output)
	Sets the output Created in NX7.0.0.

void	SetPlacement (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementType placement)
	Sets the placement Created in NX7.0.0.

void	SetScalingMethod (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ScalingMethodType scalingMethod)
	Sets the scaling method Created in NX7.0.0.

void	SetShowInflectionPointsEnabled (bool inflection)
	Sets a value indicating whether to show the inflection points Created in NX7.0.0.

void	SetShowLengthEnabled (bool length)
	Sets a value indicating whether to show the length of each section curve Created in NX7.0.0.

void	SetShowPeakPointsEnabled (bool peak)
	Sets a value indicating whether to show the peak points Created in NX7.0.0.

NXOpen::SelectPointList *	SpecifyPoint ()
	Returns the specified points Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::XYZPlaneBuilder *	XYZPlane ()
	Returns the XYZ Planes section specification.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExObject GeometricAnalysis::SectionAnalysis::SectionAnalysisExObject@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateSectionAnalysisExBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateSectionAnalysisExBuilder @endlink  <br>

Default values.

Property

Value

Alignment

XYZPlane

CalculationMethod

Curvature

CurveAligned.IsSpacingEnabled

0

CurveAligned.Number

5

CurveAligned.Offset

0

CurveAligned.Spacing

25

CurveAligned.SpecifiedPlane.Plane

View

CurveAligned.UseProjectedCurve

0

Interactive.IsCutInfiniteEnabled

0

IsShowInflectionPointsEnabled

0

IsShowLengthEnabled

0

IsShowPeakPointsEnabled

0

Isoparametric.IsSpacingEnabled

0

Isoparametric.IsUEnabled

1

Isoparametric.IsVEnabled

1

Isoparametric.Number

5

Isoparametric.Spacing

25

NeedleDirection

Outside

Output

AnalysisObject

ParallelPlanes.IsNumberEnabled

0

ParallelPlanes.IsSpacingEnabled

0

ParallelPlanes.Number

5

ParallelPlanes.Offset

0

ParallelPlanes.Spacing

50 (millimeters part), 2 (inches part)

Placement

Uniform

Radial.IsSpacingEnabled

0

Radial.Number

5

Radial.Offset

0

Radial.RotationAxis

View

Radial.Spacing

72

ScalingMethod

Linear

XYZPlane.IsNumberEnabled

0

XYZPlane.IsSpacingEnabled

0

XYZPlane.IsXEnabled

1

XYZPlane.IsYEnabled

1

XYZPlane.IsZEnabled

1

XYZPlane.Number

5

XYZPlane.Spacing

50 (millimeters part), 2 (inches part)

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentType

The section alignment type.

Enumerator:

AlignmentTypeXYZPlane	The cutting planes are perpendicular to X, Y or Z plane.
AlignmentTypeParallelPlanes	The cutting planes are parallel to a specified plane.
AlignmentTypeCurveAligned	The cutting planes are perpendicular to specified curves.
AlignmentTypeIsoparametric	The sections are along isoparametric lines.
AlignmentTypeRadial	The cutting planes are distributed along a circle.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CalculationMethodType

The calculation method.

Enumerator:

CalculationMethodTypeCurvature	Curvature.
CalculationMethodTypeRadiusofCurvature	Radius of curvature.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::NeedleDirectionType

The needle direction.

Enumerator:

NeedleDirectionTypeInside	Inside.
NeedleDirectionTypeOutside	Outside.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::OutputType

The output options.

Enumerator:

OutputTypeAnalysisObject	Analysis Object.
OutputTypeSectionCurves	section curves
OutputTypeBoth	Both Analysis Object and section curves.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementType

The types of the section placement.

Enumerator:

PlacementTypeUniform	Uniformly distributed.
PlacementTypeThroughPoints	Through the specified points.
PlacementTypeBetweenPoints	Distributed between two specified points.
PlacementTypeInteractive	Interactively specified.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ScalingMethodType

The scaling method.

Enumerator:

ScalingMethodTypeLinear	Linear.
ScalingMethodTypeLogarithmic	Logarithmic.

Member Function Documentation

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Alignment ( )

Returns the alignment type
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CalculationMethodType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CalculationMethod ( )

Returns the calculation method
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricUtilities::CombOptionsBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CombOptions ( )

Returns the comb options specification
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::CurveAlignedBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::CurveAligned ( )

Returns the Curve Aligned section specification.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeCurveAligned GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeCurveAligned@endlink

Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::InteractiveBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Interactive ( )

Returns the Interactive placement specification.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementTypeInteractive GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementTypeInteractive@endlink

Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::IsoparametricBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Isoparametric ( )

Returns the Isoparametric section specification.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeIsoparametric GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeIsoparametric@endlink

Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::IsShowInflectionPointsEnabled ( )

Returns a value indicating whether to show the inflection points
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::IsShowLengthEnabled ( )

Returns a value indicating whether to show the length of each section curve
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::IsShowPeakPointsEnabled ( )

Returns a value indicating whether to show the peak points
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::NeedleDirectionType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::NeedleDirection ( )

Returns the needle direction
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::OutputType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Output ( )

Returns the output
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::ParallelPlanesExBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ParallelPlanes ( )

Returns the Parallel Planes section specification.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeParallelPlanes GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeParallelPlanes@endlink

Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::PlacementType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Placement ( )

Returns the placement
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::RadialBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::Radial ( )

Returns the Radial section specification.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeCurveAligned GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentTypeCurveAligned@endlink

Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ScalingMethodType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::ScalingMethod ( )

Returns the scaling method
Created in NX7.0.0.

License requirements : None

NXOpen::SelectTaggedObjectList* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::SelectObject ( )

Returns the selected objects
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::SetAlignment ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisExBuilder::AlignmentType alignment )

Sets the alignment type
Created in NX7.0.0.
