Represents a GeometricAnalysis::SectionAnalysisObject builder. More...

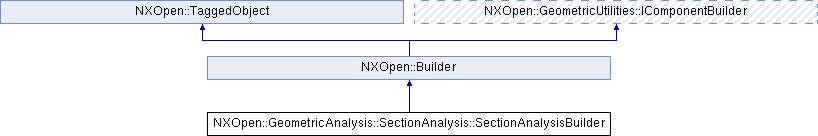

Inheritance diagram for NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder:

Public Types
enum	CalculationMethodType { CalculationMethodTypeCurvature, CalculationMethodTypeRadiusofCurvature }
	The calculation method. More...

enum	NeedleDirectionType { NeedleDirectionTypeInside, NeedleDirectionTypeOutside }
	The needle direction. More...

enum	OutputType { OutputTypeAnalysisObject, OutputTypeSectionCurves, OutputTypeBoth }
	The output options. More...

enum	ScalingMethodType { ScalingMethodTypeLinear, ScalingMethodTypeLogarithmic }
	The scaling method. More...

enum	Types { TypesParallel, TypesIsoparametric, TypesAlongCurve, TypesQuadrilateral, TypesTriangular, TypesCircular }
	Represents the sectioning types. More...

Public Member Functions
NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethodType	CalculationMethod ()
	Returns the calculation method Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::CircularGridBuilder *	CircularGrid ()
	Returns the circular grid.

NXOpen::GeometricUtilities::CombOptionsBuilder *	CombOptions ()
	Returns the comb options Created in NX6.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirectionType	NeedleDirection ()
	Returns the needle direction Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::OutputType	Output ()
	Returns the output Created in NX7.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::QuadrilateralGridBuilder *	QuadrilateralGrid ()
	Returns the quadrilateral grid.

NXOpen::SelectTaggedObjectList *	References ()
	Returns the references (faces or faceted bodies) Created in NX6.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethodType	ScalingMethod ()
	Returns the scaling method Created in NX7.0.0.

void	SetCalculationMethod (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethodType calculationMethod)
	Sets the calculation method Created in NX7.0.0.

void	SetNeedleDirection (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirectionType needleDirection)
	Sets the needle direction Created in NX7.0.0.

void	SetOutput (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::OutputType output)
	Sets the output Created in NX7.0.0.

void	SetScalingMethod (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethodType scalingMethod)
	Sets the scaling method Created in NX7.0.0.

void	SetShowInflectionPoints (bool showInflectionPoints)
	Sets the flag to show the inflection points of planar sections Created in NX6.0.0.

void	SetShowPeakPoints (bool showPeakPoints)
	Sets the flag to show the peak points of the sections Created in NX6.0.0.

void	SetShowSectionLength (bool showSectionLength)
	Sets the flag to show the section length labels Created in NX6.0.0.

void	SetType (NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Types type)
	Sets the sectioning type Created in NX6.0.0.

bool	ShowInflectionPoints ()
	Returns the flag to show the inflection points of planar sections Created in NX6.0.0.

bool	ShowPeakPoints ()
	Returns the flag to show the peak points of the sections Created in NX6.0.0.

bool	ShowSectionLength ()
	Returns the flag to show the section length labels Created in NX6.0.0.

NXOpen::GeometricAnalysis::SectionAnalysis::TriangularGridBuilder *	TriangularGrid ()
	Returns the triangular grid.

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Types	Type ()
	Returns the sectioning type Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricAnalysis::SectionAnalysisObject builder.

To create a new instance of this class, use GeometricAnalysis::AnalysisObjectCollection::CreateSectionAnalysisBuilder
Default values.

Property

Value

CalculationMethod

Curvature

CircularGrid.CircularFrame.AnchorAttachment

None

CircularGrid.CircularFrame.Subtype

Arbitrary

CircularGrid.Spacing.BoundSections1

True

CircularGrid.Spacing.BoundSections2

True

CircularGrid.Spacing.Interval1

45.0

CircularGrid.Spacing.Interval2

50.0 (millimeters part), 2.0 (inches part)

CircularGrid.Spacing.LockInterval1

False

CircularGrid.Spacing.LockInterval2

False

CircularGrid.Spacing.SectionNumber1

5

CircularGrid.Spacing.SectionNumber2

5

CircularGrid.SpecifiedPlane.Plane

View

NeedleDirection

Outside

Output

AnalysisObject

QuadrilateralGrid.QuadrilateralFrame.AnchorAttachment

None

QuadrilateralGrid.QuadrilateralFrame.Subtype

Arbitrary

ScalingMethod

Linear

ShowInflectionPoints

False

ShowPeakPoints

False

ShowSectionLength

False

TriangularGrid.TriangularFrame.AnchorAttachment

None

TriangularGrid.TriangularFrame.Subtype

Arbitrary

Type

Parallel

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethodType

The calculation method.

Enumerator:

CalculationMethodTypeCurvature	Curvature.
CalculationMethodTypeRadiusofCurvature	Radius of curvature.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirectionType

The needle direction.

Enumerator:

NeedleDirectionTypeInside	Inside.
NeedleDirectionTypeOutside	Outside.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::OutputType

The output options.

Enumerator:

OutputTypeAnalysisObject	Analysis Object.
OutputTypeSectionCurves	section curves
OutputTypeBoth	Both Analysis Object and section curves.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethodType

The scaling method.

Enumerator:

ScalingMethodTypeLinear	Linear.
ScalingMethodTypeLogarithmic	Logarithmic.

enum NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Types

Represents the sectioning types.

Enumerator:

TypesParallel	Parallel Planes.
TypesIsoparametric	Isoparametric.
TypesAlongCurve	Along Curve.
TypesQuadrilateral	Quadrilateral.
TypesTriangular	Triangular.
TypesCircular	Circular.

Member Function Documentation

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethodType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethod ( )

Returns the calculation method
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::CircularGridBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CircularGrid ( )

Returns the circular grid.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesCircular GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesCircular@endlink

Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::GeometricUtilities::CombOptionsBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CombOptions ( )

Returns the comb options
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirectionType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirection ( )

Returns the needle direction
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::OutputType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Output ( )

Returns the output
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::SectionAnalysis::QuadrilateralGridBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::QuadrilateralGrid ( )

Returns the quadrilateral grid.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesQuadrilateral GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesQuadrilateral@endlink

Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::SelectTaggedObjectList* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::References ( )

Returns the references (faces or faceted bodies)
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethodType NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethod ( )

Returns the scaling method
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetCalculationMethod ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::CalculationMethodType calculationMethod )

Sets the calculation method
Created in NX7.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

calculationMethod calculationmethod

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetNeedleDirection ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::NeedleDirectionType needleDirection )

Sets the needle direction
Created in NX7.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

needleDirection needledirection

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetOutput ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::OutputType output )

Sets the output
Created in NX7.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

output output

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetScalingMethod ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ScalingMethodType scalingMethod )

Sets the scaling method
Created in NX7.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

scalingMethod scalingmethod

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetShowInflectionPoints ( bool showInflectionPoints )

Sets the flag to show the inflection points of planar sections
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showInflectionPoints showinflectionpoints

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetShowPeakPoints ( bool showPeakPoints )

Sets the flag to show the peak points of the sections
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showPeakPoints showpeakpoints

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetShowSectionLength ( bool showSectionLength )

Sets the flag to show the section length labels
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showSectionLength showsectionlength

void NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::SetType ( NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Types type )

Sets the sectioning type
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

type type

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ShowInflectionPoints ( )

Returns the flag to show the inflection points of planar sections
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ShowPeakPoints ( )

Returns the flag to show the peak points of the sections
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

bool NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::ShowSectionLength ( )

Returns the flag to show the section length labels
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::GeometricAnalysis::SectionAnalysis::TriangularGridBuilder* NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TriangularGrid ( )

Returns the triangular grid.

           Only used when type is @link GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesTriangular GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::TypesTriangular@endlink

Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Types NXOpen::GeometricAnalysis::SectionAnalysis::SectionAnalysisBuilder::Type ( )

Returns the sectioning type
Created in NX6.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

The documentation for this class was generated from the following file:

GeometricAnalysis_SectionAnalysis_SectionAnalysisBuilder.hxx
