NXOpen::GeometricAnalysis::DraftAnalysisBuilder Class Reference

Represents a Draft Analysis builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateDraftAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateDraftAnalysisBuilder @endlink  <br>

Default values. More...

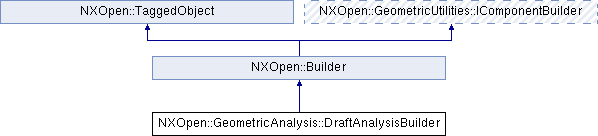

Inheritance diagram for NXOpen::GeometricAnalysis::DraftAnalysisBuilder:

Public Types
enum	DrawDirection { DrawDirectionVector, DrawDirectionOrientation }
	define draw direction items More...
enum	SelectOutput { SelectOutputAnalysisObject, SelectOutputIsoclines, SelectOutputBoth }
	define output options More...

Public Member Functions
void	AddDynamicPoints ()
	Adds dynamic points to the draft analysis object Created in NX8.0.0.
bool	CoupleLimit ()
	Returns the coupling limit Created in NX8.0.0.
bool	CreateCSYS ()
	Returns the datum CSYS creation Created in NX8.0.1.
void	DeleteDynamicLabels (const std::vector< bool > &deletedLabels)
	Deletes dynamic labels whose corresponding positions are set to true in the array Created in NX8.0.0.
void	DeselectFaces (const std::vector< NXOpen::DisplayableObject * > &faces)
	Deselects faces Created in NX8.0.0.
NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawDirection	DrawOption ()
	Returns the draw option Created in NX8.0.0.
NXOpen::Matrix3x3	DrawOrientation ()
	Returns the draw orientation Created in NX8.0.0.
NXOpen::Point3d	DrawOrigin ()
	Returns the draw origin Created in NX8.0.0.
NXOpen::Direction *	DrawVector ()
	Returns the draw vector Created in NX8.0.0.
NXOpen::Features::GeometricConstraintDataManager *	DynamicLabel ()
	Returns the constraint manager Created in NX8.0.0.
std::vector< double >	GetColorInsideNegative ()
	Returns the negative inside color.
std::vector< double >	GetColorInsidePositive ()
	Returns the positive inside color.
std::vector< double >	GetColorOutsideNegative ()
	Returns the negative outside color.
std::vector< double >	GetColorOutsidePositive ()
	Returns the positive outside color.
bool	JoinIsocline ()
	Returns the joining isocline Created in NX8.0.0.
double	LimitAngleNegative ()
	Returns the negative limit angle Created in NX8.0.0.
double	LimitAnglePositive ()
	Returns the positive limit angle Created in NX8.0.0.
NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectOutput	OutputOption ()
	Returns the output option Created in NX8.0.0.
void	RemoveLabelParents (const std::vector< NXOpen::DisplayableObject * > &parents)
	Removes dynamic label parents Created in NX8.0.0.
NXOpen::GeometricUtilities::DisplayResolutionBuilder *	Resolution ()
	Returns the display resolution Created in NX8.0.0.
void	ReverseAllNormals ()
	Reverses all normals Created in NX8.0.0.
NXOpen::SelectDisplayableObject *	ReverseIndividual ()
	Returns the individual face normal Created in NX8.0.0.
void	ReverseNormal (NXOpen::DisplayableObject *face)
	Reverses individual face normal Created in NX8.0.0.
NXOpen::SelectDisplayableObjectList *	SelectObject ()
	Returns the faces or facet bodies Created in NX8.0.0.
void	SetColorInsideNegative (const std::vector< double > &colorInsideNeg)
	Sets the negative inside color Created in NX8.0.0.
void	SetColorInsidePositive (const std::vector< double > &colorInsidePos)
	Sets the positive inside color Created in NX8.0.0.
void	SetColorOutsideNegative (const std::vector< double > &colorOutsideNeg)
	Sets the negative outside color Created in NX8.0.0.
void	SetColorOutsidePositive (const std::vector< double > &colorOutsidePos)
	Sets the positive outside color Created in NX8.0.0.
void	SetCoupleLimit (bool coupleLimit)
	Sets the coupling limit Created in NX8.0.0.
void	SetCreateCSYS (bool createCSYS)
	Sets the datum CSYS creation Created in NX8.0.1.
void	SetDrawOption (NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawDirection drawOption)
	Sets the draw option Created in NX8.0.0.
void	SetDrawOrientation (const NXOpen::Matrix3x3 &drawOrientation)
	Sets the draw orientation Created in NX8.0.0.
void	SetDrawOrigin (const NXOpen::Point3d &drawOrigin)
	Sets the draw origin Created in NX8.0.0.
void	SetDrawVector (NXOpen::Direction *drawVector)
	Sets the draw vector Created in NX8.0.0.
void	SetDynamicNormal (int index, const NXOpen::Vector3d &normal)
	Sets dynamic normal Created in NX8.0.0.
void	SetDynamicParent (int index, NXOpen::DisplayableObject *parent)
	Sets dynamic parent Created in NX8.0.0.
void	SetJoinIsocline (bool joinIsocline)
	Sets the joining isocline Created in NX8.0.0.
void	SetLimitAngleNegative (double limitAngleNeg)
	Sets the negative limit angle Created in NX8.0.0.
void	SetLimitAnglePositive (double limitAnglePos)
	Sets the positive limit angle Created in NX8.0.0.
void	SetOutputOption (NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectOutput outputOption)
	Sets the output option Created in NX8.0.0.
void	SetShowIsoclineNegative (bool showIsoclineNeg)
	Sets the negative isocline Created in NX8.0.0.
void	SetShowIsoclinePositive (bool showIsoclinePos)
	Sets the positive isocline Created in NX8.0.0.
void	SetShowPartingLine (bool showPartingLine)
	Sets the show parting line Created in NX8.0.0.
void	SetTotalDynamicNormals (int total)
	Sets number of dynamic normals Created in NX8.0.0.
void	SetTranslucencyInsideNegative (int translucencyInsideNeg)
	Sets the negative inside translucency Created in NX8.0.0.
void	SetTranslucencyInsidePositive (int translucencyInsidePos)
	Sets the positive inside translucency Created in NX8.0.0.
void	SetTranslucencyOutsideNegative (int translucencyOutsideNeg)
	Sets the negative outside tanslucency Created in NX8.0.0.
void	SetTranslucencyOutsidePositive (int translucencyOutsidePos)
	Sets the positive outside translucenty Created in NX8.0.0.
bool	ShowIsoclineNegative ()
	Returns the negative isocline Created in NX8.0.0.
bool	ShowIsoclinePositive ()
	Returns the positive isocline Created in NX8.0.0.
bool	ShowPartingLine ()
	Returns the show parting line Created in NX8.0.0.
int	TranslucencyInsideNegative ()
	Returns the negative inside translucency Created in NX8.0.0.
int	TranslucencyInsidePositive ()
	Returns the positive inside translucency Created in NX8.0.0.
int	TranslucencyOutsideNegative ()
	Returns the negative outside tanslucency Created in NX8.0.0.
int	TranslucencyOutsidePositive ()
	Returns the positive outside translucenty Created in NX8.0.0.
void	UpdateReverseMap ()
	Updates reverse map Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Draft Analysis builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateDraftAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateDraftAnalysisBuilder @endlink  <br>

Default values.

Property	Value
CoupleLimit	1
CreateCSYS	0
DrawOption	Orientation
JoinIsocline	0
LimitAngleNegative	-5
LimitAnglePositive	5
OutputOption	AnalysisObject
Resolution.AngleTolerance	15.0
Resolution.EdgeTolerance	0.005
Resolution.FaceTolerance	0.005
Resolution.Resolution	Standard
Resolution.WidthTolerance	0.3
ShowIsoclineNegative	0
ShowIsoclinePositive	0
ShowPartingLine	0
TranslucencyInsideNegative	0
TranslucencyInsidePositive	0
TranslucencyOutsideNegative	0
TranslucencyOutsidePositive	0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawDirection

define draw direction items

Enumerator:

DrawDirectionVector	vector;
DrawDirectionOrientation	orientation;

enum NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectOutput

define output options

Enumerator:

SelectOutputAnalysisObject	analysis object;
SelectOutputIsoclines	isoclines;
SelectOutputBoth	analysis object and isoclines;

Member Function Documentation

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::AddDynamicPoints

(

)

Adds dynamic points to the draft analysis object
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::CoupleLimit

(

)

Returns the coupling limit
Created in NX8.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::CreateCSYS

(

)

Returns the datum CSYS creation
Created in NX8.0.1.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DeleteDynamicLabels

(

const std::vector< bool > &

deletedLabels

)

Deletes dynamic labels whose corresponding positions are set to true in the array
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

deletedLabels

deletedlabels

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DeselectFaces

(

const std::vector< NXOpen::DisplayableObject * > &

faces

)

Deselects faces
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

faces

faces

NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawDirection NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawOption

(

)

Returns the draw option
Created in NX8.0.0.

License requirements : None

NXOpen::Matrix3x3 NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawOrientation

(

)

Returns the draw orientation
Created in NX8.0.0.

License requirements : None

NXOpen::Point3d NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawOrigin

(

)

Returns the draw origin
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawVector

(

)

Returns the draw vector
Created in NX8.0.0.

License requirements : None

NXOpen::Features::GeometricConstraintDataManager* NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DynamicLabel

(

)

Returns the constraint manager
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::GeometricAnalysis::DraftAnalysisBuilder::GetColorInsideNegative

(

)

Returns the negative inside color.

Returns

Array of 3 RGB values, each between 0 and 1
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::GeometricAnalysis::DraftAnalysisBuilder::GetColorInsidePositive

(

)

Returns the positive inside color.

Returns

Array of 3 RGB values, each between 0 and 1
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::GeometricAnalysis::DraftAnalysisBuilder::GetColorOutsideNegative

(

)

Returns the negative outside color.

Returns

Array of 3 RGB values, each between 0 and 1
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::GeometricAnalysis::DraftAnalysisBuilder::GetColorOutsidePositive

(

)

Returns the positive outside color.

Returns

Array of 3 RGB values, each between 0 and 1
Created in NX8.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::JoinIsocline

(

)

Returns the joining isocline
Created in NX8.0.0.

License requirements : None

double NXOpen::GeometricAnalysis::DraftAnalysisBuilder::LimitAngleNegative

(

)

Returns the negative limit angle
Created in NX8.0.0.

License requirements : None

double NXOpen::GeometricAnalysis::DraftAnalysisBuilder::LimitAnglePositive

(

)

Returns the positive limit angle
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectOutput NXOpen::GeometricAnalysis::DraftAnalysisBuilder::OutputOption

(

)

Returns the output option
Created in NX8.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::RemoveLabelParents

(

const std::vector< NXOpen::DisplayableObject * > &

parents

)

Removes dynamic label parents
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

parents

parents

NXOpen::GeometricUtilities::DisplayResolutionBuilder* NXOpen::GeometricAnalysis::DraftAnalysisBuilder::Resolution

(

)

Returns the display resolution
Created in NX8.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ReverseAllNormals

(

)

Reverses all normals
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

NXOpen::SelectDisplayableObject* NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ReverseIndividual

(

)

Returns the individual face normal
Created in NX8.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ReverseNormal

(

NXOpen::DisplayableObject *

face

)

Reverses individual face normal
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

face

face

NXOpen::SelectDisplayableObjectList* NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectObject

(

)

Returns the faces or facet bodies
Created in NX8.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetColorInsideNegative

(

const std::vector< double > &

colorInsideNeg

)

Sets the negative inside color
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

colorInsideNeg

Array of 3 RGB values, each between 0 and 1

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetColorInsidePositive

(

const std::vector< double > &

colorInsidePos

)

Sets the positive inside color
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

colorInsidePos

Array of 3 RGB values, each between 0 and 1

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetColorOutsideNegative

(

const std::vector< double > &

colorOutsideNeg

)

Sets the negative outside color
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

colorOutsideNeg

Array of 3 RGB values, each between 0 and 1

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetColorOutsidePositive

(

const std::vector< double > &

colorOutsidePos

)

Sets the positive outside color
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

colorOutsidePos

Array of 3 RGB values, each between 0 and 1

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetCoupleLimit

(

bool

coupleLimit

)

Sets the coupling limit
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

coupleLimit

couplelimit

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetCreateCSYS

(

bool

createCSYS

)

Sets the datum CSYS creation
Created in NX8.0.1.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

createCSYS

createcsys

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDrawOption

(

NXOpen::GeometricAnalysis::DraftAnalysisBuilder::DrawDirection

drawOption

)

Sets the draw option
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

drawOption

drawoption

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDrawOrientation

(

const NXOpen::Matrix3x3 &

drawOrientation

)

Sets the draw orientation
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

drawOrientation

draworientation

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDrawOrigin

(

const NXOpen::Point3d &

drawOrigin

)

Sets the draw origin
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

drawOrigin

draworigin

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDrawVector

(

NXOpen::Direction *

drawVector

)

Sets the draw vector
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

drawVector

drawvector

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDynamicNormal	(	int	index,
		const NXOpen::Vector3d &	normal
	)

Sets dynamic normal
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

index	index
normal	normal

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetDynamicParent	(	int	index,
		NXOpen::DisplayableObject *	parent
	)

Sets dynamic parent
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

index	index
parent	parent

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetJoinIsocline

(

bool

joinIsocline

)

Sets the joining isocline
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

joinIsocline

joinisocline

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetLimitAngleNegative

(

double

limitAngleNeg

)

Sets the negative limit angle
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

limitAngleNeg

limitangleneg

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetLimitAnglePositive

(

double

limitAnglePos

)

Sets the positive limit angle
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

limitAnglePos

limitanglepos

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetOutputOption

(

NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SelectOutput

outputOption

)

Sets the output option
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

outputOption

outputoption

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetShowIsoclineNegative

(

bool

showIsoclineNeg

)

Sets the negative isocline
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showIsoclineNeg

showisoclineneg

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetShowIsoclinePositive

(

bool

showIsoclinePos

)

Sets the positive isocline
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showIsoclinePos

showisoclinepos

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetShowPartingLine

(

bool

showPartingLine

)

Sets the show parting line
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

showPartingLine

showpartingline

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetTotalDynamicNormals

(

int

total

)

Sets number of dynamic normals
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

total

total

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetTranslucencyInsideNegative

(

int

translucencyInsideNeg

)

Sets the negative inside translucency
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

translucencyInsideNeg

translucencyinsideneg

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetTranslucencyInsidePositive

(

int

translucencyInsidePos

)

Sets the positive inside translucency
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

translucencyInsidePos

translucencyinsidepos

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetTranslucencyOutsideNegative

(

int

translucencyOutsideNeg

)

Sets the negative outside tanslucency
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

translucencyOutsideNeg

translucencyoutsideneg

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::SetTranslucencyOutsidePositive

(

int

translucencyOutsidePos

)

Sets the positive outside translucenty
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

Parameters

translucencyOutsidePos

translucencyoutsidepos

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ShowIsoclineNegative

(

)

Returns the negative isocline
Created in NX8.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ShowIsoclinePositive

(

)

Returns the positive isocline
Created in NX8.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::DraftAnalysisBuilder::ShowPartingLine

(

)

Returns the show parting line
Created in NX8.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DraftAnalysisBuilder::TranslucencyInsideNegative

(

)

Returns the negative inside translucency
Created in NX8.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DraftAnalysisBuilder::TranslucencyInsidePositive

(

)

Returns the positive inside translucency
Created in NX8.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DraftAnalysisBuilder::TranslucencyOutsideNegative

(

)

Returns the negative outside tanslucency
Created in NX8.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DraftAnalysisBuilder::TranslucencyOutsidePositive

(

)

Returns the positive outside translucenty
Created in NX8.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DraftAnalysisBuilder::UpdateReverseMap

(

)

Updates reverse map
Created in NX8.0.0.

License requirements : studio_analyze ("STUDIO ANALYZE")

---

The documentation for this class was generated from the following file:

• GeometricAnalysis_DraftAnalysisBuilder.hxx
