Represents a GeometricAnalysis::DeviationChecking
To create a new instance of this class, use GeometricAnalysis::AnalysisManager::CreateDeviationCheckingObject

Created in NX6.0.0. More...

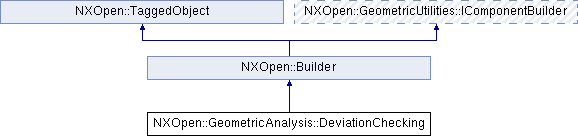

Inheritance diagram for NXOpen::GeometricAnalysis::DeviationChecking:

Public Types
enum	DeviationOptions { DeviationOptionsNoDeviations, DeviationOptionsAllDeviations, DeviationOptionsMaximumDistance, DeviationOptionsMinimumDistance, DeviationOptionsMaximumAngle, DeviationOptionsMinimumAngle }
	the deviation type to be shown More...

enum	Types { TypesCurveToCurve, TypesCurveToFace, TypesEdgeToFace, TypesFaceToFace, TypesEdgeToEdge }
	the type of deviation checking to be performed More...

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance to be used for the deviation checking Created in NX6.0.0.

void	Check ()
	Performs deviation checking.

NXOpen::SelectIBaseCurve *	Curve ()
	Returns the curve - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToFace .

NXOpen::GeometricAnalysis::DeviationChecking::DeviationOptions	DeviationOption ()
	Returns the number or type of deviations to be shown for the deviation checking Created in NX6.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance to be used for the deviation checking Created in NX6.0.0.

NXOpen::SelectIParameterizedSurface *	FaceOfFirstEdge ()
	Returns the face associated with the first edge or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

NXOpen::SelectIParameterizedSurface *	FaceOfSecondEdge ()
	Returns the face associated with the second edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge .

NXOpen::SelectIBaseCurve *	FirstCurve ()
	Returns the first curve or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve .

NXOpen::SelectIBaseCurve *	FirstEdge ()
	Returns the first edge or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

NXOpen::SelectIParameterizedSurface *	FirstFace ()
	Returns the first face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesFaceToFace .

int	NumberCheckPoints ()
	Returns the number of check points to be shown for the deviation checking - required when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve or GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToEdge Created in NX6.0.0.

int	NumberUcheckPoints ()
	Returns the number of u check points to be shown for the deviation checking.

int	NumberVcheckPoints ()
	Returns the number of v check points to be shown for the deviation checking.

NXOpen::SelectIBaseCurve *	SecondCurve ()
	Returns the second curve or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve .

NXOpen::SelectIBaseCurve *	SecondEdge ()
	Returns the second edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge .

NXOpen::SelectIParameterizedSurface *	SecondFace ()
	Returns the second face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesFaceToFace or the face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance to be used for the deviation checking Created in NX6.0.0.

void	SetDeviationOption (NXOpen::GeometricAnalysis::DeviationChecking::DeviationOptions deviationOption)
	Sets the number or type of deviations to be shown for the deviation checking Created in NX6.0.0.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance to be used for the deviation checking Created in NX6.0.0.

void	SetNumberCheckPoints (int numberCheckPoints)
	Sets the number of check points to be shown for the deviation checking - required when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve or GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToEdge Created in NX6.0.0.

void	SetNumberUcheckPoints (int numberUCheckPoints)
	Sets the number of u check points to be shown for the deviation checking.

void	SetNumberVcheckPoints (int numberVCheckPoints)
	Sets the number of v check points to be shown for the deviation checking.

void	SetType (NXOpen::GeometricAnalysis::DeviationChecking::Types type)
	Sets the deviation checking type.

NXOpen::GeometricAnalysis::DeviationChecking::Types	Type ()
	Returns the deviation checking type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricAnalysis::DeviationChecking
To create a new instance of this class, use GeometricAnalysis::AnalysisManager::CreateDeviationCheckingObject

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::DeviationChecking::DeviationOptions

the deviation type to be shown

Enumerator:

DeviationOptionsNoDeviations	show no deviations
DeviationOptionsAllDeviations	show all deviations
DeviationOptionsMaximumDistance	show maximum distance deviation
DeviationOptionsMinimumDistance	show minimum distance deviation
DeviationOptionsMaximumAngle	show maximum angle deviation
DeviationOptionsMinimumAngle	show minimum angle deviation

enum NXOpen::GeometricAnalysis::DeviationChecking::Types

the type of deviation checking to be performed

Enumerator:

TypesCurveToCurve	check curve/edge to curve/edge deviation
TypesCurveToFace	check curve/edge to face deviation
TypesEdgeToFace	check edge to face deviation
TypesFaceToFace	check face to face deviation
TypesEdgeToEdge	check edge to edge deviation

Member Function Documentation

double NXOpen::GeometricAnalysis::DeviationChecking::AngleTolerance ( )

Returns the angle tolerance to be used for the deviation checking
Created in NX6.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DeviationChecking::Check ( )

Performs deviation checking.

Before calling this method, set property GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType to specify the type of deviation checking, and the two objects (curve/face/edge) to be used the deviation checking. The type of the objects required depends on GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType set above. Also set the number check points to be displayed or u and v check points, the distance tolerance, and the angle tolerance before calling the method GeometricAnalysis::DeviationChecking::Check . GeometricAnalysis::DeviationChecking::Check displays the deviation as per the specification above in the graphics and lists in the information window of NX.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIBaseCurve* NXOpen::GeometricAnalysis::DeviationChecking::Curve ( )

Returns the curve - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToFace .

Created in NX6.0.0.

License requirements : None

NXOpen::GeometricAnalysis::DeviationChecking::DeviationOptions NXOpen::GeometricAnalysis::DeviationChecking::DeviationOption ( )

Returns the number or type of deviations to be shown for the deviation checking
Created in NX6.0.0.

License requirements : None

double NXOpen::GeometricAnalysis::DeviationChecking::DistanceTolerance ( )

Returns the distance tolerance to be used for the deviation checking
Created in NX6.0.0.

License requirements : None

NXOpen::SelectIParameterizedSurface* NXOpen::GeometricAnalysis::DeviationChecking::FaceOfFirstEdge ( )

Returns the face associated with the first edge or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIParameterizedSurface* NXOpen::GeometricAnalysis::DeviationChecking::FaceOfSecondEdge ( )

Returns the face associated with the second edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIBaseCurve* NXOpen::GeometricAnalysis::DeviationChecking::FirstCurve ( )

Returns the first curve or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIBaseCurve* NXOpen::GeometricAnalysis::DeviationChecking::FirstEdge ( )

Returns the first edge or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIParameterizedSurface* NXOpen::GeometricAnalysis::DeviationChecking::FirstFace ( )

Returns the first face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesFaceToFace .

Created in NX6.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DeviationChecking::NumberCheckPoints ( )

Returns the number of check points to be shown for the deviation checking - required when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve or GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToEdge
Created in NX6.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DeviationChecking::NumberUcheckPoints ( )

Returns the number of u check points to be shown for the deviation checking.

     - required when @link GeometricAnalysis::DeviationChecking::Type GeometricAnalysis::DeviationChecking::Type @endlink and @link GeometricAnalysis::DeviationChecking::SetType GeometricAnalysis::DeviationChecking::SetType @endlink  is set to
     @link GeometricAnalysis::DeviationChecking::TypesFaceToFace GeometricAnalysis::DeviationChecking::TypesFaceToFace@endlink

Created in NX6.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::DeviationChecking::NumberVcheckPoints ( )

Returns the number of v check points to be shown for the deviation checking.

     - required when @link GeometricAnalysis::DeviationChecking::Type GeometricAnalysis::DeviationChecking::Type @endlink and @link GeometricAnalysis::DeviationChecking::SetType GeometricAnalysis::DeviationChecking::SetType @endlink  is set to
     @link GeometricAnalysis::DeviationChecking::TypesFaceToFace GeometricAnalysis::DeviationChecking::TypesFaceToFace@endlink

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIBaseCurve* NXOpen::GeometricAnalysis::DeviationChecking::SecondCurve ( )

Returns the second curve or edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIBaseCurve* NXOpen::GeometricAnalysis::DeviationChecking::SecondEdge ( )

Returns the second edge - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesEdgeToEdge .

Created in NX6.0.0.

License requirements : None

NXOpen::SelectIParameterizedSurface* NXOpen::GeometricAnalysis::DeviationChecking::SecondFace ( )

Returns the second face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesFaceToFace or the face - required for the deviation checking when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace .

Created in NX6.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::DeviationChecking::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance to be used for the deviation checking
Created in NX6.0.0.

License requirements : None

Parameters

angleTolerance angletolerance

void NXOpen::GeometricAnalysis::DeviationChecking::SetDeviationOption ( NXOpen::GeometricAnalysis::DeviationChecking::DeviationOptions deviationOption )

Sets the number or type of deviations to be shown for the deviation checking
Created in NX6.0.0.

License requirements : None

Parameters

deviationOption deviationoption

void NXOpen::GeometricAnalysis::DeviationChecking::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance to be used for the deviation checking
Created in NX6.0.0.

License requirements : None

Parameters

distanceTolerance distancetolerance

void NXOpen::GeometricAnalysis::DeviationChecking::SetNumberCheckPoints ( int numberCheckPoints )

Sets the number of check points to be shown for the deviation checking - required when GeometricAnalysis::DeviationChecking::Type and GeometricAnalysis::DeviationChecking::SetType is set to GeometricAnalysis::DeviationChecking::TypesCurveToCurve or GeometricAnalysis::DeviationChecking::TypesCurveToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToFace or GeometricAnalysis::DeviationChecking::TypesEdgeToEdge
Created in NX6.0.0.

License requirements : None

Parameters

numberCheckPoints numbercheckpoints

void NXOpen::GeometricAnalysis::DeviationChecking::SetNumberUcheckPoints ( int numberUCheckPoints )

Sets the number of u check points to be shown for the deviation checking.

     - required when @link GeometricAnalysis::DeviationChecking::Type GeometricAnalysis::DeviationChecking::Type @endlink and @link GeometricAnalysis::DeviationChecking::SetType GeometricAnalysis::DeviationChecking::SetType @endlink  is set to
     @link GeometricAnalysis::DeviationChecking::TypesFaceToFace GeometricAnalysis::DeviationChecking::TypesFaceToFace@endlink

Created in NX6.0.0.

License requirements : None

Parameters

numberUCheckPoints numberucheckpoints

void NXOpen::GeometricAnalysis::DeviationChecking::SetNumberVcheckPoints ( int numberVCheckPoints )

Sets the number of v check points to be shown for the deviation checking.

     - required when @link GeometricAnalysis::DeviationChecking::Type GeometricAnalysis::DeviationChecking::Type @endlink and @link GeometricAnalysis::DeviationChecking::SetType GeometricAnalysis::DeviationChecking::SetType @endlink  is set to
     @link GeometricAnalysis::DeviationChecking::TypesFaceToFace GeometricAnalysis::DeviationChecking::TypesFaceToFace@endlink

Created in NX6.0.0.

License requirements : None

Parameters

numberVCheckPoints numbervcheckpoints

void NXOpen::GeometricAnalysis::DeviationChecking::SetType ( NXOpen::GeometricAnalysis::DeviationChecking::Types type )

Sets the deviation checking type.

Depending on the value of the deviation checking type, different inputs are required. See the documentation for each of the inputs.
Created in NX6.0.0.

License requirements : None

Parameters

type type

NXOpen::GeometricAnalysis::DeviationChecking::Types NXOpen::GeometricAnalysis::DeviationChecking::Type ( )

Returns the deviation checking type.

Depending on the value of the deviation checking type, different inputs are required. See the documentation for each of the inputs.
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

GeometricAnalysis_DeviationChecking.hxx
