Represents a @link GeometricAnalysis::CurveCurvatureAnalysis GeometricAnalysis::CurveCurvatureAnalysis@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateCurveCurvatureAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateCurveCurvatureAnalysisBuilder @endlink  <br>

Default values. More...

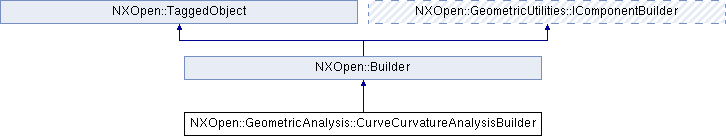

Inheritance diagram for NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder:

Public Types
enum	CalculationMethod { CalculationMethodCurvature, CalculationMethodRadiusofCurvature }
	Enumeration for needle calculation method. More...

enum	DisplayStyle { DisplayStyleLinear, DisplayStyleLogarithmic }
	Enumeration for needle display type. More...

enum	LabelValues { LabelValuesCurvature, LabelValuesRadiusofCurvature }
	Enumeration for label computation method. More...

enum	NeedleDirection { NeedleDirectionInside, NeedleDirectionOutside }
	Enumeration for needle direction type. More...

enum	ProjectionTypes { ProjectionTypesNone, ProjectionTypesCurvePlane, ProjectionTypesVector, ProjectionTypesView, ProjectionTypesXyz }
	Projection plane types. More...

enum	XyzTypes { XyzTypesX, XyzTypesY, XyzTypesZ }
	Enumeration for X, Y or Z projection plane. More...

Public Member Functions
NXOpen::GeometricUtilities::CombOptionsBuilder *	CombOptions ()
	Returns the comb display block options Created in NX7.0.0.

NXOpen::GeometricUtilities::CurveRangeBuilder *	CombRange ()
	Returns the comb range Created in NX7.0.0.

void	CreateDumbInflectionPoints ()
	Create inflection points Created in NX7.0.0.

void	CreateDumbPeakPoints ()
	Create peak points Created in NX7.0.0.

bool	DynamicProjection ()
	Returns the dynamic projection Created in NX7.0.0.

NXOpen::GeometricUtilities::CurveRangeBuilder *	GetCurveRange (int index)
	Returns the GeometricUtilities::CurveRangeBuilder object at a given index from the list.

int	GetCurveRangeListLength ()
	Get the number of GeometricUtilities::CurveRangeBuilder objects in the list.

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CalculationMethod	Method ()
	Returns the method Created in NX7.0.0.

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ProjectionTypes	Projection ()
	Returns the projection Created in NX7.0.0.

int	ReverseDirection ()
	Returns the reverse direction Created in NX7.0.0.

NXOpen::ScCollector *	SelectedCurves ()
	Returns the selected curves and/or edges Created in NX7.0.0.

void	SetDynamicProjection (bool dynamicProjection)
	Sets the dynamic projection Created in NX7.0.0.

void	SetMethod (NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CalculationMethod method)
	Sets the method Created in NX7.0.0.

void	SetProjection (NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ProjectionTypes projection)
	Sets the projection Created in NX7.0.0.

void	SetReverseDirection (int reverseDirection)
	Sets the reverse direction Created in NX7.0.0.

void	SetShowCombs (bool showCombs)
	Sets the show combs Created in NX7.0.0.

void	SetShowInflections (bool showInflections)
	Sets the show inflections Created in NX7.0.0.

void	SetShowMaxLabels (bool showMaxLabels)
	Sets the show max labels Created in NX7.0.1.

void	SetShowMinLabels (bool showMinLabels)
	Sets the show min labels Created in NX7.0.1.

void	SetShowPeaks (bool showPeaks)
	Sets the show peaks Created in NX7.0.0.

void	SetStyle (NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DisplayStyle style)
	Sets the style Created in NX7.0.0.

void	SetVector (NXOpen::Direction *vector)
	Sets the vector Created in NX7.0.0.

void	SetXyz (NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::XyzTypes xyz)
	Sets the xyz Created in NX7.0.0.

bool	ShowCombs ()
	Returns the show combs Created in NX7.0.0.

bool	ShowInflections ()
	Returns the show inflections Created in NX7.0.0.

bool	ShowMaxLabels ()
	Returns the show max labels Created in NX7.0.1.

bool	ShowMinLabels ()
	Returns the show min labels Created in NX7.0.1.

bool	ShowPeaks ()
	Returns the show peaks Created in NX7.0.0.

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DisplayStyle	Style ()
	Returns the style Created in NX7.0.0.

void	UpdateWorkView ()
	Update work view with a given view matrix Created in NX7.0.0.

NXOpen::Direction *	Vector ()
	Returns the vector Created in NX7.0.0.

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::XyzTypes	Xyz ()
	Returns the xyz Created in NX7.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link GeometricAnalysis::CurveCurvatureAnalysis GeometricAnalysis::CurveCurvatureAnalysis@endlink  builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateCurveCurvatureAnalysisBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateCurveCurvatureAnalysisBuilder @endlink  <br>

Default values.

Property

Value

CombRange.AnchorPosition

Start

DynamicProjection

1

Method

Curvature

Projection

None

ReverseDirection

0

ShowInflections

0

ShowPeaks

0

Style

Linear

Xyz

X

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CalculationMethod

Enumeration for needle calculation method.

Enumerator:

CalculationMethodCurvature	needle of curvature value
CalculationMethodRadiusofCurvature	needle of radius of curvature value

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DisplayStyle

Enumeration for needle display type.

Enumerator:

DisplayStyleLinear	linear needle
DisplayStyleLogarithmic	logarithmic needle

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::LabelValues

Enumeration for label computation method.

Enumerator:

LabelValuesCurvature	label showing curvature value
LabelValuesRadiusofCurvature	label showing radius of curvature value

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::NeedleDirection

Enumeration for needle direction type.

Enumerator:

NeedleDirectionInside	needle pointing inside
NeedleDirectionOutside	needle pointing outside

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ProjectionTypes

Projection plane types.

Enumerator:

ProjectionTypesNone	no projection
ProjectionTypesCurvePlane	best fit plane
ProjectionTypesVector	specify vector
ProjectionTypesView	view plane
ProjectionTypesXyz	specify x,y,z plane

enum NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::XyzTypes

Enumeration for X, Y or Z projection plane.

Enumerator:

XyzTypesX	x-axis plane
XyzTypesY	y-axis plane
XyzTypesZ	z-axis plane

Member Function Documentation

NXOpen::GeometricUtilities::CombOptionsBuilder* NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CombOptions ( )

Returns the comb display block options
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricUtilities::CurveRangeBuilder* NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CombRange ( )

Returns the comb range
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CreateDumbInflectionPoints ( )

Create inflection points
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CreateDumbPeakPoints ( )

Create peak points
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DynamicProjection ( )

Returns the dynamic projection
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricUtilities::CurveRangeBuilder* NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::GetCurveRange ( int index )

Returns the GeometricUtilities::CurveRangeBuilder object at a given index from the list.

Returns: Created in NX8.0.1.

License requirements : None

Parameters

index index

int NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::GetCurveRangeListLength ( )

Get the number of GeometricUtilities::CurveRangeBuilder objects in the list.

Returns: Created in NX8.0.1.

License requirements : None

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CalculationMethod NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::Method ( )

Returns the method
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ProjectionTypes NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::Projection ( )

Returns the projection
Created in NX7.0.0.

License requirements : None

int NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ReverseDirection ( )

Returns the reverse direction
Created in NX7.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SelectedCurves ( )

Returns the selected curves and/or edges
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetDynamicProjection ( bool dynamicProjection )

Sets the dynamic projection
Created in NX7.0.0.

License requirements : None

Parameters

dynamicProjection dynamicprojection

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetMethod ( NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::CalculationMethod method )

Sets the method
Created in NX7.0.0.

License requirements : None

Parameters

method method

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetProjection ( NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ProjectionTypes projection )

Sets the projection
Created in NX7.0.0.

License requirements : None

Parameters

projection projection

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetReverseDirection ( int reverseDirection )

Sets the reverse direction
Created in NX7.0.0.

License requirements : None

Parameters

reverseDirection reversedirection

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetShowCombs ( bool showCombs )

Sets the show combs
Created in NX7.0.0.

License requirements : None

Parameters

showCombs showcombs

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetShowInflections ( bool showInflections )

Sets the show inflections
Created in NX7.0.0.

License requirements : None

Parameters

showInflections showinflections

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetShowMaxLabels ( bool showMaxLabels )

Sets the show max labels
Created in NX7.0.1.

License requirements : None

Parameters

showMaxLabels showmaxlabels

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetShowMinLabels ( bool showMinLabels )

Sets the show min labels
Created in NX7.0.1.

License requirements : None

Parameters

showMinLabels showminlabels

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetShowPeaks ( bool showPeaks )

Sets the show peaks
Created in NX7.0.0.

License requirements : None

Parameters

showPeaks showpeaks

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetStyle ( NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DisplayStyle style )

Sets the style
Created in NX7.0.0.

License requirements : None

Parameters

style style

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetVector ( NXOpen::Direction * vector )

Sets the vector
Created in NX7.0.0.

License requirements : None

Parameters

vector vector

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::SetXyz ( NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::XyzTypes xyz )

Sets the xyz
Created in NX7.0.0.

License requirements : None

Parameters

xyz xyz

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ShowCombs ( )

Returns the show combs
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ShowInflections ( )

Returns the show inflections
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ShowMaxLabels ( )

Returns the show max labels
Created in NX7.0.1.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ShowMinLabels ( )

Returns the show min labels
Created in NX7.0.1.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::ShowPeaks ( )

Returns the show peaks
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::DisplayStyle NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::Style ( )

Returns the style
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::UpdateWorkView ( )

Update work view with a given view matrix
Created in NX7.0.0.

License requirements : None

NXOpen::Direction* NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::Vector ( )

Returns the vector
Created in NX7.0.0.

License requirements : None

NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::XyzTypes NXOpen::GeometricAnalysis::CurveCurvatureAnalysisBuilder::Xyz ( )

Returns the xyz
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

GeometricAnalysis_CurveCurvatureAnalysisBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
