NXOpen::GeneralScalarTable Class Reference

Represents a General M x N table of scalar (real) values. More...

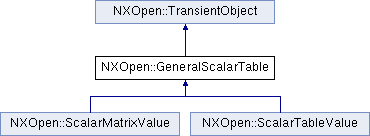

Inheritance diagram for NXOpen::GeneralScalarTable:

Public Member Functions
double	GetCellValue (int iRow, int iCol)
	Returns the cell value.
std::vector< double >	GetNthColumn (int iCol)
	Returns the entire Nth column of values.
NXOpen::Unit *	GetNthColumnUnits (int iCol)
	Returns the entire Nth column of values.
std::vector< double >	GetNthRow (int iRow)
	Returns the entire Nth row of values.
int	NumCols ()
	Returns the numuber of columns Created in NX6.0.0.
int	NumRows ()
	Returns the number of rows Created in NX6.0.0.
void	SetCellValue (int iRow, int iCol, double cellValue)
	Sets cell value Created in NX6.0.0.
void	SetNthColumn (int iCol, const std::vector< double > &columnValues)
	Sets the entire Nth column of values.
void	SetNthColumnUnits (int iCol, NXOpen::Unit *unitType)
	Sets the entire Nth column of values.
void	SetNthRow (int iRow, const std::vector< double > &rowValues)
	Sets the entire Nth row of values.
void	SetTableSize (int nRows, int nCols, double dDefaultValue)
	Returns the table size Created in NX6.0.0.
virtual	~GeneralScalarTable ()
	Destroys the object Created in NX6.0.0.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents a General M x N table of scalar (real) values.

This is an abstract class

Created in NX6.0.0.

Constructor & Destructor Documentation

virtual NXOpen::GeneralScalarTable::~GeneralScalarTable ( )

virtual

Destroys the object
Created in NX6.0.0.

License requirements : None

Member Function Documentation

double NXOpen::GeneralScalarTable::GetCellValue	(	int	iRow,
		int	iCol
	)

Returns the cell value.

Returns

Created in NX6.0.0.

License requirements : None

Parameters

iRow	Row Index
iCol	Column Index

std::vector<double> NXOpen::GeneralScalarTable::GetNthColumn

(

int

iCol

)

Returns the entire Nth column of values.

Output array will be as long as the number of rows GeneralScalarTable::NumRows

Returns

Column Values
Created in NX6.0.0.

License requirements : None

Parameters

iCol	Column Index

NXOpen::Unit* NXOpen::GeneralScalarTable::GetNthColumnUnits

(

int

iCol

)

Returns the entire Nth column of values.

Output array will be as long as the number of rows GeneralScalarTable::NumRows

Returns

Unit type for the column NULL if the Column has no units
Created in NX6.0.0.

License requirements : None

Parameters

iCol	Column Index

std::vector<double> NXOpen::GeneralScalarTable::GetNthRow

(

int

iRow

)

Returns the entire Nth row of values.

Output array will be as long as the number of columns GeneralScalarTable::NumCols

Returns

Row Values
Created in NX6.0.0.

License requirements : None

Parameters

iRow

Row Index

int NXOpen::GeneralScalarTable::NumCols

(

)

Returns the numuber of columns
Created in NX6.0.0.

License requirements : None

int NXOpen::GeneralScalarTable::NumRows

(

)

Returns the number of rows
Created in NX6.0.0.

License requirements : None

void NXOpen::GeneralScalarTable::SetCellValue	(	int	iRow,
		int	iCol,
		double	cellValue
	)

Sets cell value
Created in NX6.0.0.

License requirements : None

Parameters

iRow	Row Index
iCol	Column Index
cellValue	Value to store in the cell

void NXOpen::GeneralScalarTable::SetNthColumn	(	int	iCol,
		const std::vector< double > &	columnValues
	)

Sets the entire Nth column of values.

Input array must be as long as the number of rows GeneralScalarTable::NumRows
Created in NX6.0.0.

License requirements : None

Parameters

iCol	Column Index
columnValues	Column values

void NXOpen::GeneralScalarTable::SetNthColumnUnits	(	int	iCol,
		NXOpen::Unit *	unitType
	)

Sets the entire Nth column of values.

Input array must be as long as the number of rows GeneralScalarTable::NumRows
Created in NX6.0.0.

License requirements : None

Parameters

iCol	Column Index
unitType	Unit type for the column

void NXOpen::GeneralScalarTable::SetNthRow	(	int	iRow,
		const std::vector< double > &	rowValues
	)

Sets the entire Nth row of values.

Input array must be as long as the number of columns GeneralScalarTable::NumCols
Created in NX6.0.0.

License requirements : None

Parameters

iRow	Row Index
rowValues	Row Values

void NXOpen::GeneralScalarTable::SetTableSize	(	int	nRows,
		int	nCols,
		double	dDefaultValue
	)

Returns the table size
Created in NX6.0.0.

License requirements : None

Parameters

nRows	Number of Rows
nCols	Number of Columns
dDefaultValue	Default Value

---

The documentation for this class was generated from the following file:

• GeneralScalarTable.hxx
