Builder for "object attribute" used in formboard which enbles user to create annotation in drafting functionality. More...

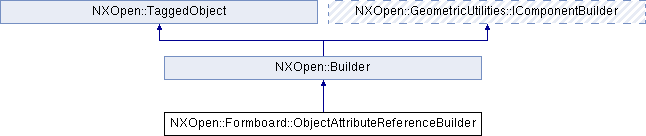

Inheritance diagram for NXOpen::Formboard::ObjectAttributeReferenceBuilder:

Public Types
enum	LeaderType { LeaderTypeNone, LeaderTypeSingleLocation, LeaderTypeStartandEndLocations }
	Enum which defines types of leader user wants to associate with the annotation. More...

Public Member Functions
NXOpen::Annotations::LeaderBuilder *	AnnotLeader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX7.5.0.

NXOpen::Annotations::OriginBuilder *	CompOrigin ()
	Returns the comp origin Created in NX7.5.0.

NXOpen::Formboard::ObjectAttributeReferenceBuilder::LeaderType	EnumType ()
	Returns the enum type Created in NX7.5.0.

NXOpen::SelectNXObject *	ObjectSelection ()
	Returns the object selected by user to associated annotation Created in NX7.5.0.

void	SetEnumType (NXOpen::Formboard::ObjectAttributeReferenceBuilder::LeaderType enumType)
	Sets the enum type Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder for "object attribute" used in formboard which enbles user to create annotation in drafting functionality.

It creates a tabular note and displays object attributes of a single object selected by user.
To create a new instance of this class, use Formboard::FormboardManager::CreateObjectAttributeReferenceBuilder
Default values.

Property

Value

EnumType

None

Created in NX7.5.0.

Member Enumeration Documentation

Enum which defines types of leader user wants to associate with the annotation.

User can either create no leader or one or two leader for the annotation when picking the associated object.

Enumerator:

LeaderTypeNone	No leader for annotation of selected object.
LeaderTypeSingleLocation	Single leader for the annotation of selected object.
LeaderTypeStartandEndLocations	Two leaders for annotation with start and end location.

NXOpen::Annotations::LeaderBuilder* NXOpen::Formboard::ObjectAttributeReferenceBuilder::AnnotLeader ( )

Returns the Annotations::LeaderBuilder for the annotation
Created in NX7.5.0.
